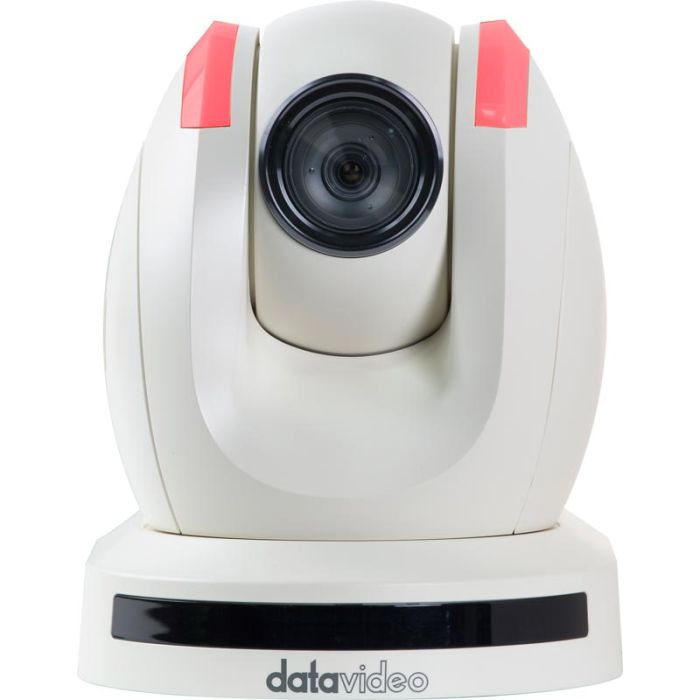

Datavideo PTC-150TW HD/SD-SDI HDBaseT PTZ Camera

SKU

PTC-150TW

Request for Price

Fast, Quiet HD/SD-SDI PTZ Camera
HDBaseT Compatibility
1/2.8" Type CMOS Sensor
Includes HDBaseT Receiver
Captures Up to 1080p HD Video
f/1.6-4.7 Lens with Motorized 30x Zoom
HDBaseT, RS-422, and IR Remote Control
HDBaseT, HDMI, 3G-SDI & Composite Ports
WDR / Backlight Compensation
50 Programmable Preset Positions

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The white PTC-150TL HD/SD HDBaseT PTZ Camera (with HDBaseT Receiver) from Datavideocaptures up to 1080p HD video and features HDBaseT technology for remotely controlling the camera via Cat 6 or above cable. This camera unit includes the HBT-11 HDBaseT receiver box.

PTC-150TL video capture functions include wide dynamic range, backlight compensation, and digital noise reduction for detailed imaging. Features include 30x optical zoom, 50 programmable presets, and an IR cut filter for optimal low-light performance. Adjust the camera to your choice of multiple mounting options with the help of the image mirror and rotation functions.

For multi-camera shoots, the built-in green/red tally light can be used to signal when the camera is active. Virtual studio applications benefit from the PTC-150TL's support for real-time position reporting on a per frame basis. The PTC-150TL camera supports Sony VISCA protocol for PTZ control using RS-422 interface over the unit's RJ45 port.

Features

Capture up to 1080p HD video with wide dynamic range, and backlight compensation
The 30x, 4.3 to 129mm, f/1.6 to 4.7 zoom lens captures detail from near or far positions
HDBaseT compatibility enables cable video, power, control, and tally using a single Cat 6 cable, and the included HBT-11 HDBaseT receiver box
Create up to 50 preset pan, tilt, and zoom position combinations
An IR cut filter, and digital noise reduction enhances capture, even in low-light environments
Auto/manual iris and white balance options enable individual calibration for multi-camera setups
Built-in dual tally with red and green LEDs
Compatible with the Datavideo RMC-180 camera control unit
Day and night image-compensation functions
Firmware updates via USB port
