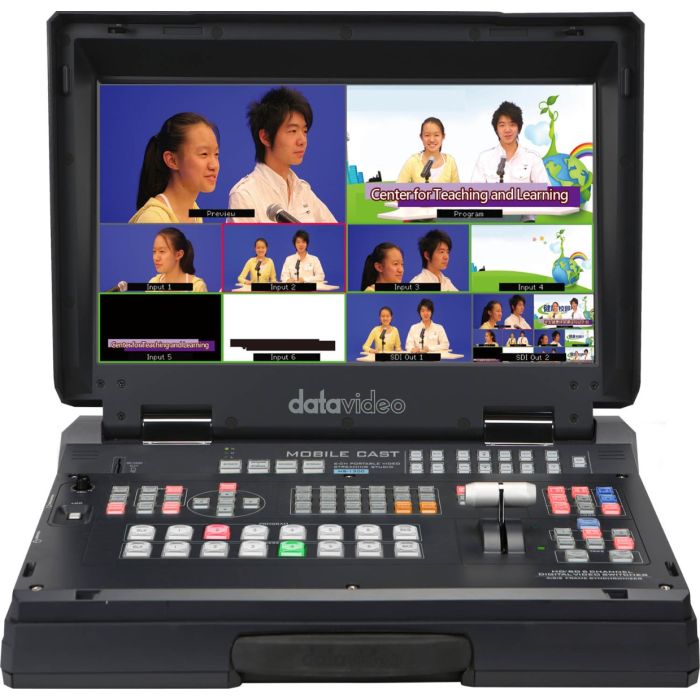

Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio

SKU
HS-1300
Request for Price

Product Highlights :

  • Switch, Stream, and Record HD Video
  • 6 x HD Video Inputs
  • XLR Audio Inputs
  • 1 x M/E Bus


Datavideo

The HS-1300 brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable "briefcase" design. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time.



The compact design suited for medium-sized productions

The HS-1300 offers a small footprint and supports up to 6 video inputs in HDMI and SDI, and 5 Video Outputs: ( SDI x 2 + HDMI x 3)



Built-in H.264 recorder for SD cards

 The HS-1300 comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website.



Streaming to Facebook Live, YouTube, Twitch, and more

The built-in H.264 encoder allows you to stream your show to virtually any CDN like Facebook, YouTube or Twitch in no time. It also supports different bitrate for recording to SD card and streaming
function.



Built-in virtual set backgrounds

Choose between a variety of pre-saved virtual set backgrounds.



Built-in 9 animations

Choose between a variety of pre-saved animated stinger transitions for your show.

User memories

You can save a complex process into a user memory, turning multiple tasks into a one-finger job.



17.3'' LED Backlit Monitor

 Built-in Monitor Display. 17.3” HD TFT LED backlit monior with resolution 1600x900 pix.



HS-1300 - Specification

More Information
Video Standard:HD
Video Format:1080i 50/59.94/60Hz
720p 50/59.94/60Hz
Input Routable / Crosspoint:All 6, repeatable
Video Input:4 x HD-SDI
2 x HDMI
Computer Graphic Interface:2 via HDMI
Down-converted Output:N/A
Video Output:3x HDMI
2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or Multiview
Audio Input:2x Balanced XLR
Audio Output:1x Stereo headphone
Digital Embedded Audio Support Input:Input 2 channels, Output 2 channels
A+V Switching:Yes
USK:2x USK support Chromakey
DSK:2, support Lumakey & Linear key (Key / Fill)
Picture in Picture:1
Logo Insertion:N/A
Built-in Audio Mixer:N/A
Built-in Monitor Display:17.3” HD TFT LED backlit, 1600x900 pix
Built-in Intercom & Tally:N/A
Streaming Video Encode:H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps
Streaming Audio Encode:AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit
Streaming Protocol:TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP
RTMP/RTMPS (Publish)
Streaming Control:Web browser UI for configuration and control Socket commands
Recording File System:FAT, exFAT, NTFS
Recording File Format:MP4
Recording Setting Control:Web UI for system configuration and control
Special Features:Streaming encoder and recorder 2 chromakey virtual studio
9 stinger transition and 30 virtual sets included
Dimension (LxWxH):455 x 355 x 134 mm
Weight:16.3 Lbs (7.4 kg), Reinforce Plastic Case
Power:DC 12V, 5A
Operating Temp. Range:0~40 °C
Options:CB-22H/23H/46/47/60/61/62
What's in the Box:1 x HS-1300 Product
1 x AD Switch DC 12V with AC Cord 1 x Thank You Card
What's in the Box:

  • 1 x HS-1300 Product
  • 1 x AD Switch DC 12V with AC Cord
  • 1 x Thank You Card
