Datavideo KMU-200 4K Multicamera Touchscreen Switcher with Streaming and Recording

SKU
KMU-200
image-icon
$3,499.00
Add to Wish List Add to Compare
Email

Product Highlights:

  • Region-of-Interest Touchscreen Switcher
  • Streaming Encoder Recorder
  • Supports 16:9 and 9:16
  • Create Four HD Shots from UHD Video
  • Traditional Switcher Tools
  • Analog Audio Inputs

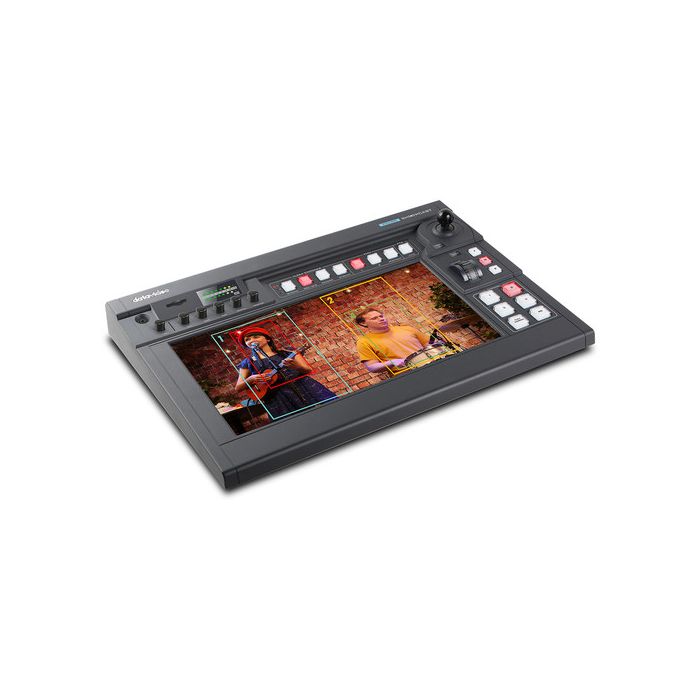

main product photo

The Datavideo 4K Multicamera Touchscreen Switcher with Streaming and Recording is a touchscreen streaming switcher that can simultaneously record to an SD card. It supports programming in 16:9 or 9:16, so you can stream for traditional viewing, or for portrait mode viewing. It features one each UHD 4K and HD HDMI input. The switcher allows you to select regions of interest from the 4K video, essentially cutting four shots out of the UHD video, to use as your four inputs to switch between.

The switcher combines touchscreen functionality with traditional switcher tools such as backlit push buttons, a joystick, and a zoom scroll wheel to provide an all-in-one switching device. It features 3-pin XLR and RCA inputs for analog audio input. The built-in encoder supports H.264, enabling you to stream to any CDN-compatible site, and the switcher is compatible with optional OBS live streaming software. You can power the switcher using the included AC to DC power adapter, or via 12 VDC batteries via the 4-pin XLR power port.

Streaming

Stream directly to Facebook Live and YouTube Live

Touchscreen Switcher

Featuring a 14" capacitance touchscreen, the KMU-200 can be used in either a horizontal or vertical orientation

Physical Controls

Integrated push buttons, joystick, and zoom wheel provide traditional switcher functionality

Four Camera Shots from Single 4K Input

The KMU-200 lets you create four individual regions of interest from a single UHD 4K input video and switch between the regions of interest as if they were four separate inputs

Regions of Interest

The regions of interest can intersect with each other, including using the full image as one source, without affecting the capabilities of the switcher

Secondary HD Input

A second HDMI input supports 1080p video, providing you an option to use a second camera or input from a computer

6-Channel Switching

The six dedicated backlit buttons allow you to set your region of interest as your shot; two of the buttons are dedicated for full screen and computer output

HDMI Inputs

All HDMI inputs feature built-in strain-relief bars, reducing the chances of cables becoming unplugged

Audio

The internal audio mixer supports four audio channels and embedded audio sources
