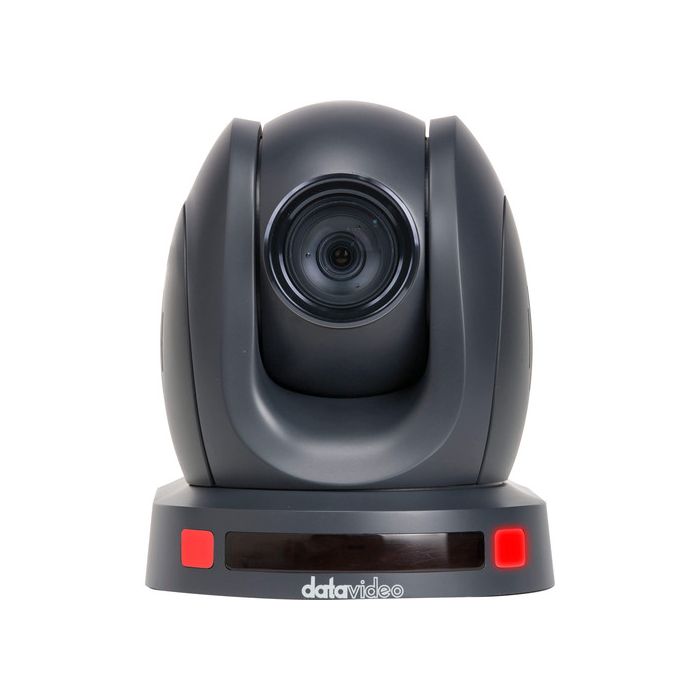

Datavideo PTC-140 HD PTZ Camera

SKU
PTC-140
Request for Price

Product Highlights :

  • 1/2.8" CMOS Sensor
  • Resolution up to 1920x1080
  • 20x Optical, 10x Digital Zoom
  • 255 Preset Positions


Datavideo PTC-140 HD PTZ Camera with 20x Optical Zoom from Datavideo supports frame rates and resolutions as high as 1080p60 as well as 1080i60 and 720p60, and it features a 1/2.8" CMOS sensor with 2.0 MP resolution. The built-in zoom lens features an optical zoom range of 20x, and you can zoom in further with the 10x digital zoom.

With 255 programmable preset positions, you can set the camera to rapidly move to between positions using the IP, RS-232, or IR control. The camera compresses using either or both the H.264 and H.265, as its on-board encoder is capable of encoding two streams at the same time. You can stream live using RTSP or RTMP protocols. The camera supports external audio via a 3.5mm stereo line-level input, and you can mount the camera via the 1/4"-20 threaded mounting hole.

Stunning Full HD resolution

The PTC-140 features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps.

20x Optical Zoom, 10x Digital Zoom

The PTC-140's 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots.

Advanced 2D/3D noise reduction function

Supports advanced digital noise reduction, even in less-than-perfect lighting conditions can shoot clear and smooth image

H.264/H.265 video compression for streaming

With built-in streaming encoder, can encode up to 2 simultaneous streams to any cloud service.

Dark or Light Body

The PTC-140 is available in dark gray or white (coming soon) to remain inconspicuous in permanent setups.

Simple multi-camera control at your fingertips

With its ergonomic joystick and tactile button layout, the RMC-180 makes it easy to set up and control up to four Datavideo PTC-140 cameras for any live video production.

Remote control and preview by web user interface

The web user interface provides preview, pan-tilt-zoom control and configurations setting in IP mode.

RMC-300C can control up to 24 PTC-140 cameras

Works together with an iPad or Android tablet to control up to 24 Datavideo PTC-140 cameras.

PTC-140 - Specification

More Information
General
Video format:1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor:1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.):2.07 Mega pixels
S/N Ratio:>55dB
Min. Illumination:0.5Lux (F1.8, AGC ON)
Electronic Shutter:Auto / Manual
Zoom Ratio:20x Optical Zoom, 10x Digital Zoom
Gamma Control:Off / Normal
Iris Control:Auto / Manual
Digital Noise Reductions:Yes
On-Screen Display (OSD):English, Simplified Chinese
White Balance:Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control:Auto / Manual
Mirror / Flip Image:Yes
Focus Mode:Auto / Manual
Panning / Tilting Range:Pan: 340° , Tilt: +90° to -30°
Panning / Tilting Speed:Pan: 0.1~60°/sec
Tilt: 0.1~30°/sec
Preset:255 Position
Focal Length:f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5
Field of View (Horizontal, Wide):Approx. 54.7° (WIDE END) / 3.3° (TELE END)
Image Compensation:Backlight Compensation
Video Output:HDMI x 1
SDI x 1
Audio Input:3.5mm Line in
Tally LED:Dual color (Red, Green)
Filter:M52.0 x 0.75 Thread with UV Protection
Protocol:VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400bps
DVIP
Remote Control Interface and Transmit Distance:RJ-45: for IP control (DVIP)
RS-232: Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT)
RS-485
Video Compression Format:H.264, H.265, Dual stream output
Audio Compression Format:AAC/MP3/PCM Audio compression
HD IP Interface:100M IP port(100BASE-TX); Support DVIP
Network Protocol:RTSP, RTMP
F/W Update:Ethernet
IR Control:Yes
Camera Control Unit:RMC-180/RMC-300C
Tripod Mount:1/4-20 UNC
Options:WM-1
Color:Black/White
Dimension (LxWxH):156 x 182 x 186 mm
Weight:1.6 kg
Operating Temp. Range:0~40 °C
Power:DC 12V 12W
What's in the Box:1 x PTC-140 Unit
1 x IR remote controller
1 x PTC-140 Thank You Card
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x UV Filter
1 x DC 12V Power Adaptor
1 x Power Cord
1 x A tightrope
1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable
1 x RS-485 2 Pin Connector

Items Included:
  • 1 x PTC-140 Unit
  • 1 x IR remote controller
  • 1 x PTC-140 Thank You Card
  • 1 x Ceiling mount bracket-A
  • 1 x Ceiling mount bracket -B
  • 6 x Ceiling mount bracket screw M3*4mm
  • 1 x UV Filter
  • 1 x DC 12V Power Adaptor
  • 1 x Power Cord
  • 1 x A tightrope
  • 1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable
  • 1 x RS-485 2 Pin Connector
