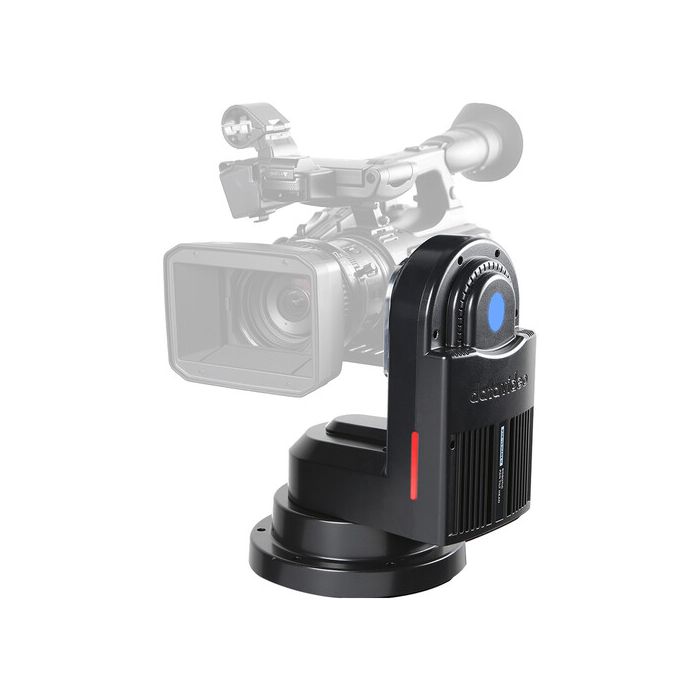

Datavideo PTR-10 MK II Robotic Pan Tilt Head (DVIP)

SKU
PTR-10 MK II
$2,199.00

Product Highlights:

  • Turn Virtually Any Camera into a PTZ
  • Control Unit via IP, IR Remote, or VISCA
  • Control Camera via IP or RS-422
  • Control Camera Lens by LANC
  • Provides Power to the Camera
  • Built-In Tally Light
  • Mounts to Tripod, Wall, or Ceiling

Bring the remote control functionality to your own non-PTZ camera with the PTR-10 MK II Robotic Pan Tilt Head from Datavideo. More than just a motorized head, the PTR-10 MK II interfaces with PTZ-compatible control systems, allowing you the same kind of experience. From pan and tilt control to powering your camera and controlling its zoom lens via LANC or other protocols, this head is a compact PTZ solution for cameras weighing up to 8 lb.

The head easily mounts to most tripod legs and with an optional bracket, it can be mounted on a wall or ceiling. It can send your camera's video output to external video displays, switchers, and controllers such as the RMC-180 series or RMC-300A while also receiving control information for pan and tilt operations via VISCA, DVIP, RS-422, or an included IR remote control. The head is equipped with LED indicators, a tally light, and a remote port that allows you to adjust the zoom and focus of select camera lenses. It is powered by the included 12 VDC power adapter and can supply power to the attached camera or accessories, using its D-Tap output with selectable power voltage and includes a D-Tap to lockable camera power connector for use with a variety of Datavideo block cameras.

  • Multiple signal interfaces such as 3G-SDI, HDMI, RS-232, RS-422, tally, and LANC
  • Sturdy aluminum construction
  • Camera pan, tilt, and zoom control
  • RS-232, RS-422, VISCA, DVIP, and IR remote control
  • Compatible with RMC-180 and RMC-300A controllers
  • Built-in tally light
  • Ideal for live events
  • Zoom control support for Datavideo block cameras and other cameras
  • Control a variety of Sony, Panasonic, Canon, and JVC cameras
  • D-Tap power output to power camera and accessories
  • DIP switch to change D-Tap voltage
  • Plate with 1/4"-20 thread for camera mounting

PTR-10 MK II - Specification

More Information
General
Pan & Tilt Range:Pan: 340°
Tilt: ±4
Pan & Tilt Speed:Pan: 0.12~15°/Sec
Tilt: 0.06~10°/S
Preset Positions:Pan: 50
Tilt: 50
Load Capacity:8.82 lb / 4 kg
Supported Video Formats:SDI: 6G
HDMI: 1.4
Control:Protocols
Visca
DVIP

Units
IR
RMC-180 (Not Included)
RMC-300A (Not Included)

Output
RS-232
RS-422
BX-Lens
LANC
Connections:Video
SDI Input: 1 x BNC
SDI Output: 1 x BNC
HDMI Input: 1 x Type-A
HDMI Output: 1 x Type-A

Control
Remote Port for Camera: 1 x 8-Pin Mini-DIN
RS-232/422 Input: 1 x RJ45
RS-232/422 Output: 1 x RJ45
TAlly: 1 x port
Zoom Sensor: 1 x 4-Pin Mini-DINDC Out: 1 x D-Tap
Power:Input Voltage
12 to 18 VDC

Draw
With Camera: 5A
Without Camera: 3A

Output Voltage
12, 10, 8.4, 7.4

Output Power
24 W Max
Environmental:Operating
Temp: 32 to 104°F / 0 to 40°C
Humidity: 10 to 80%

Storage
Temp: 14 to 140°F / -10 to 60°C
Humidity: 5 to
Dimensions:11.81 x 9.06 x 7.48" / 30 x 23 x 19 cm
Weight:7.5 lb / 3.4 kg
Packaging Info
Package Weight:11.53 lb
Box Dimensions (LxWxH):15 x 12.9 x 12.1"

Items Included:

  • Datavideo PTR-10 MK II Robotic Pan Tilt Head (DVIP)
  • 12 VDC Power Adapter
  • AC Power Cord
  • IR Remote Control
  • D-Tap Cable with Locking Connector to Head
  • HDMI Cable
  • BNC Cable (SDI)
  • 2.5mm Mini Jack to 8-Pin Mini Din Cable (Remote)
  • 1/4"-20 Tie-Down Screw (Short)
  • 2 x 1/4"-20 Tie-Down Screw (Long)
  • 1/4"-20 to 3/8"-16 Adapter Bushing
  • Limited 3-Year Warranty
