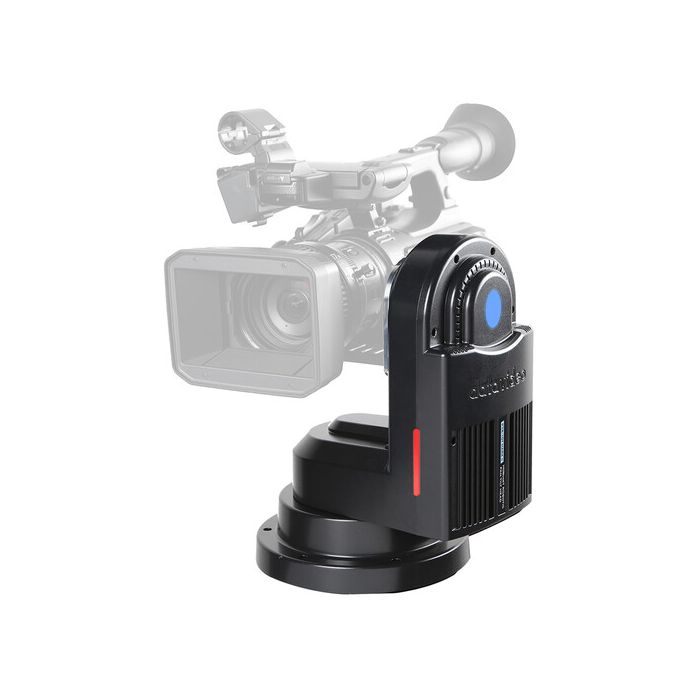

Datavideo PTR-10T Mark II Robotic Pan and Tilt Head (HDBaseT)


Product Highlights:

  • Tripod, Wall, and Ceiling Mountable
  • Pans and Tilts PTZ Your Camera Remotely
  • HDBaseT Video Output and Control
  • Supports up to 8.8 lb, Tally Light
  • 3G-SDI and HDMI Video Input/Outputs
  • RS-232/422 Serial Support
  • D-Tap Power Output, Selectable Voltage

Mount and remotely control a camera rig weighing up to 8.8 lb with the PTR-10T Mark II Robotic Pan and Tilt Head from Datavideo. The head can be mounted onto a tripod, wall, or ceiling, allowing you to maneuver your camera in different positions. It can send and receive video via the HDBaseT port to external video switchers and controllers, such as the RMC-180 series, RMC-300A, or HS-1600T, while also receiving control information for pan and tilt operations. It can also receive video from your camera via the 3G-SDI or HDMI input and send the video via 3G-SDI and HDMI outputs to external devices.

The head is equipped with LED indicators, a tally light, and a remote port that allows you to adjust the zoom and focus of select camera lenses. You can also utilize a remote controller using its RS-232 and RS-422 serial control ports, DVIP control via its RJ45 LAN port, or control using an IR remote. It is powered by the included 12 VDC power adapter and can supply power to the attached camera or accessories using its D-Tap output with selectable power voltage.

  • Multiple signal interfaces such as 3G-SDI, HDMI, RS-232, RS-422, HDBaseT, tally, and LANC
  • Sturdy aluminum construction
  • Camera pan, tilt, and zoom control
  • RS-232, RS-422, VISCA, DVIP, and IR remote control
  • Compatible with RMC-180, RMC-300A, RMC-300C, HS-1600T, and ShowCast 100 controllers
  • Built-in tally light
  • Ideal for live events
  • Zoom control support for Datavideo block cameras and other cameras
  • D-Tap power output to power camera and accessories
  • Control a variety of Sony, Panasonic, Canon, and JVC cameras
  • DIP switch to change voltage
  • Plate with 1/4"-20 thread for camera mounting

PTR-10T MK II - Specification

More Information
Video Connectors:Video In:
1 x 3G-SDI
1 x HDMI

1 x RJ45 HDBaseT Video/Control Port
Video Output Connectors:1 x 3G-SDI
1 x HDMI
Serial Connector:1 x RJ45 RS-422 Output Control Port
1 x 9-Pin Sub-D RS-232 Output Control (Not in Use)
Other I/O:1 x Remote Port, Zoom and Focus Camera Control
1 x USB, Firmware Upgrade
1 x 3.5 mm Jack, Tally In
1 x 3.5 mm Jack, Tally Out
Status:4 x LEDs
Output Resolution:2160p: 29.97/25
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
Pan & Tilt Range:Pan: 340°
Tilt: ± 4
Pan & Tilt Speed:Pan: 0.2 to 15° Seconds
Tilt: 0.1 to 10° Secon
Control Protocol:Sony VISCA and DVIP
Remote Control Distance:RS-422: 3937' / 1200 m
DVIP: 328' / 100 m
Maximum Load Capacity:8.8 lb / 4 kg
Power Requirements:Without Camera: 12 to 18 VDC, 3 A
With Camera: 12 to 18 VDC, 5 A
Power Output:12, 10, 8.4, 7.4 VDC, 24 W Maximum (Selectable)
Power Input:1 x DC Screw Barrel Jack, 12 VDC Power Input
1 x D-Tap Power Output
RJ45 Power-over-Ethernet
Material of Construction:Aluminum
Temperature:Operating: 32 to 104°F / 0 to 40°C
Storage: 14 to 140°F / -10 to 6
Operating Humidity:Operating: 10 to 80%
Storage: 5 to 80%
Dimensions:11.8 x 9.1 x 7.5" / 30 x 23 x 19 cm
Weight:7.5 lb / 3.4 kg
Packaging Info
Package Weight:11.865 lb
Box Dimensions (LxWxH):15 x 12.8 x 12.1"

Items Included:

  • Datavideo PTR-10T Mark II Robotic Pan and Tilt Head (HDBaseT)
  • IR Remote
  • AC Adapter
  • AC Cable
  • D-Tap to DC Cable
  • HDMI Cable
  • SDI Cable
  • 2.5mm to 8-Pin Mini DIN Remote Cable
  • 2 x Screw (1/4" x 14mm)
  • Screw (1/4" x 10mm)
  • Screw Adapter (1/4"-20 to 3/8"-16)
  • Limited 1-Year Warranty (Total of 3 Years upon Registration)
