Datavideo SEB-1200 6 Input Switcher SE-1200MU and RMC-260 Controller Bundle

Datavideo
SKU
SEB-1200
image-icon
Request for Price
Add to Compare
Email

Product Highlights :

  • 6-Input HDMI/HD-SDI Video Switcher
  • 1080i and 720p Input-Compatible
  • Multi-View HDMI Output
  • Chroma & Luma-Key Functions

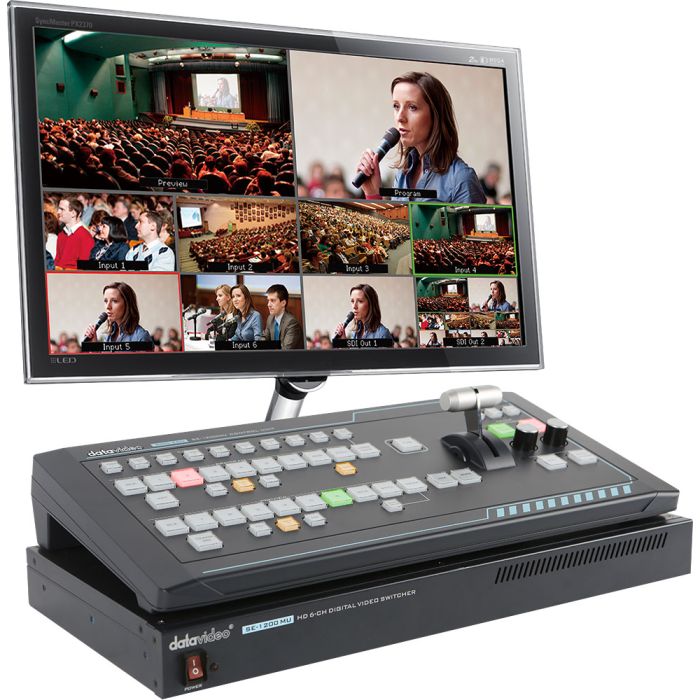

main product photo

Datavideo SEB-1200 Bundle is comprised of the SE-1200MU 6-Input HD Video Switcher plus the RMC-260 Controller. The two components of this bundle enable you to control multiple video sources and outputs by using an ergonomically-designed switcher. Employed in lieu of computer-based control, the RMC-260 Controller brings the solidity of a tactile interface to your use of the SE-1200MU 6-Input Switcher. The controller features clearly-labeled, LED-lit buttons and knobs, XPT (cross-point assignment), a sloped interface, and a T-bar lever. The SE-1200MU 6-Input Switcher features four HD-SDI and two HDMI inputs, two HD-SDI outputs, two assignable HDMI multi-view outputs, and chroma and luma key functions.

Write Your Own Review
You're reviewing:Datavideo SEB-1200 6 Input Switcher SE-1200MU and RMC-260 Controller Bundle
Your Rating
  • Datavideo SE-1200MU 6 Input HD Digital Video Switcher
  • Datavideo RMC-260 Remote Control for SE-1200MU Digital Video Switcher

SEB-1200 - Specification

More Information
SE-1200MU
Channels:6
Video Inputs:4 x HD-SDI
2 x HDMI
Video Outputs:4 x HD-SDI
2 x HDMI (Multi-View PVW)
Supported Input Resolutions:1080i 50/59.94/60
720p 50/59.94/60
Audio Inputs:2 x XLR (1 stereo pair)
Audio Outputs:SDI embedded
Embedded Audio:Supported
Tally Output:1 x D-sub 15-pin, dual color
Control:RS-422
Ethernet (PC control with free Windows software)
Power:12 VDC, 30 W
Power Adapter:100 to 240 VAC
Package Weight:9.45 lb
Box Dimensions (LxWxH):21.3 x 14.6 x 6.7"
RMC-260
Communication Interface:RS-232
Baud Rate:19200 ODD
Firmware Updates:Via USB
Certification:CE, FCC
Power Supply:Input: 100 to 240 VAC Switching adapter
Output: 12 VDC
Power Consumption:5 W
Operating Temperature:32 to 122°F / 0 to 50°C
Storage Humidity:10 to 90% (Non-condensing)
Dimensions:16.9 x 8.5 x 2.7" / 43.0 x 21.7 x 6.9 cm
Weight:2.8 lb / 1.3 kg
Package Weight:5.6 lb
Box Dimensions (LxWxH):21.6 x 11.4 x 8.9"
