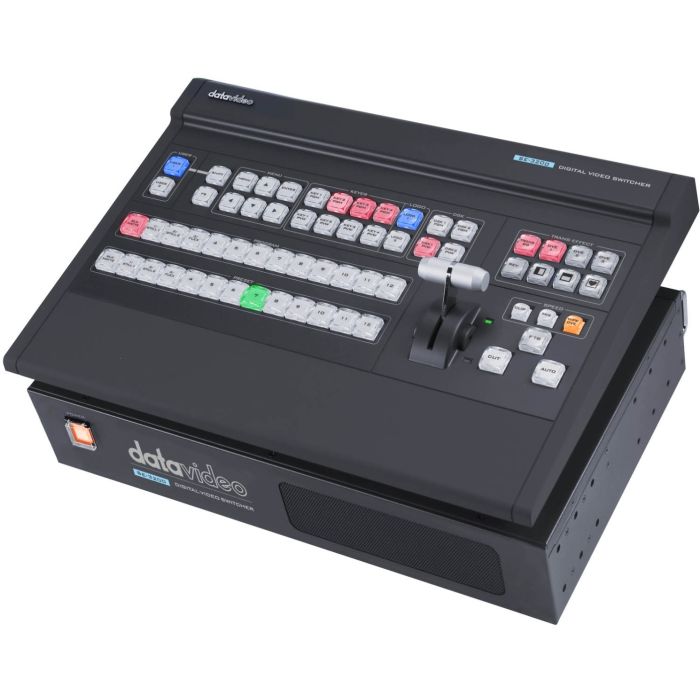

Datavideo SE-3200 HD 12-Channel Digital Video Switcher

Datavideo SE-3200 is a 12-channel digital video switcher with 1080p/60 (3G) high-definition support, 12 digital inputs including 8 x SDI and 4 x HDMI inputs with embedded audio, 6 x SDI plus 3 x HDMI outputs for connecting an HD recorder and external monitors.

Completely customizable 12 input full HD production switcher

The SE-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (6x SDI+3x HDMI) to help you produce a sophisticated and professional live event.

Supports full HD 1080P with scaling on each available input

The SE-3200 is Datavideo's top of the line switcher with full 1080p support on every input and output, and not only has this, but 3200 series also has a built-in input scaler, for up and down conversion on each available input.

Create stunning video effects with advanced features

 Advanced features include 8x PIPs, FlexSource, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent Animated logos, Stinger Transitions and a 2D Transition DVE.

Built-in Stinger Transitions and backgrounds

 Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects, and you can also import your own Stinger Transitions & Animated Logos.

Included CG Title Creator

 All 3200 series switchers have built-in support for Datavideo CG software. This unique feature converts a regular HDMI output of a PC or laptop into a fully-fledged CG interface for use with Datavideo’s CG suites. Free CG-200 software included.

Custom Multiview layout & dual Multiview output

 Connect up to two displays to all 3200 series switchers for a dual Multiview output. Choose from many pre-defined multi-view layouts or define your own!

Flex Source to go that extra mile

Flex Source gives you nearly the power of a 2 M/E switcher, in a 1 M/E switcher! Create a complete extra layer of image composition. These complex setups can be saved and recalled with the touch of a button. The Flex Source provides 4 PIPs with 3D Borders, with Background layer and an additional Key Layer allowing many sophisticated

4 Chromakeyers for a complete virtual studio experience

 Up to 4 channels of switchable chromakey with our unique “Key tie” functionality. Create a complete 4 channel virtual studio and enjoy our super easy to use automatic chromakey functions.

Up to 8 picture-in-picture frames with unique 3D borders

Create up to 8 picture-in-picture frames that can be active at the same time. Picture-in-picture frames are fully adjustable in size and position and have various border options including our unique 3D borders.

Crosspoint assignment for ultimate flexibility

Crosspoint assignment (XPT) grants you the option of rerouting each physical in and output to any of the available buttons. No more ducking under the table for quick rerouting!
