Datavideo TLM-700HD 7" SD/HD LCD Monitor with V-Mount Battery Adapter

SKU
TLM-700HD
image-icon
$649.00
Add to Wish List Add to Compare
Email

Product Highlights:

  • This monitor offers a 7" 16:9 LCD widescreen panel
  • Viewing angles: vertical +60°/-40° horizontal +/-60°
  • Supported inputs: HD/SD-SDI, YUV, CV, and HDMI
  • Other features include: internal color bars, blue-only function, safe-area indicator, and VITC time-code display
  • An audio indicator is included for SDI and HDMI signal.

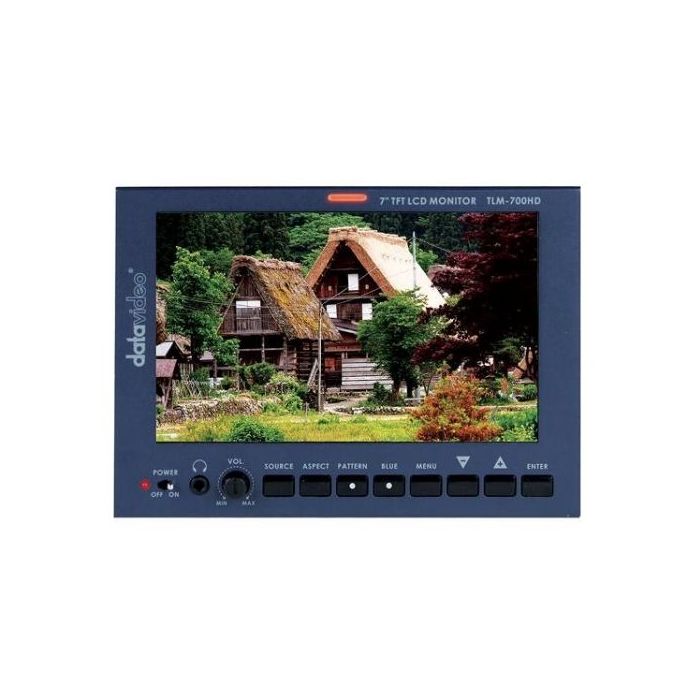

main product photo

The TLM-700HD 7" SD/HD LCD Monitor with V-Mount Battery Adapter from Datavideo is equally well suited for use in the field or studio. This unit automatically switches between PAL and NTSC standards, and can be powered with 12VDC or AC power. It also features a standard V-mount that allows you to use a universal battery from a variety of manufacturers.

  • This monitor offers a 7" 16:9 LCD widescreen panel
  • Viewing angles: vertical +60°/-40° horizontal +/-60°
  • Supported inputs: HD/SD-SDI, YUV, CV, and HDMI
  • Other features include: internal color bars, blue-only function, safe-area indicator, and VITC time-code display
  • An audio indicator is included for SDI and HDMI signals
  • The monitor offers a dual-color tally-light indicator
  • Adjustable parameters include: brightness, contrast, color, and tint
  • NTSC and PAL are supported with an auto-switching feature
  • Aspect ratio is selectable: 16:9 or 4:3
Write Your Own Review
You're reviewing:Datavideo TLM-700HD 7" SD/HD LCD Monitor with V-Mount Battery Adapter
Your Rating

Items Included:

  • Datavideo TLM-700HD 7" SD/HD LCD Monitor with V-Mount Battery Adapter
  • 12VDC Power Supply
  • 2-Year Warranty Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase
  • 1-Year Standard Warranty without Product Registration

TLM-700HD - Specification

More Information
Screen:7" LED Backlit
Chassis:Camera Mount
Resolution:800x480
Viewing Angle:(H) +70/-70°
(V) +50/-70°
Luminance/Contrast:300cd/m²
20-01-1900 8:01:00 PM
Video Inputs:1x HD/SD-SDI
1x HD/SD-YUV
1x HDMI
1x Composite Video
Supported Input Resolutions:1080i(50/60Hz)
720p(50/60 Hz)
480i(NTSC), 576i(PAL)
Aspect Ratio:16:9, 15:9, 4:3
Tally LED:Live (Red)
Cued (Amber)
Audio In/Out:Embedded Audio on SDI and HDMI
Audio Level Indicator,
1x Stereo Headphone Jack
Special Features:Blue Only, Safe Frame, SDI Time Code
Display, Audio Level Indicator, Safe Frame,
Image Flip, Can powered by batteries (Not Included)
Dimension (LxWxH):186 x 132 x 51 mm
Weight:1.1 kg
Operating Temp. Range:0~40 °C
Power:DC 12V, 8W
What's in the Box:1 x TLM-700HD product
1 x Sunshield
1 x Switching Adaptor DC 12V / 1A
General
Display:7"
Inputs:HD/SD-SDI: BNC (x1 Input)
Component: BNCx3 (x1 Input)
Composite: BNC (x1 Input)
HDMI: HDMI (x1 Input)
Tally: 15-pin DSub (x1 Input)
Resolution:800 x 480
Aspect Ratio:16:9
4:3
Standard:NTSC/PAL
Power:12VAC or DC
V-mount with universal battery
Dimensions (HxWxD):5 x 7.3 x 1.5" (184 x 127 x 38mm)
Weight:2 lbs (0.9kg)
Packaging Info
Package Weight:3.43 lb
Box Dimensions (LxWxH):11.4 x 9.55 x 4.5"
