Eartec HUB9SMXS UltraLITE 9-Person HUB Intercom System with Max 4G Single Headset

SKU
HUB9SMXS
Request for Price

Product Highlights:

  • Eliminates Wires and Belt-Worn Radios

  • Provides Hands-Free Communication

  • 9 Rechargeable Batteries

  • 8-Port Charger

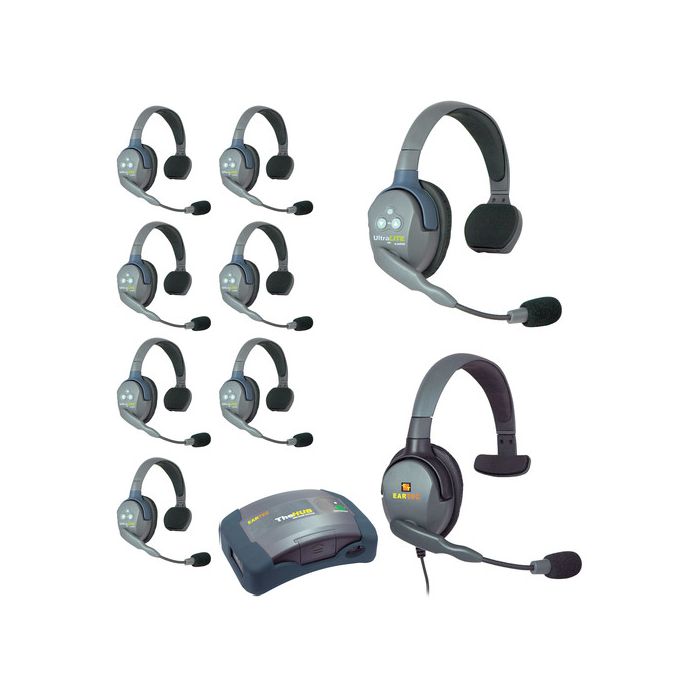

The Eartec HUB9SMXS UltraLITE 9-Person HUB Intercom System includes one HUB Mini Base Station, eight UltraLITE Single Remote headsets, one Max 4G Single headset, nine LX600LI lithium batteries, an eight-port charger, and a large soft-side case. It is designed to accommodate nine-person crews who need to communicate wirelessly while simultaneously working with their hands. This system is designed to work in the United States.

The Hub is designed to extend the range of your existing Eartec wireless system by over 1000', and moreover, to be portable; you can wear it on a belt, and thus allow your hotspot to travel with you, or place it in a single, changeable location. The UltraLITE single and dual headsets works in conjunction with the Hub for controlling the voice communication between users. They provide two-way voice communication and the microphone arm can swivel 270°. The Max 4G Single headset features an adjustable headband and a boom arm that rotates 270° and automatically mutes when placed in an "up" position

The Eartec HUB™ is a professional full duplex intercom for people that need to communicate while working with their hands.  This compact system features the HUB™ Mini base to be placed on-location, or belt-worn.  Also included are Remote UltraLITE™ wireless headsets.  UltraLITE™ utilize Digital Enhanced Cordless Technology (DECT) to provide professional, simultaneous talk wireless communication within a quarter mile range.

No FCC License Required.

UltraLITE Headsets eclipse all other full duplex wireless for performance and convenience because the transceiver is built right inside the ear cup. This self-contained, “All in One” design eliminates headset wires and even belt worn radios. They provide simultaneous talk, two way voice communication for users that need to work with their hands yet also require one ear free to listen to what is going on around them. The mic boom arm swivels 270º so the headset can be worn on the left or right.  Microphone mutes when in the up position.

Field Replaceable Lithium Battery  Each UItraLITE™ wireless headset comes complete with a rechargeable Lithium battery that is installed in a special compartment of the headset.  The batteries are lightweight and only about the size of a book of matches. They charge in approximately 3 hours and operate the headset for 6 hours.  Since they are removable, and are charged externally in the Multi-Port charger, they can be changed out in seconds.

Multi-Port Charger . All complete HUB™ wireless systems include a Multi-Port charger that charge the headset batteries in individual bays.  When each battery reaches full charge the corresponding LED turns from red to green indicating that the battery is ready to go.  This feature allows users to have extra batteries on hand in the charger whenever necessary.

Eartec’s Softside Case is included to keep your wireless system stored safely.  Constructed of waterproof nylon this headset bag/case includes internal compartments so the headsets stay organized.  There is also a pocket with Velcro enclosure for the charger and any spare batteries.  The molded hard plastic handle makes transport easy and convenient for “On Location” work.

Write Your Own Review
You're reviewing:Eartec HUB9SMXS UltraLITE 9-Person HUB Intercom System with Max 4G Single Headset
Your Rating
    • Rechargeable Battery

    • AC Adapter

    • Limited 1-Year Warranty

      • Rechargeable Battery
      • Limited 1-Year Warranty
      • Limited 60-Day Warranty for Rechargeable Batteries
        • Rechargeable Battery
        • Limited 1-Year Warranty
        • Limited 60-Day Warranty for Rechargeable Batteries
          • Limited 6-Month Warranty
            • AC Adapter
            • Limited 1-Year Warranty

              HUB9SMXS - Specification

              More Information
              Plug-In & Up To 8 Wireless UltraLITE Headsets (USA) Specs
              :
              Physical
              Standard:DECT 6.0
              Frequency:1920 to 1930 MHz
              Connector:2.5 / 3.5 mm plug-in
              Channel Bandwidth:1.728 GHz
              Modulation Type:GFSK
              Transmission Speed:1.152 Mbps (baud rate)
              Duplex Mode:Time Division Duplex (TDD)
              Encoding:Speech Encoding ADPCM / 32 bit/s
              RF:RF Accessing Time Division Multiple Access (TDMA)
              Range:0.25 mile / 400 m in open space
              Power Supply:Headset Power Supply Rechargeable lithium 3.7 V / 800 mAh, 3.0 Wh Charger Power Supply AC / Adapter: Input 100 to 240 VAC
              Charge Time:3 hours
              Operation Time:4 hours
              Storage Temperature:14 to 140°F / -10 to 60°C
              Dimensions:5.50 x 1.50 x 3.75" / 13.97 x 3.81 x 9.53 cm
              Weight:4.0 oz / 113.4 g
              Weight:4 oz / 113.4 g
              Weight:4 oz / 113.4 g
              Weight:5 oz / 141.7 g
              For Use with:8 x UltraLITE, UltraPAK, and HUB batteries
              Charge Time:Approximately three hours
              Input Power:100 to 240 VAC
              Dimensions:Not specified by manufacturer
              Weight:Not specified by manufacturer
              Standard:DECT 6.0
              Frequency:1920 to 1930 MHz
              Connector:2.5 / 3.5 mm plug-in
              Channel Bandwidth:1.728 GHz
              Modulation Type:GFSK
              Transmission Speed:1.152 Mbps (baud rate)
              Duplex Mode:Time Division Duplex (TDD)
              Encoding:Speech Encoding ADPCM / 32 bit/s
              RF:RF Accessing Time Division Multiple Access (TDMA)
              Range:0.25 mile / 400 m in open space
              Power Supply:Headset Power Supply Rechargeable lithium 3.7 V / 800 mAh, 3.0 Wh Charger Power Supply AC / Adapter: Input 100 to 240 VAC
              Charge Time:3 hours
              Operation Time:4 hours
              Storage Temperature:14 to 140°F / -10 to 60°C
              Dimensions:5.50 x 1.50 x 3.75" / 13.97 x 3.81 x 9.53 cm
              Weight:4.0 oz / 113.4 g
              Weight:4 oz / 113.4 g
              Weight:4 oz / 113.4 g
              Weight:5 oz / 141.7 g
              For Use with:8 x UltraLITE, UltraPAK, and HUB batteries
              Charge Time:Approximately three hours
              Input Power:100 to 240 VAC
              Dimensions:Not specified by manufacturer
              Weight:Not specified by manufacturer
              Packaging Info
              Package Weight:0.9 lb
              Box Dimensions (LxWxH):6 x 4.3 x 2.3"
              Package Weight:0.5 lb
              Box Dimensions (LxWxH):7 x 6.5 x 3"
              Package Weight:0.6 lb
              Box Dimensions (LxWxH):6.4 x 5.9 x 2.6"
              Package Weight:0.435 lb
              Box Dimensions (LxWxH):9.65 x 6.95 x 3.15"
              Package Weight:0.665 lb
              Box Dimensions (LxWxH):10.85 x 5.75 x 2.1"
              Package Weight:0.9 lb
              Box Dimensions (LxWxH):6 x 4.3 x 2.3"
              Package Weight:0.5 lb
              Box Dimensions (LxWxH):7 x 6.5 x 3"
              Package Weight:0.6 lb
              Box Dimensions (LxWxH):6.4 x 5.9 x 2.6"
              Package Weight:0.435 lb
              Box Dimensions (LxWxH):9.65 x 6.95 x 3.15"
              Package Weight:0.665 lb
              Box Dimensions (LxWxH):10.85 x 5.75 x 2.1"
              Eartec UltraLITE Single-Ear Remote Headset With Rechargeable Lithium Battery (USA Version) Specs
              :
              Headphone
              Number of Earpieces:Dual Earpiece
              Number of Earpieces:Dual Earpiece
              Earpiece Design:Over-Ear (Circumaural)
              Number of Earpieces:Single Earpiece
              Impedance:32 Ohms
              Number of Earpieces:Dual Earpiece
              Number of Earpieces:Dual Earpiece
              Earpiece Design:Over-Ear (Circumaural)
              Number of Earpieces:Single Earpiece
              Impedance:32 Ohms
              Wireless Connectivity
              RF Bandwidth:1728 GHz
              Wireless Modulation:GFSK
              DECT Standard:6
              Duplex Mode:Time-Division Duplex (TDD)
              RF Channel Access Method:Time-Division Multiple Access (TDMA)
              Speech Encoding:ADPCM / 32 b/s
              Transmission Speed:1.15 Mb/s
              Wireless Range:1312' / 400 m
              Frequency:1920 to 1930 MHz
              RF Bandwidth:1728 GHz
              Wireless Modulation:GFSK
              DECT Standard:6
              Duplex Mode:Time-Division Duplex (TDD)
              RF Channel Access Method:Time-Division Multiple Access (TDMA)
              Speech Encoding:ADPCM / 32 b/s
              Transmission Speed:1.15 Mb/s
              Wireless Range:1312' / 400 m
              Frequency:1920 to 1930 MHz
              RF Bandwidth:1728 GHz
              Wireless Modulation:GFSK
              DECT Standard:6
              Duplex Mode:Time-Division Duplex (TDD)
              RF Channel Access Method:Time-Division Multiple Access (TDMA)
              Speech Encoding:ADPCM / 32 b/s
              Transmission Speed:1.15 Mb/s
              Wireless Range:1312' / 400 m
              Frequency:1920 to 1930 MHz
              RF Bandwidth:1728 GHz
              Wireless Modulation:GFSK
              DECT Standard:6
              Duplex Mode:Time-Division Duplex (TDD)
              RF Channel Access Method:Time-Division Multiple Access (TDMA)
              Speech Encoding:ADPCM / 32 b/s
              Transmission Speed:1.15 Mb/s
              Wireless Range:1312' / 400 m
              Frequency:1920 to 1930 MHz
              Battery
              Battery Chemistry:Lithium-Ion
              Capacity (mAh):800 mAh
              Runtime:6 Hours
              Recharge Time:3 Hours
              DC Input Power:5 VDC at 1000 mA
              Battery Chemistry:Lithium-Ion
              Capacity (mAh):800 mAh
              Runtime:6 Hours
              Recharge Time:3 Hours
              DC Input Power:5 VDC at 1000 mA
              Battery Chemistry:Lithium-Ion
              Capacity (mAh):800 mAh
              Runtime:6 Hours
              Recharge Time:3 Hours
              DC Input Power:5 VDC at 1000 mA
              Battery Chemistry:Lithium-Ion
              Capacity (mAh):800 mAh
              Runtime:6 Hours
              Recharge Time:3 Hours
              DC Input Power:5 VDC at 1000 mA
              Environmental
              Storage Temperature:14 to 140°F / -10 to 60°C
              Storage Temperature:14 to 140°F / -10 to 60°C
              Storage Temperature:14 to 140°F / -10 to 60°C
              Storage Temperature:14 to 140°F / -10 to 60°C
              Eartec UltraLITE Dual-Ear Remote Headset With Rechargeable Lithium Battery (USA Version) Specs
              :
              Eartec Max 4G Single Headset With Dual 3.5-2.5mm Connectors Specs
              :
              :
              Microphone
              Type:Electret Condenser
              Type:Electret Condenser
              Wired Connectivity
              Audio Connector to Source:1 x 1/8" / 3.5 mm 1 x 2.5 mm
              Cable Length:3" / 7.6 cm
              Audio Connector to Source:1 x 1/8" / 3.5 mm 1 x 2.5 mm
              Cable Length:3" / 7.6 cm
              Eartec 8-Bay Multi-Port Charging Base Specs
              :
              :
              Plug-In & Up To 8 Wireless UltraLITE Headsets Specs
              :
              Eartec UltraLITE Single-Ear Remote Headset With Rechargeable Lithium Battery Specs
              :
              Eartec UltraLITE Dual-Ear Remote Headset With Rechargeable Lithium Battery Specs
              :
