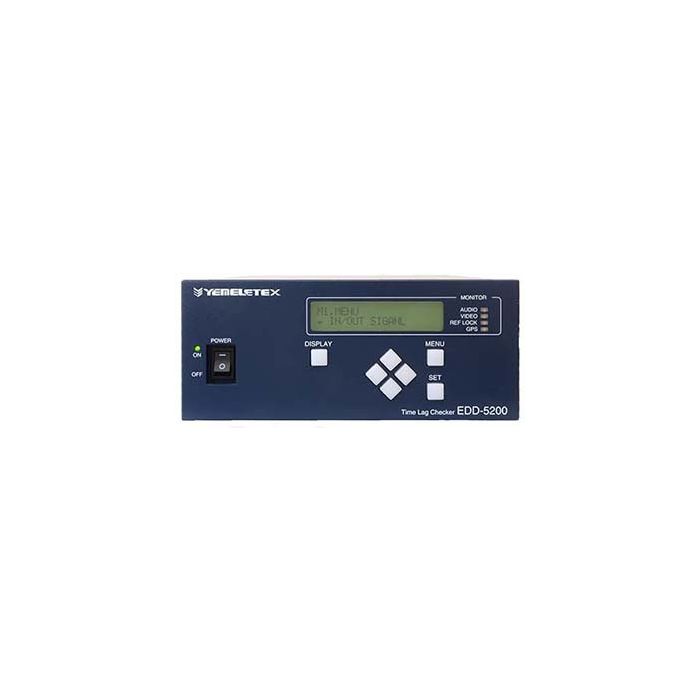

EDD-5200 Time Lag Checker

This equipment can measure the video delay time, audio delay time, difference between audio channels and difference between video and audio using test time code (heereafter called TTC) signals.

• Generates TTC signals whose phases are the same as those of video, audio or VANC signals and outputs them as video, audio or VANC.
• Measures video and audio delay time by routing video and audio signals back to Time Lag Checkers through the desired devices and lines, and by comparing the time from output to input (return). Also measures video and audio delay time of devices or lines by comparing phases of TTC signals that are routed back to Checkers.
• Estimates delay time in long distance with GPS using two Time Lag Checkers.

The Time Lag Checker supports the following video and audio standards:
Video standards

• SMPTE 259M 270Mbps SD-SDI (D1 NTSC,PAL)
• SMPTE 292M 1.485Gbps, 1.485/1.001Gbps HD-SDI (1080i 50/59/60,720p 50/59/60)
• SMPTE 424M 2.97Gbps, 2.97/1.001Gbps 3G-SDI (1080p 50/59/60)
  *3G SDI: “Level A YC4:2:2 10bit” and “Level B Dual-link YC4:2:2 10bit” only Audio standards
• AES/EBU
• Embedded Audio(8ch)
