ES-500 ES-600 HD/SD SDI Multi-Core Camera System for Shoulder Camera

• Full function broadcast quality multi-core system with newly developed ES cable.
• HD/SD-SDI signal can be transferred with single multi-core cable
• ES Cable Connection for HD/SD-SDI 2 small cables for HD/SD-SDI input and return video are interwoven with 26-pin cable.
•  ES series multi-core camera system transfers;

-HD/SD-SDI program video
-HD/SD-SDI return video
-Analog audio
-Intercom
-Tally, TC & Gen lock
-Camera remote control

•  Built-in SDI cable equalizer in the base station
•  Multimode or single mode available
•  Camera signal can be adjusted with camera remote control unit from Sony or Panasonic (depend on camera).
•  AC/DC operation

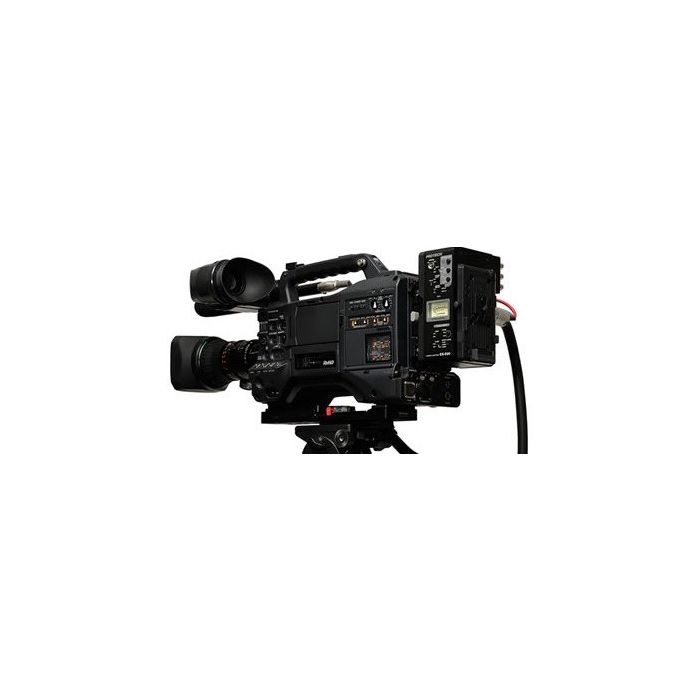

ES-500 Camera Adaptor

• For shoulder mount type camera
•  HD/SD SDI input from camera
•  HD/SD SDI RET video output
•  TALLY out
•  Aux (selectable from video output or T/C input)
•  Camera remote controller(Sony or Panasonic)
•  External audio output
•  Analog audio input (XLR Female 3pin)
•  Audio level meter
•  XLR Male 4pin intercom headset jacks (4W x1)
•  T/C output
•  Video (composite or HD-Y) input
•  V-mount power supply: DC12V out (Max.4.5A)
•  26-pin cable connector

ES-600 Base Station

•  HD/SD SDI output from camera
•  HD/SD SDI RET video input
•  TALLY in and out
•  Aux (selectable from video input or T/C output)
•  HD/SD SDI input x1(with 2 loop through) / auto detecting (SD/HD)
•  HD/SD SDI Return input x1(with 2 loop through) / auto detecting (SD/HD)
•  Intercom headset jack x1 on the front panel
•  Intercom system jacks x4 on the back panel (2-wire x2, 4-wire x2)
•  Camera remote controller(Sony or Panasonic)
•  External audio input
•  Analog audio output (XLR Male 3pin)
•  T/C input
•  AC power line cord jack
•  26-pin cable connector
