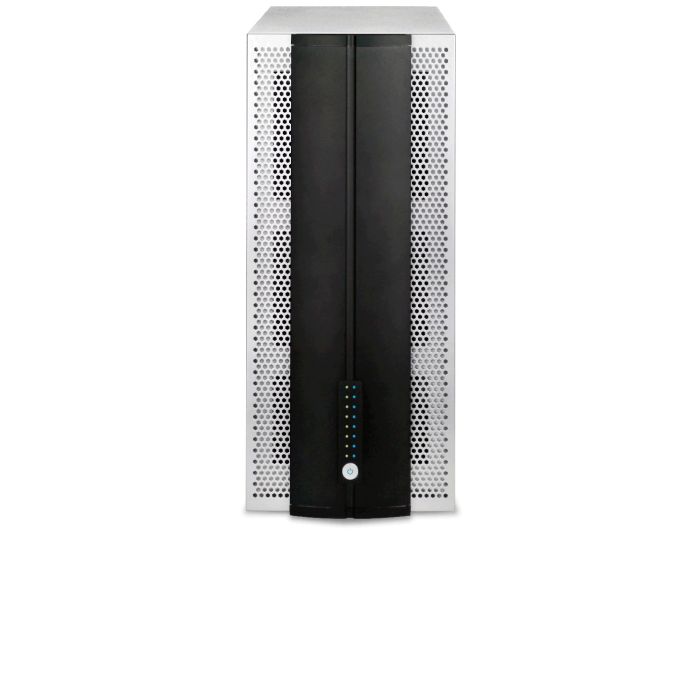

ExaSAN PCIe 3.0 8 bay RAID System for Desktop

SKU
A08S3-PS
Request for Price
The first PCIe 3.0 desktop model of the ExaSAN family, this 8-bay RAID system will support SAS and SATA drives(4TB and above). It retains the style and professional design of its predecessor but has had a major upgrade to its central core. It now uses PCIe 3.0 technology with throughput of up to 1200 MB/s. Expansion is easy – double up performance with a Dual Port 3.0 HBA Card!
The first PCIe 3.0 desktop model of the ExaSAN family, this 8-bay RAID system will support SAS and SATA drives(4TB and above). It retains the style and professional design of its predecessor but has had a major upgrade to its central core. It now uses PCIe 3.0 technology with throughput of up to 1200 MB/s. Expansion is easy – double up performance with a Dual Port 3.0 HBA Card!

The Performance
  • One workstation attached to one A08S3-PS
  • Performance: up to approximately 1200 MB/s
  • Max. Capacity: 32TB (based on 4TB capacity)

The Feature
  • Supports RAID Level 0, 1, 5, 6, 10, JBOD
  • PCIe 3.0 32 Gb bandwidth
  • Compatible with 3.5” and 2.5” SATA/SAS enterprise hard disks
  • PCIe SAN ready
  • Redundant power supply (Optional)

Functionality for Reliability
Video streaming applications have a strong requirement for very smooth, steady and sustained performance to prevent frame dropping. For Overcoming these issues, Accusys provides the EQ Mode and the DLP functions.

Equalization Mode
By selecting the RAIDGuard X GUI, the “Performance Equalization mode” can be used to prevent frame drops, ensure smooth I/Os, and achieve stable performance with the smallest peaks in bandwidth fluctuation, meaning that users can regain as much as 20% in dropped storage.

DLP (Disk Lag Proof)
RAIDGuard X also utilizes DLP technology. In the event of a single hard disk read speed performance degradation, delay or aging, other hard disks can resume stable I/O data transfer of corrected data in real-time based on RAID parity.

Precise Interface suitable for Media workgroup
Different from other interfaces which double the time of signal transportation, PCIe interface provides the highest speed, lowest retardation and consistent stability data flow. A08S3-PS supports 6G SAS and SATA hard-disks, users can select hard drives according to their usage and budget.

For users who pursue a cost-friendly storage system, SATA HDD is an ideal choice to build up a 32TB-large capacity, for users who demand high data security, they can choose high stability and optimized performance SAS HDD to process high data flow. Base on PCIe's high specification, which provides 800MB/s bandwidth in every channel, the A08S3-PS has four data transmission channel, in total 32Gb/s of bandwidth.

With a throughput up to 1200MB/s, A08S3-PS is powerful and is capable of meeting most requirements of post production works. The A08S3-PS’ high performance is not only stands for maximizing the utilization of every HDD but also represents the quality, standard and efficiency at film editing process for media workgroup.

Unique design for cooling
Different from the usual solution where the RAID card is combined with JBOD, the RAID controller of A08S3-PS is equipped with a troubleshooting system in addition to the two 12cm x 12cm low radiation and low-nois built-in FAN modules, which prevents the problem of host overheating from happening and maximize the cooling efficiency.
