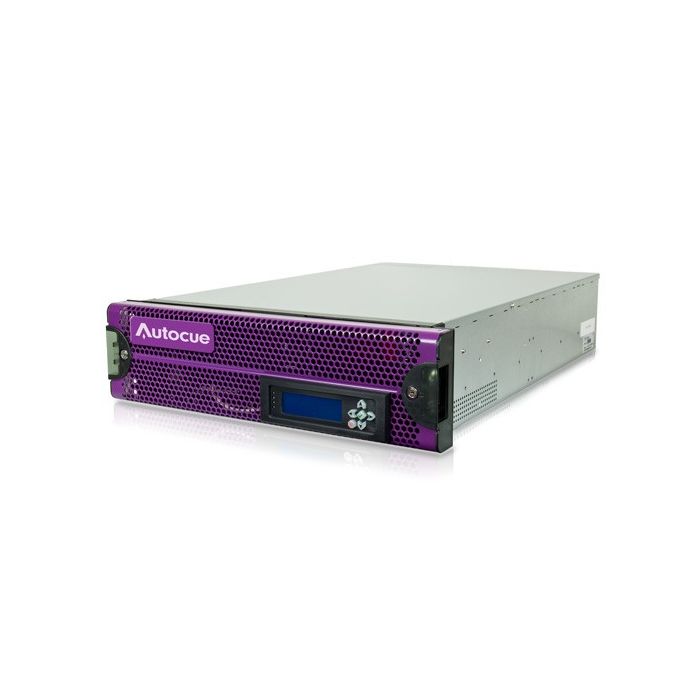

High Capacity Four-Port HD Video Server

Request for Price
In stock

High capacity server with built-in reliability and everything required for critical frontline broadcast applications.

  • Four bi-directional digital ports (ingest/ playout).
  • Easy-to-use interface controlled via keyboard, mouse, Shuttle controller or touchscreen monitor.
  • Operates as a NAS device allowing directly attached edit clients and edit in situ.
  • Supports industry standard codecs such as DV25, DV50, IMX, MPEG 2, MPEG 4, XDCAM, DNxHD and others.
  • Video inputs/ outputs: SDI (SD/HD), component video, S-video, composite NTSC/PAL and HDMI.
  • Audio inputs/ outputs: 2 channels embedded in HD and SD (SDI and HDMI), balanced on ¼” audio jacks or unbalanced on AES/EBU.
  • Capacity for four HD streams.
  • Hot-swappable drives in RAID6 array.
  • Conversion of a tape based archive to file based media.
  • 12TB of useable disk space.
  • Extendable internal and external storage (by request).
  • External I/O ports (by request).
  • Power consumption:1.2A @240v
  • Dimensions are: 67x43x13.5cm
Application Broadcasters Live Productions Large Academic Facilities Live Events Sports Time Delay Broadcast
