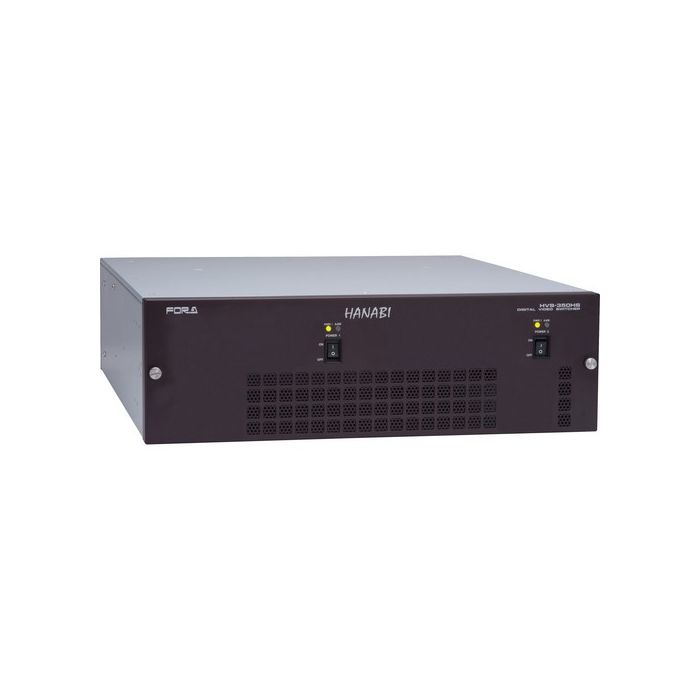

HVS-350MU HD/SD 1.5M/E Switcher

The For-A HVS-350MU HD/SD 1.5M/E Switcher has 8 HD/SD-SDI inputs and 8 HD/SD-SDI outputs. Featuring frame synchronization on each input, the switcher allows you to switch asynchronous signals. Offering a maximum of 24 inputs and 12 outputs, it features 4 channels of resizing engines 2 keyers with a chroma key and 2D DVE, 4 DSK with 2D DVE transitions. With the picture-in-picture feature, you can view 2 channels simultaneously. In addition, you can enlarge, shrink, reposition, crop or add a border to the image. The HVS-350MU HD/SD 1.5M/E Switcher also includes 4 still stores and an independent 16-channel multiviewer output.

• 8 HD/SD-SDI inputs and 8 HD/SD-SDI outputs
• Frame synchronization on each input for switching asynchronous signals
• Offering up to 24 inputs and 12 outputs
• Features 4 channels of resizing engine, 2 keyers with a chroma key and 2D DVE, 4 DSK with 2D DVE transitions
• Picture-in-picture feature allows for 2-channel simultaneous viewing
• Includes 4 still stores and an independent 16-channel multiviewer output
