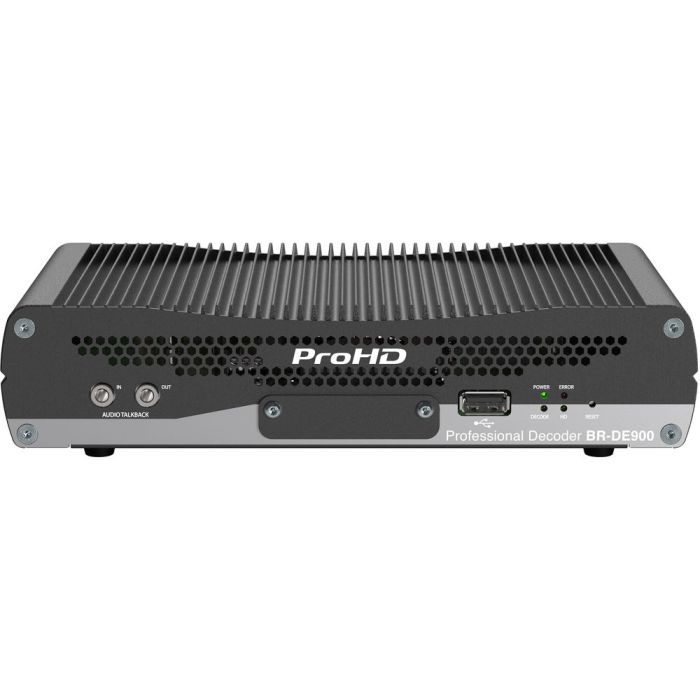

JVC BR-DE900 Live-Streaming Decoder

SKU
BR-DE900
Request for Price

Product Highlights:


  • Firmware v1.0.13 is now available. The BR-DE900 decoder is a professional grade, high performance IP decoding appliance supporting the latest bandwidth efficient HEVC/H.265 and H.264/AVC compression standards.
  • Stream forwarding feature, the BR-DE900 decoder efficiently redistributes the incoming stream within a private LAN/WAN network.
  • It offers a large panel of video connectivity with dual 3G-SDI, HDMI2.0, and composite outputs which can be activated simultaneously.
  • For point-to-point applications, when paired with JVC streaming cameras

The BR-DE900 decoder is a professional-grade, high-performance IP decoding appliance supporting the latest bandwidth-efficient HEVC/H.265 and H.264/AVC compression standards. It features a robust portable enclosure perfectly suited for field use and provides best-in-class video quality and industry-standard audio/video connectivity.

Features :

  • Firmware v1.0.13 is now available. The BR-DE900 decoder is a professional grade, high performance IP decoding appliance supporting the latest bandwidth efficient HEVC/H.265 and H.264/AVC compression standards.
  • Stream forwarding feature, the BR-DE900 decoder efficiently redistributes the incoming stream within a private LAN/WAN network.
  • It offers a large panel of video connectivity with dual 3G-SDI, HDMI2.0, and composite outputs which can be activated simultaneously.
  • For point-to-point applications, when paired with JVC streaming cameras
  • Stream forwarding feature: Decode Zixi protected stream (HEVC or H.264) over baseband video while forwarding
  • ZIXI Error correction License is optional!
  • Performs reliable broadcast-quality decoding of HEVC or H.264 streams up to 1080p60 4:2:2 10 bits (respectively Main422 10P@L4.1 and Hi10@L4.2)
  • Supporting the latest bandwidth-efficient HEVC/H.265 and H.264/AVC compression standards.
  • Any feed resolution/frame rate to any output resolution frame
  • BR-DE900 decoder provides low latency of 100% hardware-based decoding
  • Bandwidth efficient H.264 codec and built-in stream protection technologies, Zixi or SMPTE 2022 Pro-MPEG
  • The Decoder is based on the MGW-ACE decoder with special FW for JVCKENWOOD



BR-DE900 - Specification

More Information
Specification Streaming De-ENcoder
Video Stream Input Support 1:HEVC & H.264 MPEG-H HEVC (ISO/IEC 23008-2)
Profile/Level:Profile/Level: up to Main422 10@L4.1 High Tier
Color sampling / Bit-depth:Color sampling / Bit-depth: up to 4:2:2 / 10 bits
Bit rate:Bit Rate: up to 50Mbps
Frame rate:Frame Rate: 1-60 fps.
Input Resolutions:Input Resolutions: from CIF up to 1920x1080
Video Stream Input Support 2:MPEG-4 AVC/H.264 (ISO\IEC 14496-10 MPEG-4 AVC Rec. ITU-T H.264)
Profile/Level 2:Profile/Level: up to Hi10@L4.2
Color sampling / Bit-depth 2:Color sampling / Bit-depth: up to 4:2:2 / 10 bits
Bit rate 2:Bit Rate: up to 100Mbps
Frame rate 2:Frame Rate: 1-60 fps.
Input Resolutions 2:Input Resolutions: from CIF up to 1920x1080
Audio Stream Input Support:MPEG-4 AAC-LC (ISO/IEC 14496-3) Up to x2 stereo channel
Audio Sample Rate:Sample Rate: 48kHz
Audio Bit rate:Bit Rate: 16-192kbs
Output Resolutions / Frame Rates:1920x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.976 1920x1080i @ 60, 59.94, 50 Hz 1280x720p @ 60, 59.94, 50, 30, 29.97, 25 720x480i @ 59.94 Hz (NTSC) 720x576i @ 50 Hz (PAL)
Network Protocols
UDP TS:Yes
RTP TS:Yes
RTP ES:Yes
ZIXI:Yes, Error-Correction (HEVC and H.264) – Zixi P2P and Broadcaster modes
RTP TS ProMPEG:Yes, with ProMPEG Forward Error Correction
Network Interfaces:
Ethernet Ports:2x Gigabit Ethernet ports for management and/or streaming
Other Ports:VB-ASI Input and Output (available in future release)
Video Outputs
HDSDI:Yes, 2 x 3G/HD-SDI/SD-SDI (SMPTE 259, SMPTE 274M, SMPTE 296M, SMPTE 424M)
HDMI:Yes, 1 x V 2.0
Composite:Yes
:
Audio Outputs
Embedded SDI:Yes, SDI x 2 with Embedded audio (PCM support)
Embedded HDMI:Yes, HDMI Embedded audio (PCM support)
Digital:Yes, AES3 Digital Audio (BNC Female)
Analog unbalanced:Yes, 1 x Analog unbalanced stereo audio, AC-coupled (RCA Female)
Analog Balanced:Yes, 1 x Balanced analog stereo audio (XLR Male)
Security
Security:Real-time AES decryption for video, audio and metadata
Management
Management:Secure Web based remote management interface (HTTPS) Dashboard with detected channel characteristics description and active outputs Zixi streaming statistics for easier configuration and enhanced Quality of Service Status LED's for power, network activity, error and streaming indications Autostart mode recovers saved configuration after power cycle Remote firmware and software upgrade capability via browser and command line· Hardware push-button for restoring unit to factory settings Recovery or initialization of Ethernet settings over USB thumb drive
Dimensions De-ENcoder
Dimensions:42.4mm H / 202mm W / 117.5mm D
Weight:1.1kg
Enclosure: Industrial-grade, Aluminum case with mounting holes for seamless installation
Environmental
Operating Temperature in Celsius:0 degree to 50 degree
Relative Humidity:5% to 95% (non-condensing)
Power Input:20VDC to 50VDC
Power consumption:22W
Include Package
Others:AC/DC Power surply
    • JVC BR-DE900 ProHD IP Decoder
    • ACDC Power supply
    • Limited 1-Year Warranty
