JVC DT-F9L5U 8.2" Broadcast Studio Monitor

SKU
DT-F9L5U
$1,895.00

Product Highlights:

  • 8.2" IPS Panel with LED Backlight
  • 1280 x 800 Resolution / 800:1 Contrast
  • 450 Nit Bright / 160° Viewing Angle
  • 3G-SDI, HDMI, Analog BNC, and RCA Audio
  • 16 Channel SDI Audio Level Metering
  • SDI Timecode Display
  • Front and Rear Tally Lamps
  • Waveform, Vectorscope, Under/Overscan
  • Peaking, False Color, Zebra, Blue Gun
  • Anton Bauer Battery Plate

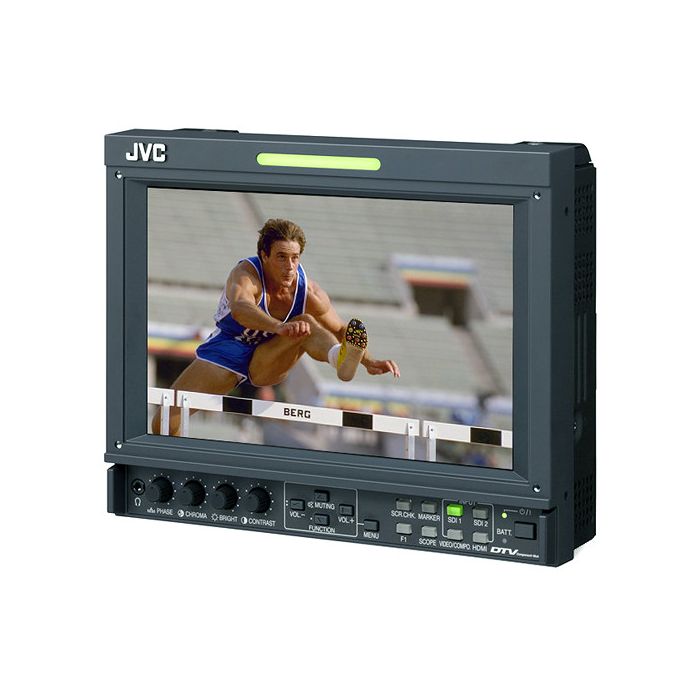

The JVC DT-F9L5U 8.2" Broadcast Studio Monitor features a 16:10 widescreen active matrix TFT LCD with a gloss surface and an LED backlight. The resolution is 1280 x 800, contrast ratio 800:1, and brightness 450 nit. The viewing angle is 80 up, down, left, right. An Anton Bauer battery plate is included for portable power and you can optionally also get JVC's ADPV16 AC adapter.

Front panel controls include phase, chroma, brightness, and contrast adjustment knobs, and input selection and marker buttons. The front panel also has a wide-sized tally light, and a second tally light is on the rear.

Key Features

  • 8.2" IPS panel with 1280 x 800 resolution
  • Mercury-free white LED backlight
  • 800:1 contrast ratio
  • 450 nit brightness
  • 160 x 160° viewing angle
  • 16 channel SDI audio level metering
  • Area/Center/Aspect marker
  • SDI timecode display
  • Front and rear tally lamps
  • Anton Bauer battery plate

Inputs / Outputs

  • Two 3G/HD/SD-SDI inputs and one switched out output
  • Bridge-connected Composite BNC input and output
  • HDMI input
  • Component input on 3x BNCs
  • RCA audio input on one connector
  • RCA L/R audio output
  • Front panel headphone jack
  • RJ-45 Make/Trigger
  • D-Sub9 RS-232C

Image Analysis Tools

  • Waveform
  • Vectorscope
  • Underscan / Overscan
  • Peaking Focus Assist
  • False Color
  • Blue Gun
  • Zebra
Write Your Own Review
You're reviewing:JVC DT-F9L5U 8.2" Broadcast Studio Monitor
Your Rating

Items Included:

  • JVC DT-F9L5U 8.2" Broadcast Studio Monitor
  • Anton Bauer Battery Plate
  • Tripod Mounting Kit
  • Protective Screen Filter with Four Screws
  • Power Cord Holder with Two Screws
  • Limited 1-Year Warranty

DT-F9L5U - Specification

More Information
General
Screen:8.2" wide, active matrix TFT LCD (21 cm)
LED backlight
ADS type panel, gloss surface
Effective Screen Size:W x H x D: 7 x 4.3 x 4.2 (18 x 11 x 21 cm)
Resolution:1280 x 800
Colors:16.7 million
Viewing Angle:160° / 160
Brightness:450 nit
Contrast Ratio:800:01:00
Aspect Ratio:16:10
Input & Output:3G/HD/SD-SDI input (embedded audio supported)
2x auto detecting BNC connectors

HD-SDI output switched out (embedded audio supported)
1x auto detecting BNC connector

HDMI input:
1x HDMI, HDCP-compatible

Composite input/output:
1x line on 2x BNC connectors, 1 V (p-p), 75 Ω
The input and output terminals are bridge-connected (auto termination)

Component input:
1x line on 3x BNC connectors
Y: 1 V(p-p), 75 Ω(with sync)
PB/B-Y, PR/R-Y: 0.7 V (p-p), 75 Ω

RCA audio input:
1x RCA connector, 500 mV (rms), high impedance

RCA audio output:
2x RCA connectors, 500 mV (rms)
500 mV (rms)

1x headphone jack

Remote (Make/Trigger):
1x RJ-45, contact or momentary pulse to corresponding terminal

Remote (RS-232C):
D-Sub9, serial communicat
Format:HD-SDI: SMPTE292M
SD-SDI: ITU-R BT.656, SMPTE259M
Embedded Audio 16 Ch: SMPTE299M, SMPTE272M
Timecode:SDI timecode
Audio Metering:Digital (up to 16 ch)
Power Requirements:AC 120 V / AC 220 - 240 V, 50/60 Hz or DC 12 - 17 V
Power input: 4-pin XLR
Optional power adapter: model # ADPV16
Rated Current:0.5 A (AC 120 V)
0.25 A (AC 220 - 240 V)
1.3 A (DC 12 - 17 V)
Operating Temperature:41 to 95°F (5 to 35°
Operating Humidity:20 - 80% (non-condensing)
*Slightly variable depending on ambient conditions for installation
Dimensions:8.6 x 8.6 x 7.5" (22 x 22 x 19 cm)
Weight:7 lb (3.2 kg)
Packaging Info
Package Weight:6.15 lb
Box Dimensions (LxWxH):13.4 x 12.7 x 12.5"
