Product Highlights:
- 17.3" Display
- 1920 x 1080 Resolution
- IPS LCD Panel
- SDI/HDMI/Component/VGA/Composite Inputs
- Waveform, Vectorscope, and False Color
- LUT Support over USB
- 16-Channel Audio Metering
- Gold Mount Battery Plate

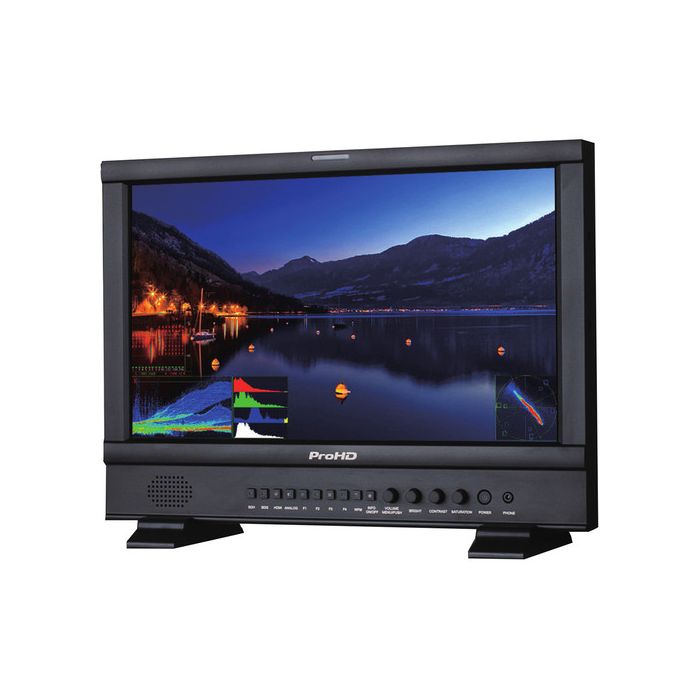

Designed for studio and post-production, the JVC DT-N17F ProHD 17.3" Broadcast Studio LCD Monitor has a wide array of inputs, and essential professional features. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 600:1, and an LED backlight with a brightness of 300 cdm².
Video signals from analog or digital SD all the way up to 2K over SDI are supported. SDI, HDMI, VGA, component, and composite inputs are available for sources, while SDI, HDMI, and composite inputs all feature loop outputs to feed production equipments down the line. Professional image analysis features include waveform, vectorscope, tally, zebras, peaking, false color, and more. For portable power, secure a Gold mount battery on the integrated Gold mount plate. A power cord and stand feet are included.
Supports 3G/HD/SD-SDI
ITU-709 Color Space with Selectable Gamma Presets
TSL UMD Control and Display
USB Firmware Upgradable
Built-In Waveform Monitor
Built-In Vectorscope and Histogram Monitor
16-Channel Audio Level Meters
LUT Support
General
- SDI Timecode (LTC, VITC1&2) and AFD info display
- R/G/B/Mono, False color, Zebra stripes display
- Peaking focus assist display mode
- H/V delay, freeze frame display modes
- Native scan, overscan, and normal scan selection
- GPI control via RS485 port connection
- 3-user setting data storage
- TALLY light with adjustable brightness
- 4-user definable function keys
- Easy one-key menu operation
- Built-in speaker (2.5W)
- Gold mount plate for field operation
Items Included:
- JVC DT-N17F ProHD 17.3" Broadcast Studio LCD Monitor
- AC Adapter with Power Cord
- Rack Ears
- Stand Feet
- Limited 1-Year Warranty
