JVC ProHD 21.5" Broadcast Studio LED-Backlit LCD Monitor

SKU
DT-N21H
image-icon
د.إ.‏6٬427٫58
Add to Wish List Add to Compare
Email

Product Highlights:

  • Supports 3G/HD/SD-SDI and 2K-SDI
  • Full HD LCD Panel with LED Backlighting
  • ITU-709 Color Space
  • Selectable Gamma Preset
  • TSL UMD Control and Display
  • Audio Meters Display
  • USB Firmware Upgradable

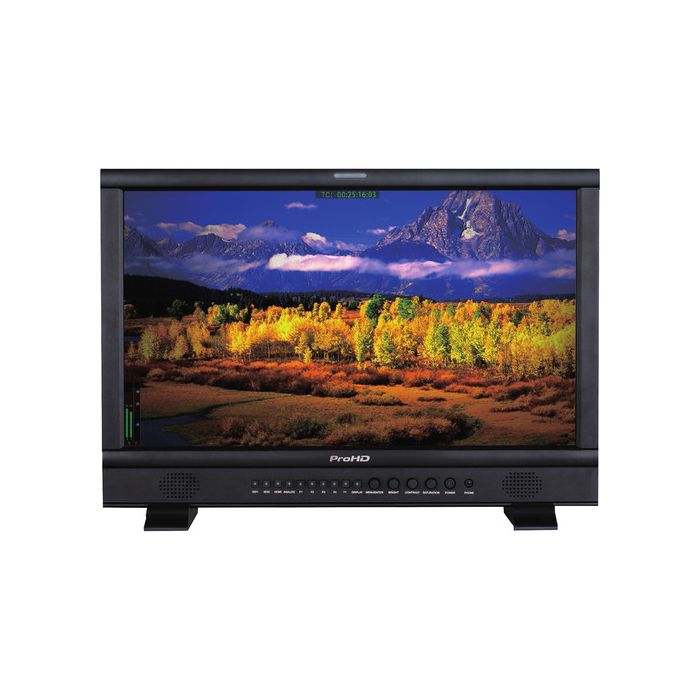

main product photo

The ProHD 21.5” Broadcast Studio LED-Backlit LCD Monitor from JVC supports 3G/HD/SD-SDI and 2K-SDI signals, and provides a 1920 x 1080 pixel Full HD resolution LCD panel with LED backlighting. The monitor offers a USB port on the rear side for monitor firmware upgrades. It also features a 178° wide viewing angle, 1000:1 contrast ratio, and a color depth of 16.7 million colors.

Supports 3G/HD/SD-SDI and 2K-SDI

  • Supports up to 3G-SDI (SMPTE 425M) including Level-A and Level-B, which are capable of transferring 1080p uncompressed digital video data at a max rate of 60 fps at 3G bit/s
  • 2K-SDI (2048 x 1080p) is also supported for down-sampling to Full HD display

Full HD LCD Panel with LED Backlighting

  • The monitor features a 1920 x 1080 pixel Full HD resolution LCD panel with LED backlighting, 178° wide viewing angle (H & V), 1000:1 contrast ratio, and a color depth of 16.7 million

ITU-709 Color Space

  • Compatible with ITU-709 standard color space for HDTV broadcasting

Selectable Gamma Preset

  • Supports gamma preset selection from: 2.2, 2.4, and 2.6

TSL UMD Control and Display

  • Monitor supports UMD control input via RS-485 and RS-232 port, compatible with TSL 3.1 and 4.0 UMD protocol

Audio Meters Display

  • Supports SDI/HDMI embedded audio 2-channel meter display, and analog audio 2-channel meter display

USB Firmware Upgradable

  • Offers a USB port on the rear for monitor firmware upgrade. Users can download firmware from official website to a USB drive, and the upgrade operation is directly on the monitor, without PC or other adapters

General

  • SDI timecode (LTC, VITC1 & 2) and AFD info display
  • R/G/B/mono, false color, zebra stripes display
  • Peaking focus assist display mode
  • H/V delay, freeze frame display modes
  • Safety area selection: 80%, 85%, 90%, 93%, 95%
  • Scale marker: 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • Native scan, overscan, and normal scan selection
  • GPI control via RS-485 port connection
  • Three-user setting data storage
  • Tally light with adjustable brightness
  • Four-user definable function keys
  • Easy one-key menu operation
  • Built-in speaker (2.5W)
  • Includes replaceable Gold Mount plate for field operation
