JVC DT-V17G25Z 16.5" 10-Bit Production Field and Studio Monitor

SKU
DT-V17G25Z
image-icon
$3,750.00
Add to Wish List Add to Compare
Email

Product Highlights:

  • Lissajous audio metering
  • Three gamma preset modes
  • Wide array of markers and indicators
  • Two 3G-SDI and dual-link inputs
  • IMD (In-Monitor Display)
  • Optimized I-P conversion
  • Pixel-by-pixel (1:1) display
  • Timecode display (SDI)
  • Built-in stereo speaker

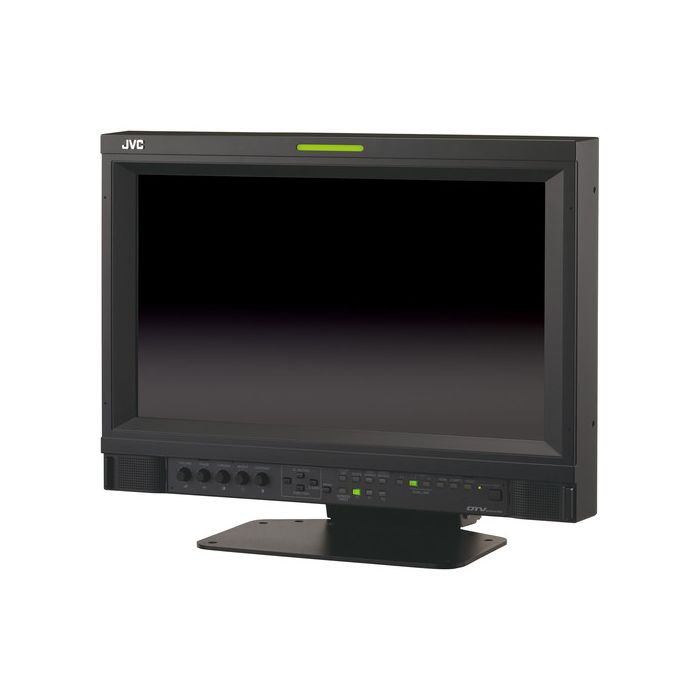

main product photo

The JVC DT-V17G25Z 16.5" 10-Bit Production Field and Studio Monitor is a near EBU Grade 1 LCD monitor with improved color gamut, gamma, and grayscale characteristics, making it suitable for field, studio, and broadcast image evaluation. Its 10-bit panel and wide gamma range make it ideal for critical image evaluation. The monitor is fully capable of displaying 2048 x 1080/24p (DCI 2K) signals, and reproduces accurate colors in native 1920 x 1080 resolution.

In addition to wide color gamut, luminance ranges, and color temperatures that meet EBU specs, the gamma and grayscale gradation performances have been improved to satisfy the discerning requirements of production studios, broadcast networks, and other professional applications. The DT-V17G25Z is equipped with a 10-bit IPS LCD panel and is capable of reproducing 1.073 billion colors. It also offers a contrast ratio of 1500:1 and wide viewing angles of 178°/178°. The analog-based picture quality evaluation technology with contour enhancer helps eliminate aliasing, making pictures appear more natural.

  • 10-bit IPS panel with 1.073 billion color reproduction
  • 1500:1 contrast ratio
  • Full HD resolution (1920 x 1080 pixels)
  • Fully capable of displaying 2048 x 1080/24p (DCI 2K) signals
  • Built-in histogram, waveform, vectorscope, and zebra
  • Built-in audio level meter with up to 16 channels
  • Lissajous audio metering
  • Three gamma preset modes
  • Wide array of markers and indicators
  • Two 3G-SDI and dual-link inputs
  • IMD (In-Monitor Display)
  • Optimized I-P conversion
  • Supports the EIA/CEA-708 and EIA/CEA-608 SDI closed captioning standards
  • Color temperature settings (9300K, 6500K, 5600K, or User mode)
  • IP modes: Normal, Field, and Cinema (24p)
  • Pixel-by-pixel (1:1) display
  • Timecode display (SDI)
  • Built-in stereo speaker
  • Tiltable stand with two-way installation capability
  • Carrying handle
Write Your Own Review
You're reviewing:JVC DT-V17G25Z 16.5" 10-Bit Production Field and Studio Monitor
Your Rating

Items Included:

  • JVC DT-V17G25Z 16.5" 10-Bit Production Field and Studio Monitor
  • Tilting Desk Stand
  • Carrying Handle
  • AC Power Cord
  • Power Cord Holder
  • 2 x Screw
  • Core Filter
  • Limited 1-Year Warranty

DT-V17G25Z - Specification

More Information
General
Monitor Type:Multi-format LCD monitor
Screen Size:16.5" (42 cm)
Resolution:1920 x 1080
Display Colors:1.073 billion
Viewing Angle:178° / 178° (H /
Brightness:450 cd/m2
Contrast Ratio:1500:01:00
Signal System:Not specified by the manufacturer
Response Time:Not specified by the manufacturer
Aspect Ratio:16:09
LCD Panel:17" (43.2 cm) diagonal, active matrix TFT
Effective Screen Size:14.4 x 8.1" (365.8 x 205.7 mm)
Standards:3G-SDI (Ready): SMPTE 424M/SMPTE 425M; dual-link
HD-SDI (Ready): SMPTE 372M
HD-SDI: BTA S-004C, SMPTE 292M
SD-SDI: ITU-R BT.656 (525/625), SMPTE 259M (525)
Embedded Audio: SMPTE 299M, SMPTE 272M
Audio Output:Internal: 1 W + 1 W (L/R)
Energy Efficiency Class:D
Rated Current:North America: 0.55 A (120 VAC)
Europe: 0.33 A (220 to 240 VAC)
Video I/O:3G/HD/SD-SDI (In 1):
Digital Signal Input: Auto detection (compatible with embedded audio/dual-link signals)

3G/HD/SD-SDI (In 2):
2 x 2 lines, BNC connector

3G/HD/SD-SDI (Out 1):
Digital Signal Input: 1 line, 1 x BNC connector (compatible with embedded audio)

3G/HD/SD-SDI (Out 2, Switched):
Digital Signal Input: 1 line switched out, 1 x BNC connector (compatible with embedded audio)

HDMI In: 1 (compatible with HDCP)

Component In: 1 line
Y: 1 Vpp, 75 Ohms (with sync)
PB/B-Y, PR/R-Y: 0.7 Vpp, 75 Ohms

Composite Video Input/Output: 1 line
2 x BNC, 1 Vpp, 75 Ohms
((In and Out are connected with a bridge connection, auto termination)
Audio I/O:In 1:
Analog Signal: 2 lines
2 x RCA connectors
1 x 3.5 mm stereo mini jack

In 2:
500 mV (rms), high impedance

Output:
Audio assign (monitor out)
Analog Signal: 1 line
2 x RCA, 500 mV (rms)
External Control:Make/Trigger: RJ-45
RS-485: RJ-45
RS-232C: D-Sub (9-pin)
Operating Temperature:41 to 95°F (5 to 35°
Storage Temperature:-4 to 140°F (-20 to 60°
Operating Humidity:20 to 80%, non-condensing
Power Requirements:120/220 to 240 VAC, 50/60 Hz
Power Consumption:On: 29.7 W
Stand-By: 0.3 W
Annual Energy Consumption: 44 kWh/year
Dimensions (W x H x D):With Stand: 16.9 x 13.8 x 8.4" (43.0 x 35.0 x 21.3 cm)
Without Stand: 16.9 x 12.1 x 4.4" (43.0 x 30.9 x 10.2 cm)
Weight:With Stand: 18.3 lb (8.3 kg)
Without Stand: 13.0 lb (5.9 kg)
Packaging Info
Package Weight:22.5 lb
Box Dimensions (LxWxH):21 x 18.2 x 11.6"
Audio Input In 1:
Analog Signal: 2 lines
2 x RCA connectors
1 x 3.5 mm stereo mini jack
In 2:
500 mV (rms), high impedance
Audio Output Output: Audio assign (monitor out) Analog Signal: 1 line 2 x RCA, 500 mV (rms)
