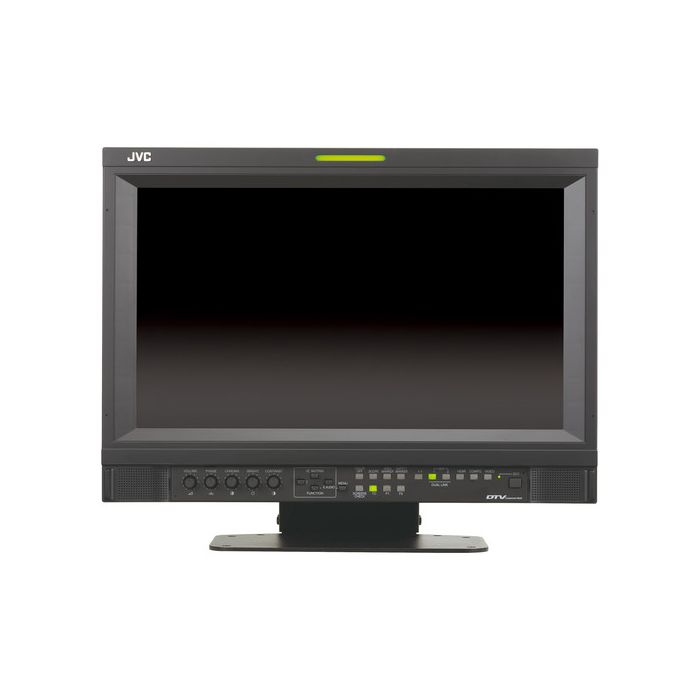

JVC DT-V17G2Z 17" Broadcast Field / Studio Monitor

SKU
DT-V17G2Z
$2,625.00

Product Highlights:

  • Lissajous audio metering
  • Three gamma preset modes
  • Wide array of markers and indicators
  • Two 3G-SDI and dual-link inputs
  • IMD (In-Monitor Display)
  • Optimized I-P conversion
  • Pixel-by-pixel (1:1) display
  • Timecode display (SDI)
  • Built-in stereo speaker

The DT-V17G2Z 17" Broadcast Field / Studio Monitor from JVC is a high-performance LCD monitor with color gamut, gamma, and grayscale characteristics suitable for field, studio, and broadcast use. The monitor is capable of displaying a 2048 x 1080/24p (DCI 2K) signal with a 1500:1 contrast ratio. It features a built-in histogram, waveform, vector scope, and zebra, with a wide array of markers and indicators. The monitor has a built-in audio level meter up to 16 channels with a built-in stereo speaker. It includes a carrying handle for easy mobility.

  • 17" (16.5" viewable) IPS panel with 16.7 million color reproduction
  • 1500:1 contrast ratio
  • Full HD resolution 1920 x 1080p
  • Capable of displaying 2048 x 1080/24p (DCI 2K) signal
  • Built-in histogram, waveform, vector scope, zebra
  • Built-in audio level meter up to 16 channels
  • Lissajous audio metering
  • 3 gamma preset modes
  • Wide array of markers and indicators
  • Two 3G-SDI & dual link inputs
  • IMD (in monitor display)
  • Optimized I-P conversion
  • Supports the EIA/CEA-708 and EIA/CEA-608 SDI closed captioning standards
  • Color temperature settings (9300K, 6500K, 5600K, or user mode)
  • IP modes normal, field, and cinema (24p)
  • Pixel-by-pixel (1:1) display
  • Timecode display (SDI)
  • Built-in stereo speaker
  • Tillable stand with two-way installation capability
Write Your Own Review
You're reviewing:JVC DT-V17G2Z 17" Broadcast Field / Studio Monitor
Your Rating

Items Included:

  • JVC DT-V17G2Z 17" Broadcast Field / Studio Monitor
  • Carrying Handle
  • AC Power Cord
  • Power Cord Holder
  • Core Filter
  • Mounting Hardware
  • Limited 1-Year Warranty

DT-V17G2Z - Specification

More Information
LCD Panel
Type:17" / 43 cm wide, active matrix TFT
Effective Screen Size:14.4 x 8.1 x 16.5" / 36.5 x 20.5 x 42 cm
Number of Pixels:1920 x 1080
Aspect Ratio:16:09
Number of Colors:16.77 million
Viewing Angle:Horizontal/Vertical: 178°/178
Brightness:300 cd/m2
Contrast Ratio:1500:01:00
Frequency:H: 31.467 to 75.000 kHz
V: 49.990 to 75.062 Hz
Format:3G-SDI: SMPTE424AM/SMPTE425M
Dual/Link HD SDI: SMPTE372M
HD SDI: BTA S-004C, SMPTE292M
SD-SDI: IRU-R BT.656 - 525/625, SMPTE259M - 525
Embedded Audio: SMPTE299M, SMPTE272M
Audio Output:Internal Speaker: 1 W + 1 W
Input/Output
Video:Composite Signal: 1 Line, 2 x BNC connector, 1 V p-p, 75 Ohms
HDMI: 1 x HDMI connector, HDMI signal input (compatible with HDCP)
Composite (Y, PB/B-Y, PR/R-Y): 1 Line, Y: 1 V p-p, 75 Ohms (with sync), P/B-Y, PR/R-Y: 7 V p-p, 75 Ohms
3G/HD/SD SDI (Input 1/2): Digital signal input (compatible with embedded audio signals) - 2 x BNC connector, auto detection, 2 Line
3G/HD/SD SDI (Output 1): Digital signal input (compatible with embedded audio signals) - 1 Line, 1 x BNC connector
3G/HD/SD SDI (Output 2: Switched Out): Digital signal input (compatible with embedded audio signals) - 1 Line switched out, 1 x BNC connector
Audio:Audio Assign (Input 1/2): Analog audio signal input - 2 Line, 2 x RCA connector, 1 x Stereo mini jack, 500 mV (RMS), high-impedance
Audio Assign (Monitor Out): Analog audio signal output - 1 Line, 2 x RCA connector, 500 mV (RMS)
External Control:RS-485, RS-232C
General
Operating Temperature:41 to 95°F (5 to 35°
Operating Humidity:20 to 80% (non-condensing)
Power Requirements:120/220 to 240 VAC, 50/60 Hz or 12 to 17 VDC
Dimensions:With Stand: 16.9 x 13.8 x 8.4" / 42.9 x 35.1 x 21.3 cm
Without Stand: 16.9 x 12.2 x 4.1" / 42.9 x 30.9 x 10.4 cm
Weight:With Stand: 18.1 lb / 8.2 kg
Without Stand: 12.8 lb / 5.8 kg
Packaging Info
Package Weight:22.5 lb
Box Dimensions (LxWxH):20.5 x 18.5 x 11.5"
