JVC DT-V24G2Z 24" 10-Bit Studio LCD Monitor

SKU
DT-V24G2Z
image-icon
$3,895.00
Add to Wish List Add to Compare
Email

Product Highlights:

  • Lissajous audio metering
  • Four gamma preset modes
  • Two 3G-SDI and dual-link inputs
  • IMD (In-Monitor Display)
  • Optimized I-P conversion
  • Pixel-by-pixel (1:1) display
  • Timecode display (SDI)

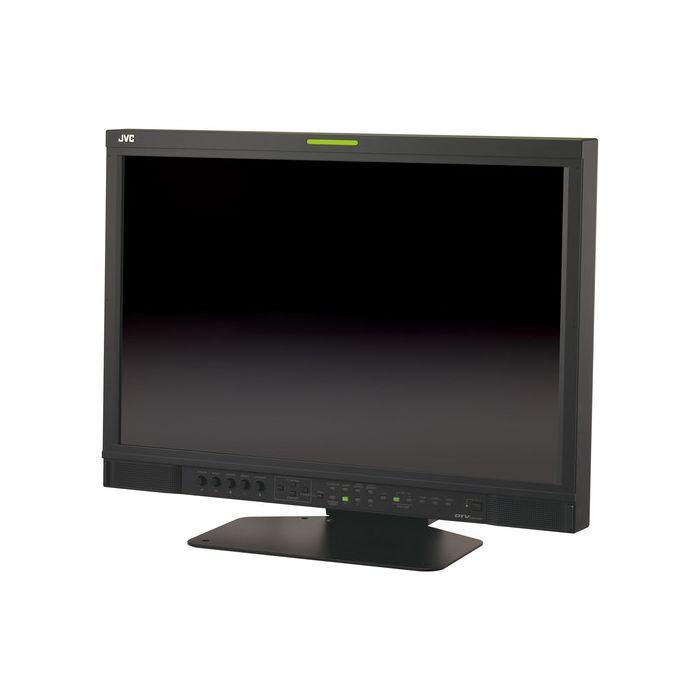

main product photo

The JVC DT-V24G2Z 24" 10-Bit Studio LCD Monitor features a 10-bit panel and wide gamma range, making it suitable for critical image evaluation. The monitor is fully capable of displaying 1920 x 1200 signals, and offers a contrast ratio of 1500:1. It also offers wide viewing angles of 178°/178° and a brightness rating of 400 cd/m2.

The studio monitor supports EIA/CEA-708 and EIA/CEA-608 SDI closed captioning standards. It comes with a built-in stereo speaker and a tiltable stand with two-way installation capability.

  • 10-bit IPS panel with 1.073 billion color reproduction
  • 1500:1 contrast ratio
  • WUXGA resolution: 1920 x 1200 pixels
  • Built-in histogram, waveform, vectorscope, and zebra pattern
  • Built-in audio level meter, up to 16 channels
  • Lissajous audio metering
  • Four gamma preset modes
  • Wide array of markers and indicators
  • Two 3G-SDI and dual-link inputs
  • IMD (In-Monitor Display)
  • EBU 100% equivalent color spectrum
  • Optimized I-P conversion
  • Color temperature settings: 9300K, 6500K, 5600K, or User mode
  • IP modes: Normal, Field, and Cinema (24p)
  • Pixel-by-pixel (1:1) display
  • Timecode display (SDI)
Write Your Own Review
You're reviewing:JVC DT-V24G2Z 24" 10-Bit Studio LCD Monitor
Your Rating

Items Included:

  • JVC DT-V24G2Z 24" 10-Bit Studio LCD Monitor
  • Tilting Desk Stand
  • AC Power Cord
  • Power Cord Holder
  • Core Filter
  • 2 x Screw
  • Limited 1-Year Warranty

DT-V24G2Z - Specification

More Information
General
Monitor Type:Multi-format LCD monitor
Screen Size:24" (61 cm) measured diagonally
Resolution:1920 x 1200
Display Colors:1.073 billion
Viewing Angle:178° / 178° (H /
Brightness:400 cd/m2
Contrast Ratio:1500:01:00
Signal System:Not specified by the manufacturer
Response Time:Not specified by the manufacturer
Aspect Ratio:16:10
LCD Panel:24" (61 cm) diagonal, active matrix TFT
Effective Screen Size:W x H: 20.4 x 12.8" (51.8 x 32.4 cm)
Standards:3G-SDI (Ready): SMPTE 424M / SMPTE 425M; dual-link
HD-SDI (Ready): SMPTE 372M
HD-SDI: BTA S-004C, SMPTE 292M
SD-SDI: ITU-R BT.656 (525 / 625), SMPTE 259M (525)
Embedded Audio: SMPTE 299M, SMPTE 272M
Audio Output:Internal: 1 W + 1 W (L/R)
Energy Efficiency Class:C
Rated Current:North America: 0.72 A (120 VAC)
Europe: 0.42 A (220 to 240 VAC)
Video I/O:In 1:
3G/HD/SD-SDI

In 2:
3G/HD/SD-SDI (compatible with embedded audio/dual-link signals; auto detection)
2 x Lines
2 x BNC connector

1 x HDMI In (compatible with HDCP)

1 x Component In:
Y: 1 Vpp, 75 Ohms (with sync)
PB/B-Y, PR/R-Y: 0.7 Vpp, 75 Ohms

1 x Composite Input/Output
2 x BNC, 1 Vpp, 75 Ohms
((In and Out are connected with a bridge connection; auto termination)

Out 1:
3G/HD/SD-SDI (compatible with embedded audio signals)
1 x Line, BNC connector

Out 2:
3G/HD/SD-SDI (switched out; compatible with embedded audio signals)
1 x Line, switched out
1 x BNC connector
Audio I/O:In 1:
2 x Analog signal lines
2 x RCA connectors
1 x 3.5 mm stereo mini jack

In 2:
500 mV (rms), high impedance

Output:
Audio assign (monitor out)
1 x Analog signal line
2 x RCA, 500 mV (rms)
External Control:Make/Trigger: RJ-45
RS-485: RJ-45
RS-232C: D-Sub (9-pin)
Operating Temperature:41 to 95°F (5 to 35°
Storage Temperature:-4 to 140°F (-20 to 60°
Operating Humidity:20 to 80%, non-condensing
Power Requirements:120/220 to 240 VAC, 50/60 Hz
Power Consumption:On: 38.9 W
Standby: 0.29 W
Annual Energy Consumption: 57 kWh/year
Dimensions (W x H x D):With Stand: 22.3 x 17.7 x 9.6 " (56.4 x 44.9 x 24.3 cm)
Without Stand: 22.3 x 16.1 x 3.9" (56.4 x 40.8 x 9.9 cm)
Weight:With Stand: 23.4 lb (10.6 kg)
Without Stand: 17.0 lb (7.7 kg)
Packaging Info
Package Weight:29 lb
Box Dimensions (LxWxH):26 x 22.3 x 13"
Audio Input In 1:
2 x Analog signal lines
2 x RCA connectors
1 x 3.5 mm stereo mini jack

In 2:
500 mV (rms), high impedance
Video O/P Out 1:
3G/HD/SD-SDI (compatible with embedded audio signals)
1 x Line, BNC connector

Out 2:
3G/HD/SD-SDI (switched out; compatible with embedded audio signals)
1 x Line, switched out
1 x BNC connector
Video i/p In 1:
3G/HD/SD-SDI

In 2:
3G/HD/SD-SDI (compatible with embedded audio/dual-link signals; auto detection)
2 x Lines
2 x BNC connector

1 x HDMI In (compatible with HDCP)
Audio Output Output: Audio assign (monitor out) 1 x Analog signal line 2 x RCA, 500 mV (rms)
