JVC DT-V9L5U 8.2" Broadcast Studio Monitor
SKU
DT-V9L5U
$995.00
Product Highlights:
- 8.2" IPS Panel with LED Backlight
- 1280 x 800 Resolution / 800:1 Contrast
- 360 Nit Bright / 160° Viewing Angle
- 3G-SDI, HDMI, Analog BNC, and RCA Audio
- 16 Channel SDI Audio Level Metering
- SDI Timecode Display
- Front and Rear Tally Lamps
- Waveform, Vectorscope, Under/Overscan
- 1W Internal Mono Speaker
- AC Adapter Included
The JVC DT-V9L5U 8.2" Broadcast Studio Monitor features a 16:10 widescreen, active matrix, TFT LCD with a gloss surface and an LED backlight. The resolution is 1280 x 800, contrast ratio 800:1, and brightness 360 nit. The viewing angle is 160°. The monitor powers by an included AC adapter.

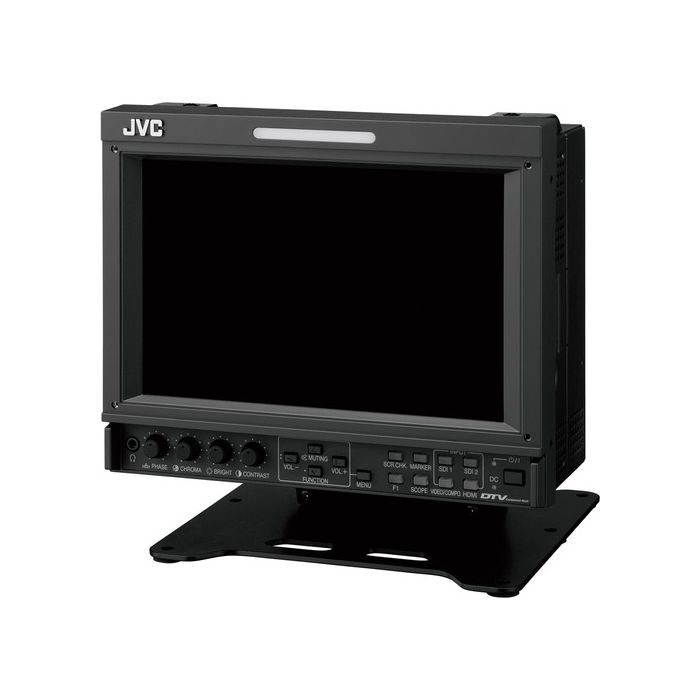

Front panel controls include phase, chroma, brightness, and contrast adjustment knobs, and input selection and marker buttons. The front panel also has a wide-sized tally light, and a second tally light is on the rear.
Key Features
- 8.2" IPS panel with 1280 x 800 resolution
- Mercury-free white LED backlight
- 800:1 contrast ratio
- 360 nit brightness
- 160 x 160° viewing angle
- 16 channel SDI audio level metering
- Area/Center/Aspect marker
- SDI timecode display
- Front and rear tally lamps
- 1W internal mono speaker
- AC adapter included
- Tabletop stand included
- Supports Anton Bauer battery plates on the rear
Inputs / Outputs
- Two 3G/HD/SD-SDI inputs and one switched out output
- Bridge-connected Composite BNC input and output
- HDMI input
- Component input on 3x BNCs
- RCA audio input on one connector
- RCA L/R audio output
- Front panel headphone jack
- RJ-45 Make/Trigger
- D-Sub9 RS-232C
Image Analysis Tools
- Waveform
- Vectorscope
- Underscan / Overscan
Write Your Own Review
Items Included:
- JVC DT-V9L5U 8.2" Broadcast Studio Monitor
- AC Power Cord
- Tabletop Stand
- Protective Screen Filter with Four Screws
- Power Cord Holder with Two Screws
- Limited 1-Year Warranty
|
