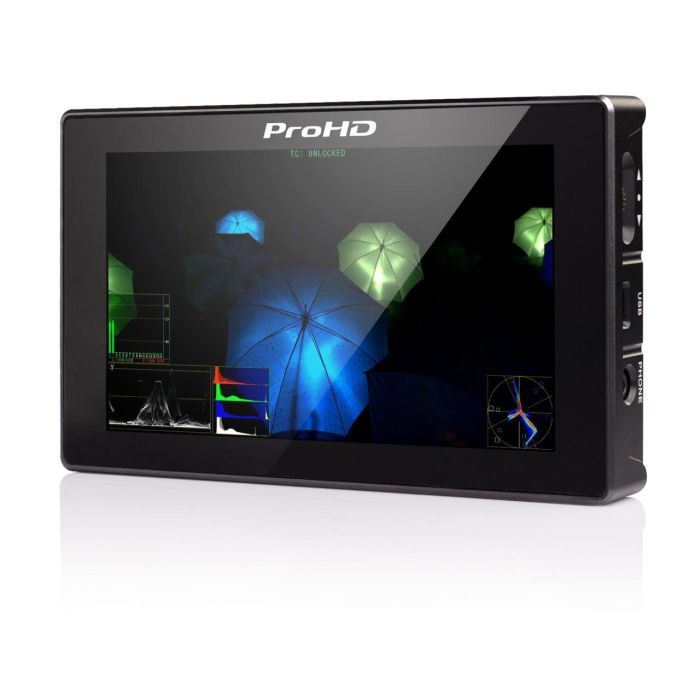

JVC DT-X53F 5.5" LCD 1920x1200 Field Monitor

As an extension of JVC monitor portfolio, we can now offer the DT-X series of monitors with new small panel sizes. These are ideal to be used on cameras, or as control monitors in a system rack (DT-X93Hx2).

All monitors are full HD resolution, are very robust and have a wide range of accessories. The monitors support 3G HD-SDI and input signals up to 2048x1080 50/60P. The individual models DT-X53 / X73 / X92 are equipped with waveform/vectorscope and histogram measurement tools, and there’s even a row selector for the waveform display. 16-channel audio level metering and all standard marker functions are also integrated.

The monitors’ function keys can be programmed with your favourite functions. If you use the monitors out on location, we would recomment the PRO package, which also comes with a robust transport case and other useful accessories.

For image control in playout or OB van applications, there’s the DT-X93Hx2 – a dual 9” 1920x1200 pixels rack-mounted monitor. This unit has all the basic functions from the DT-X series, except the waveform/vector/histogram functions, which were removed to keep the costs as low as possible.
