Product Highlights:
- 1920 x 1200 Native Resolution
- ±30° Rotatable
- 160° Viewing Angle
- 2K/3G/HD/SD-SDI, HDMI Monitoring
- Up to 16-Channel Embedded Audio Meters
- 3D LUT Cube File Import
- Peaking Focus Assist, Zebra Stripes
- Timecode, Tally Light, GPI Control
- USB Firmware Upgrade

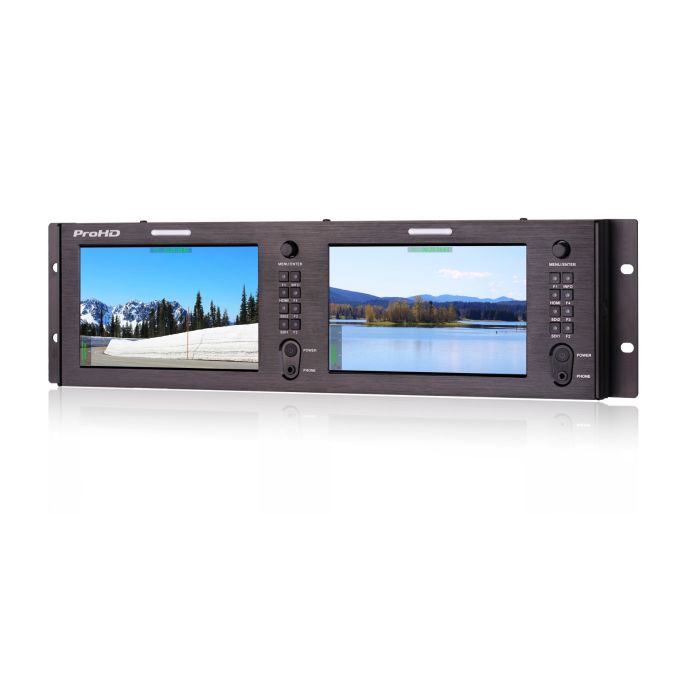

Suitable for studio and field production, the 3 RU rackmount Dual 7" Full HD 4K-HDMI LCD Rack Monitor from JVC offers dual 7" LCD panels with 1920 x 1200 resolution, 4K input support, 400 cd/m² brightness, 1000:1 contrast, and a wide 160° viewing angle.
The panels support a long list of features such as peaking focus assist, Red/Green/Blue/Mono display, zebra stripes, false color, timecode display, H/V delay, AFD, GPI control, front tally lights, and other functions used in broadcast applications. Each display has two 3G/HD/SD-SDI loop-through inputs, one 3G/HD/SD-SDI output, and an HDMI input and output. Audio features include a 3.5mm headphone output, monitoring of up to 16 audio channels, and your choice of any two audio channels for output. Each panel supports 4:3, 13:9, 14:9, 15:9, 1.85:1, and 2.35:1 markers and 9-step quick zoom-in and mapping.
A USB input allows you to load 3D LUT cube files as well as upgrade the firmware. A power adapter is included with the unit.
- Dual 7" panels, 1920 x 1200 resolution, no-glare, 2K/3G/HD/SD-SDI, HDMI 2.0 (4K60p) monitoring
- Up to 16-channel embedded audio meters with alert
- 19" 3 RU rack mount installation, ±30° rotatable
- Peaking focus assist with precision adjustment
- User 3D LUT cube file import via USB, multi-camera logs to Rec.709 conversion
- Front tally light, GPI control, H/V delay, AFD, timecode display
- 4:3, 13:9, 14:9, 15:9, 1.85:1, and 2.35:1 markers
- USB firmware upgrade
Items Included:
- JVC Dual 7" Full HD 4K-HDMI LCD Rack Monitor
- Power Adapter
- Limited 2-Year Warranty
