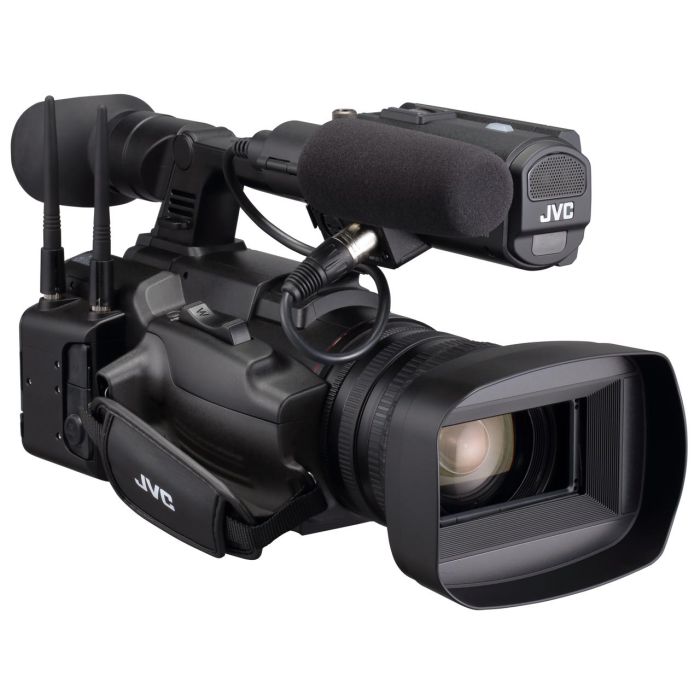

JVC GY-HC550ESBN 4K live streaming camcorder with broadcast and sports score overlays and NDI support

SKU
GY-HC550ESBN
Request for Price

Product Highlights:

  • 1" (effective) CMOS sensor with high picture quality
  • F12 Sensitivity
  • Sports and Broadcast overlay on video and streaming
  • NDI|HX output capability in Full HD up to 20Mbps
  • 4K UHD 60p/50p ProRes 4:2:2 10-bit recording to SSD*

The JVC GY-HC550ESB handheld 4K camcorder features class-leading streaming and IP connectivity, supports NDI|HX and 10-bit Apple ProRes 422 50/60p recording in both 4K and HD to SSD. This version includes Sports overlay and Broadcast overlay, making it ideal for ENG, production and sports, with the camera providing IP connectivity from any location to anywhere in the world.

Features:

  • 1" (effective) CMOS sensor with high picture quality
  • F12 Sensitivity
  • Sports and Broadcast overlay on video and streaming
  • NDI|HX output capability in Full HD up to 20Mbps
  • 4K UHD 60p/50p ProRes 4:2:2 10-bit recording to SSD*
  • NEW HD Recording to SSD*
  • 4K UHD 30p/25p/24p 4:2:0 8-bit recording to SDHC/SDXC card
  • HDR recording, HLG or J-Log1 (10-bit)
  • Backup to SSD*
  • Newly-developed 4K lens with 20x zoom
  • 40x lossless dynamic zoom
  • 4K Rec + HD streaming + 4K HDMI output
  • Low latency and high-quality streaming up to 20Mbps
  • NEW SRT Live Streaming Protocol (optional selection ZIXI or SRT) also RTMPS Protocol available
  • NTP Time server supported
  • High performance 1080 60p/50p live streaming
  • Auto FTP to upload native video clips automatically
  • NEW Progressive Auto FTP File transfer
  • Return over IP (Return video and IFB)
  • Built-in wireless LAN (2.4GHz/5GHz) MIMO with external antenna
  • LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
  • 4-inch high resolution LCD monitor
  • XLR audio connectors
Write Your Own Review
You're reviewing:JVC GY-HC550ESBN 4K live streaming camcorder with broadcast and sports score overlays and NDI support
Your Rating

Items Included:

Battery
Yes, BN-VC296G
AC/DC adapter
Yes, AC Adapter
Cable 1
Yes, Power cord
Additionals
        Yes, Wireless Antennas 2x, Lens Cap
More Information
SPECS
Camera Front-End Specifications Image Sensor (inch) 1" (effective) CMOS
  Number of Sensors 1
  Mega Pixels 9,35 mio
  Sensitivity in F at 2000 Lux F 12
  Shutter speed 1/6 to 1/10000
  White Balance Modes FAW, AWA, 3200K, 5600K, Manual
  Color Matrix adjustment Yes
  Wide Dynamic Range Mode (WDR) Yes
  HDR (High Dynamic Range) Yes, HLG/JLOG 1
  LOG Mode Yes, J-LOG HLR
  User selected function buttons Yes
  User Customizes Menu Yes
Optical Specifications Lens Mount Internal
  Optical Zoom X times 20
  Dynamic Zoom x times 40
  Lens F Number 2.8 to 4.5
  Lens ratio from / to 9.43mm to 188.6mm
  Lens ratio equivalent to 35mm 28mm to 560mm
  Auto Focus Yes
  Optical Image stabilization Yes
  Filter Diameter in mm 82mm
  Build in ND Filters 3 Filters: 1/4, 1/16, 1/64 plus OPEN
Recording Formats Media SDHC/SDXC memory card x 2 plus M2 SSD Slot with Adapter* optional
  Media Class 4K/70 Mbps,HD and below Class 10 4K/150Mbps UHS1-U3 (no UHS-2)
  Recording slots 3
  Encoder ProRes, MPEG-4 AVC/H.264 (HD/SD), MPEG-2 (HD)
  ProRes Recording Yes
  File Format MOV Yes
  File Format MP4 Yes
  File Format MXF Yes
  Video Codec MPEG2 Long GOP Yes
  Video Codec MPEG4 AVC/H264 4K/HD Yes
  Video Codec H264 (SD) Yes
  Video Codec others 4K UHD ProRes / Proxy H264
