JVC GY-HM180 Ultra HD 4K Camcorder with HD-SDI

SKU
GY-HM180E
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • 1/2.3" 12.4MP CMOS Sensor
  • Record UHD 4K 24/30p at 150 or 70 Mb/s
  • Live UHD 4K Output via HDMI
  • 4:2:2 1080p Video up to 60p at 50 Mb/s
  • 3G-SDI & HDMI Triggers External Recorder
  • Dual SDHC/SDXC Memory Card Slots
  • 120 fps HD for Smooth Slow Motion
  • Simultaneous Full-Size & Proxy Recording
  • 12x Optical / 24x Digital Zoom Lens
  • 2 x XLR Audio Inputs with Phantom Power

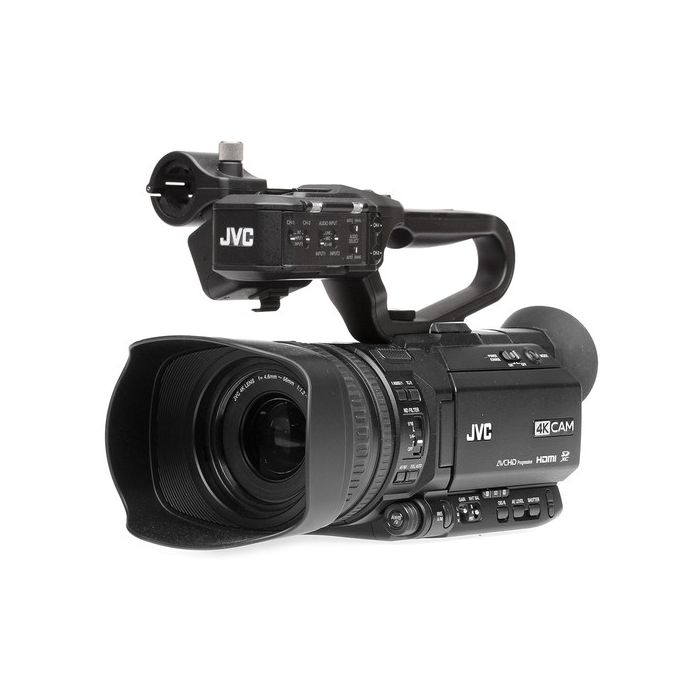

main product photo

The JVC GY-HM180 Ultra HD 4K Camcorder with HD-SDI packs multiple pro features into its compact form, with updates including a 3G-SDI output in addition to an HDMI out. Its single 1/2.3" 12.4MP CMOS sensor captures UHD 4K images in 24 or 30p, at bit rates of 150 or 70 Mb/s, Full HD up to 60p/50 Mb/s, and HD up to 120 fps for smooth slow motion. The 3G-SDI and HDMI outputs can be used to feed and trigger an external recorder.

Lower-res proxy files may be recorded simultaneously with full-size HD files, providing smaller files suitable for posting to the web or editing on the go. Live UHD 4K is output via the HDMI port, with HD video supported via the 3G-SDI BNC port. GY-HM180 viewing options include a 3.5" LCD screen, a 0.24 color viewfinder, and a smart focus-assist function.

Additional features include hot-swappable dual SDHC/SDXC card slots, two internal ND filters, and a histogram display. Pro-style audio features include 2-channel XLR audio inputs and a built-in stereo mic. Capture options include recording 1080p up to 60 fps in a 4:2:2, 50 Mb/s .MOV file, or in AVCHD for compatibility with a variety of HD/SD formats and editing systems. The JVC GY-HM180 comes with a top handle unit, a hood, and an AC adapter with a power cord.

Note:
The included battery is charged on the camera using the AC adapter; a separate battery charger is not included.

UHD 4K Recording at 150 or 70 Mb/s

Record UHD 4K at 150 Mb/s to UHS-I Class 3 or faster SDXC cards, or at 70 Mb/s to Class 10 or higher SDXC/SDHC cards

Live 4K Output via HDMI

Output live 4K via HDMI for monitoring, 4K switcher use, or external recording; output HD using the 3G-SDI BNC connector

HD Recording in MOV or AVCHD

Capture 4:2:2 HD images in MOV-wrapped 50 Mb/s files, or in 4:2:0 AVCHD files for compatibility with a variety of HD/SD formats and editing systems

Dual Media Recording

Two SDHC/SDXC memory card slots enable simultaneous recording to provide a backup or relay recording with hot-swapping for uninterrupted shooting

Simultaneous Proxy Capture

Record lower-resolution proxy files at the same time as full-size HD; these smaller files are perfectly suited for posting to the web, or for quick editing

Color Viewfinder and 3.5" LCD

A 3.5" color LCD panel features a 920,000-pixel resolution, while the 0.24" viewfinder offers a crisp 1.56 million-pixel resolution

12x Optical / 24x Dynamic Zoom

The 12x optical / 24x digital zoom uses pixel mapping in HD mode for seamless extended zooming

Two-Position ND Filter

Use the two-position ND filter (1/4 and 1/16) for adjustable image control, including the use of a slower shutter speed for more natural motion blur

Audio Features

Pro-style audio features include XLR audio inputs with phantom power for external mics, as well as a built-in stereo mic
Write Your Own Review
You're reviewing:JVC GY-HM180 Ultra HD 4K Camcorder with HD-SDI
Your Rating

Items Included:

  • JVC GY-HM180 Ultra HD 4K Camcorder with HD-SDI
  • AC Adapter
  • Power Cord
  • BN-VF823 Battery
  • Top Handle Unit
  • Hood
  • Limited 1-Year Manufacturer Warranty
JVC GY-HM180E - User Manual (Size: 10.9 MB)
More Information
SPECS
Imaging Sensor Resolution Effective: 12.4 Megapixel
  Sensor Type 1/2.33"-Type CMOS Sensor
  Image Stabilization Optical in Integrated Lens
  Built-In ND Filter Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16) ND Filters
  Capture Type Video Only
Exposure Control Shutter Type Not Specified by Manufacturer
  Shutter Speed 1/10000 to 1/6 Second
  Gain 0 to 24 dB (Native)
30 to 36 dB (Expanded)
  White Balance 2300 to 15,000K
Lens Focal Length Not Specified by Manufacturer
  Optical Zoom Ratio 12x
  Max Digital Zoom 24x
  Maximum Aperture f/1.2 to 3.5
  Minimum Aperture f/1.2 to 3.5
  Minimum Focus Distance Not Specified by Manufacturer
  Filter Size 62 mm
  Control Rings Focus
Zoom
  Focus Control Autofocus
Manual Focus
Video Capture Internal Recording Modes H.264 4:2:2
3840 x 2160 at 23.98/25/29.97 fps [70 to 150 Mb/s]
H.264
1920 x 1080p at 23.98/25/29.97/50/59.94/100/ fps [50 Mb/s]
1920 x 1080i at 50/59.94 fps [50 Mb/s]
1280 x 720 at 50/59.94 fps [35 Mb/s]
960 x 540 at 23.98/25/29.97 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps
480 x 270 at 23.98/25/29.97 fps
AVCHD
1920 x 1080p at 50/59.94 fps [28 Mb/s]
1920 x 1080i at 50/59.94 fps [24 Mb/s]
720 x 576i at 50 fps [8 Mb/s]
1440 x 1080i at 50/59.94 fps [9 Mb/s]
720 x 480i at 59.94 fps [8 Mb/s]
720 x 576i at 50 fps [8 Mb/s]
  Fast-/Slow-Motion Support Yes
  Built-In Microphone Type Stereo
  Audio Recording AVCHD: 2-Channel 16-Bit 48 kHz LPCM Audio
  IP Streaming None
Interface Media/Memory Card Slot Dual Slot: SD/SDHC/SDXC [U3/V30 or Faster Recommended]
  Video I/O 1 x BNC (3G-SDI) Output
1 x HDMI Output
1 x 1/8" / 3.5 mm TRRS A/V Output
  Audio I/O 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm TRRS Headphone/Mic Output
  Power I/O 1 x Barrel (12 VDC) Input
  Other I/O 1 x 2.5 mm Sub-Mini Control
1 x USB-A Data
  Wireless None
  Global Positioning (GPS, GLONASS, etc.) None
Monitor Size 3.5"
  Resolution 920,000 Dot
  Display Type Articulating LCD
Viewfinder Type Built-In Electronic (LCD)
  Size 0.24"
  Resolution 1,560,000 Dot
Focus Focus Type Auto and Manual Focus
  Focus Mode Automatic, Manual Focus
Environmental Operating Temperature 32 to 72°F / 0 to 40°C
  Storage Temperature -4 to 122°F / -20 to 50°C
  Operating Humidity 30 to 80%
  Storage Humidity 0 to 85%
General Battery Type JVC BN-VF823
  Power Consumption ≥8 W
  Tripod Mounting Thread 1/4"-20 Female
  Accessory Mount 1 x 1/4"-20 Female
1 x Cold Shoe Mount
  Dimensions (W x H x D) 12.1 x 7.5 x 5.9" / 307 x 191 x 149 mm (With Handle)
  Weight 2.43 lb / 1.1 kg
Packaging Info Package Weight 5.775 lb
  Box Dimensions (LxWxH) 13.6 x 11 x 9.99"
