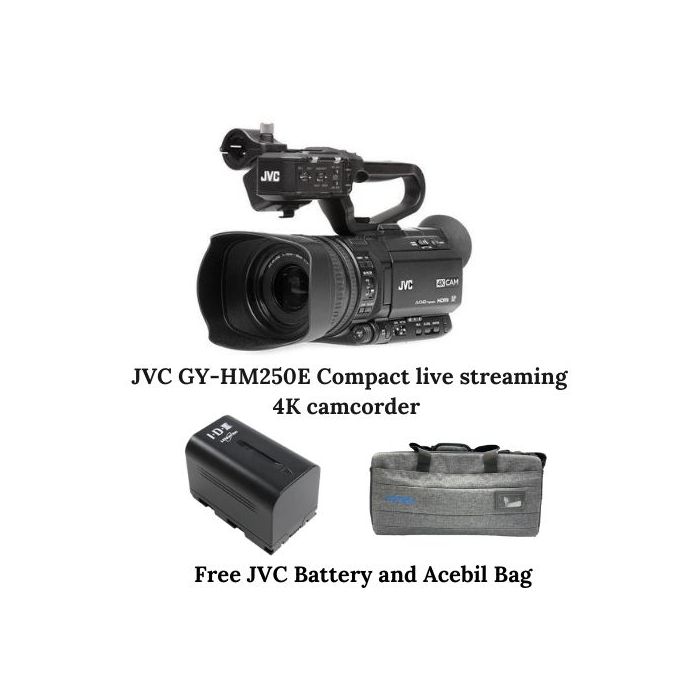

JVC GY-HM250E Compact live streaming 4K camcorder with SDI and broadcast overlay

SKU
GY-HM250E/B
Regular Price $1,895.00 Special Price $1,675.00

Product Highlights :

  • 1/2.3" CMOS Sensor, 12x Optical Zoom
  • Records UHD 4K 24/30p at 70/150 Mb/s
  • IP Control & Full HD Live Streaming
  • 4:2:2 4K Video at 24/30p
  • Lower-Thirds & Titling System in HD
  • Zeroconf, 1-Button LAN Configuration
  • Facebook Live Integration
  • 3G-SDI & HDMI Out, Live HDMI UHD 4K Out
  • 2-Channel XLR Audio Inputs

Free Acebil AB-202 Bag and JVC Battery.

JVC

The JVC GY-HM250 UHD 4K Streaming Camcorder with Built-in Lower-Thirds Graphics is a full-featured pro camcorder that enables a single operator to add lower-thirds and titles while recording in HD or streaming—no external character generator or switcher is required. It features a 1/2.3" sensor and captures UHD 4K video at 24/30p, and 4:2:2 4K at 24/30p. This versatile camera offers you the option of recording UHD 4K at rates up to 150 Mb/s to SDXC Class 3 cards or up to 70 Mb/s to SDXC/SDHC Class 10 cards.

The GY-HM250's integrated IP engine enables you to stream Full HD in the field directly from the camcorder and offers remote camera control and monitoring from your mobile device or laptop. Compatible with RTMP, Zixi, and Wowza streaming, the GY-HM250 offers one-click zeroconf configuration when using a common LAN between cameras. A firmware update brings Facebook Live integration to the camera, streamlining the connection process. In HD mode, custom graphics can be created and controlled via a browser-controlled tablet or smartphone. The GY-HM250 also comes with pre-installed color schemes and the ability to upload icons or logos to add a personalized look to your footage.

An integrated 12x zoom lens with a tele-macro function provides a 35mm equivalent focal range of 29.6 to 355mm, and a 24x dynamic zoom mode is available when recording in HD. For composing and monitoring video, the camcorder features a 3.5" LCD, a 0.24" viewfinder, and a smart focus assist function. Additional features include dual SDHC/SDXC card slots, two internal ND filters, and a built-in stereo microphone. Designed to fit into professional workflows, the JVC GY-HM250 camcorder comes with 3G-SDI and HDMI outputs and dual XLR audio inputs. A top handle unit with the integrated audio box, a 7.4 VDC battery, and an AC adapter are included with the camera.

Note:
Streaming requires a connection and the use of a wireless LAN, Ethernet, or cellular network to USB Type-A, USB 2.0 adapter.
Facebook Live integration simplifies and streamlines by adding it as a menu choice. This is available via a firmware upgrade, which is included with the camera and can be downloaded for free.

UHD 4K Recording with 150 and 70 Mb/s Options

Record UHD 4K at rates up to 70 Mb/s onto lower-cost Class 10 SDHC/SDXC cards, or at 150 Mb/s using SDXC UHS-I Class 3 cards

Add Graphic Overlays in HD or While Streaming

Display custom lower-thirds and titles while recording in HD, or streaming—no external character generator or switcher required

Built-In Streaming Technology

An integrated streaming engine enables the camcorder to live stream Full HD video using RTMP, Zixi, and Wowza
Note:
Requires an appropriate network connection and adapter (USB Type-A, USB 2.0 port)

Live 4K 3G-SDI and HDMI Output

Connect a UHD 4K monitor using either the 3G-SDI or HDMI output and view the camera's live 4K signal

4:2:2 4K and Full HD Recording Options

Record broadcast-quality signals in 4:2:2 4K at 24 or 30p, or capture Full HD at 24 to 60p at rates up to 50 Mb/s

Additional Features

  • 12x optical zoom with 24x dynamic zoom in Full HD
  • 3.5" LCD display, and 2.4" color EVF
  • Dual SDXC/SDHC card slots
  • Two internal ND filter settings
  • 2-channel XLR audio inputs with phantom power
  • Integrated stereo microphone
  • A histogram display aids in calculating your exposure
  • Tally with steady and blinking settings

GY-HM250E/B - Specification

More Information
Camera Front-End Specifications
Image Sensor (inch):1/2,3 Inch CMOS
Image Sensor (inch):1/2,3 Inch CMOS
Mega Pixels:12,4
Shutter speed:1/4 to 1/10000
Color Matrix adjustment:Yes
User selected function buttons:Yes, 13 (9 Buttons 4 Cross shaped)
Testing
Test:amit descrption
Optical Specifications
Lens mount:Internal
Dynamic Zoom x times:24
Lens ratio from / to:4.67mm to 56.04mm
Auto Focus:Yes
Optical Image stabilization:Yes
Build in ND Filters:2 Filters: 1/4, 1/16
Recording Formats
Media:SDHC/SDXC
Recording slots:2
File Format MOV:Yes
Video Codec MPEG4 AVC/H264 4K/HD:Yes
Recording specials:4:2:2 HD Record (H.264,50Mbps)
Simultaneous recording in 2 modes:Yes
Resolution 3840 x 2160:Yes, 29,97p/25p/23.98p
Resolution 1440 x 1080:Yes, 60i/50i
Resolution 720 x 576:Yes, 50i
Resolution 480 x 270:Yes, 30p/25p/24p
High Speed Recording Modes:1920x1080 QuickTime (MPEG-4, AVC/H.264)120fps/100fps
Recording Data rate 2:70 Mbps (UHD)
Recording Data rate 4:35 Mbps (UHQ)
Recording Data rate 6:8 Mbps (SD)
SD Recording:Yes
Pre Rec (retro) recording:Yes, 5 sec. (4K) 5,10,15 sec. (HD/SD)
Audio Channels:2
IP Section of the Product
IP Main Connection:USB A Host
IP Features Live-Streaming:Yes
IP Features FTP:Yes, Different protocols
Live-Streaming Bitrates:1920 x 1080 (59.94i/50i) Audio AAC 128 k 12/8/5/3 Mbps1280 x 720 (59.94p/50p) Audio AAC 128 k 12/8/5/3 Mbps1280 x 720 (29.97p/25p) Audio AAC 128 k 8/5/3/1.5 Mbps720 x 480 (59.94i) 720 x 576 (50i) Audio AAC 128 k/64 k 8/5/3/1.5/0.8/0.3 Mbps640 x 360 (29.97p/25p) Audio AAC 128 k/64k 3/1.5/0.8/0.3 Mbps
Live-Streaming Single cast:Yes
Live-Streaming reconnect:Yes
Live-Streaming Pre-sets of destinations:4
FTP upload during REC:Yes
Meta-Data presets of servers:4
Recommendation for WIFI USB Adapters (EU only):Please Note: Sometimes the Manufacturers change the Revision of the Chip-sets, but product name not changed, we can´t track such issues so may its possible that such a dongles even its mentioned here, may not work.The Adapters below are work able in the 2,4 GHz and 5 GHz infrastructure.
WIFI Dongle 2:EnGenius EUB1200AC /Realtek RTL8812AU
WIFI Dongle 4:D-LINK DWA-172 (revA1) /Realtek RTL8811AU
WIFI Dongle 6:D-LINK DWA-171(revA1) /Realtek 8811AU
WIFI Dongle 8:Wideland (over Amazon) ACWIFI DEWIFIC001A
Recommendation for Adapters
Ethernet Dongle 1:EDIMAX EU-4208
Ethernet Dongle 3:Hamlet HNU2GTX
Recommendation for 3G/4G (LTE) Adapters:Dear Customer, for the most countries we have a recommendation of adapters, please download our info sheet for LTE support, below you find a special recommendation, which should work in the most countries.
Special Features
Overlay for Broadcast-News:Yes
Text support:Yes
Watermark:Yes, Free Position
LIVE Logo:Yes, Self design
IN-OUT´s Connections
OUT HDSDI:Yes, 3G HDSDI
OUT HDMI:Yes
OUT AV:Yes, 3.5mm mini jack
OUT Audio Headphone:Yes, 1 times 3.5mm mini jack
IN Audio AUX:Yes, 1 times 3.5mm mini jack
Wired remote IN:Yes, serial LANC 2.5mm mini jack
USB Data Exchange (Storage):Yes
EVF and LCD
Operation Panel Type:LCD
Operation Panel Size diagonal in inch:3.5
Electronic Viewfinder (EVF) Resolution:1,56M
Power and Enviroment Spec´s
Power AC:Yes, DV12V(AC Adapter)
Battery types:SSL-JVC50 / SSL-JVC75 IDX
Operation Temperature in Celsius degrees:0 to 40
Operation Humidity in %:30 to 80
Mechanical Informations
Weight in kg:1,6 include battery
Measurements (WxHxD) in mm:W 149 x H 191 x D 307
Handle removable:Yes
Include Package
Battery:Yes, 1 SSL-JVC50
AC/DC adapter:Yes
Handle unit:Yes, with Professional Audio XLR support

Items Included:

  • JVC GY-HM250 UHD 4K Streaming Camcorder with Built-in Lower-Thirds Graphics
  • Handle Unit
  • JVC SSL-JVC50 7.4V IDX Lithium-Ion Battery for JVC Camcorders
  • AC Adapter
  • Lens Hood
  • Limited 1-Year Warranty
