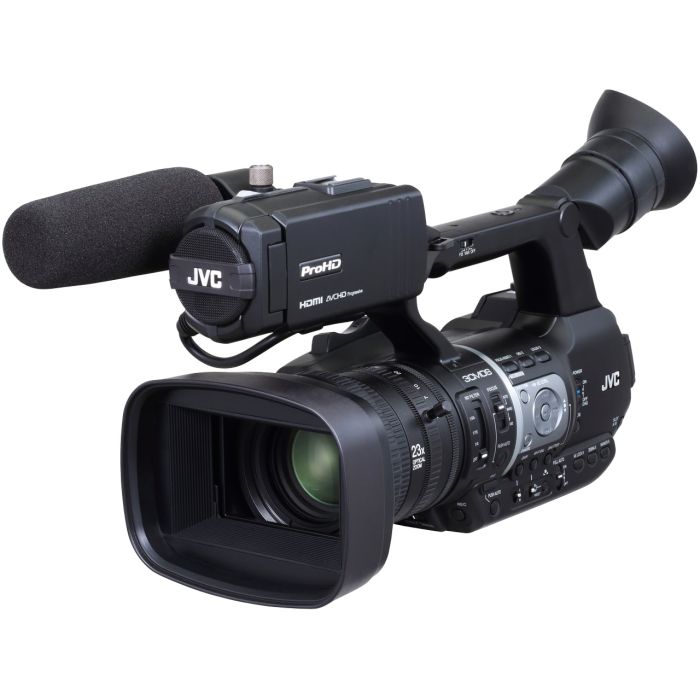

JVC GY-HM620E HD ENG Camcorder


Product Highlights :

  • Three 1/3" 12-Bit CMOS Sensors
  • Full HD Up to 59.94p/ Records SD Video
  • Integrated Fujinon 23x Optical Zoom Lens
  • Supports .MOV, .MP4, and AVCHD 2.0

The JVC GY-HM620 ProHD Mobile News Camera features a lightweight-user-friendly design providing capacity for fast, efficient mobile newsgathering. The GY-HM620 offers Dual media card slots that allow you to record virtually endlessley by swapping out media cards as they fill up.

GY-HM620E - Specification

Camera Front-End Specifications
Number of Sensors:3
Mega Pixels:2,2
Gain in dB:
Sensitivity in F at 2000 Lux:F 13
Shutter speed:1/4 to 1/10000
White Balance modes:FAW, AWA, 3200K, 5600K, Manual
Color Matrix adjustment:Yes
Wide Dynamic Range Mode (WDR):Yes
User selected function buttons:Yes, 11 (7 Buttons 4 Cross shaped)
User Customizes Menu:Yes
Optical Specifications
Lens mount:Internal
Optical Zoom X times:23
Lens F Number:1.6 to 3
Lens ratio from / to:4.1mm to 94.3mm
Lens ratio equivalent to 35mm:29mm to 667mm
Auto Focus:Yes
Special Auto Focus Features:Area Focus, Near/Far Modes, Face
Optical Image stabilization:Yes
Filter Diameter in mm:72mm
Build in ND Filters:3 Filters: 1/4, 1/16, 1/64 /
Memory for Zoom Position:Yes, In and end points, with acceleration set up
Recording Formats
Media Class:Class 10
Recording slots:2
Encoder:MPEG2 / H.264
File Format MOV:Yes
File Format MP4:Yes
File Format AVCHD:Yes
Video Codec MPEG2 Long GOP:Yes
Video Codec AVCHD:Yes
Video Codec H264 (SD):Yes
Simultaneous recording on 2 cards:Yes
Recording Resolution Formats:
Resolution 1920 x 1080:Yes, 60p/50p/30p/25p/24p/60i/50i
Resolution 1440 x 1080:Yes, 60i/50i
Resolution 1280 x720:Yes, 60p/50p/30p/25p/24p
Recording Data rate 1:19Mbps(SP), 25Mbps(SP), 35Mbps(HQ)
Recording Data rate 2:5,9,18,24,28Mbps (AVCHD)
Recording Data rate 3:35Mbps (UHQ)
Recording Data rate 4:50Mbps (XHQ)
SD Recording:Yes
Over / Under Crank:Yes
Pre Rec (retro) recording:Yes, 20 sec.
Clip Trimming:Yes
Audio Channels:2
Audio Recording modes:LPCM 2ch, 48 kHz/16 bit (MPEG-2 Long GOP/H.264), AC3(AVCHD)
Audio Filters:Yes, Wind-Cuts, Limiters, Gains
Audio Equalizer:Yes, Graphical
IN-OUT´s Connections
OUT HDSDI:Yes, 1080i 1,5 GBit
OUT HDSDI Format max.:1080i/60/50 8Bit 4:2:2
OUT HDMI Format max.:1920x1080 60/50p 8 Bit 4:2:2
OUT AV:Yes, 3.5mm mini jack
OUT Audio Line:Yes, AV out
OUT Audio Headphone:Yes, 2.5 mm mini jack
IN Audio XLR MIC/LINE:Yes, 2 CH with +48 V Mic and Line support
IN Audio AUX:Yes, 3.5 mm mini jack
Build in Microphones:Yes, Stereo MIC
Time code IN/OUT:Yes
Wired remote IN:Yes, 2.5mm mini jack LANC
USB Data Exchange (Storage):Yes
Operation Panel Type:LCD
Operation Panel Resolution:920K
Operation Panel Size diagonal in inch:3.5
Electronic Viewfinder (EVF) Type:LCOS
Electronic Viewfinder (EVF) Resolution:1,22 Mp
Electronic Viewfinder (EVF) Size diagonal in:0.45
Power and Enviroment Spec´s
Power AC:Yes, AC/DC Adapter
Power DC:Yes, 12 Volt, Battery 7,4V
Battery types:SSL-JVC50 / SSL-JVC75 IDX
Power consumption:Approximate 10W with VF in REC mode, default settings
Operation Temperature in Celsius degrees:0 to 40
Storage Temperature in Celsius degrees:-20 to 50
Operation Humidity in %:30 to 80
Storage Humidity under %:85
Mechanical Informations
Weight in kg:2.4 include battery
Measurements (WxHxD) in mm:W 178 x H 198 x D 416
  • JVC GY-HM620E HD ENG Camcorder
  • Battery SSL-JVC50
  • Power Cord
  • Instruction Manual
  • AC Adapter
