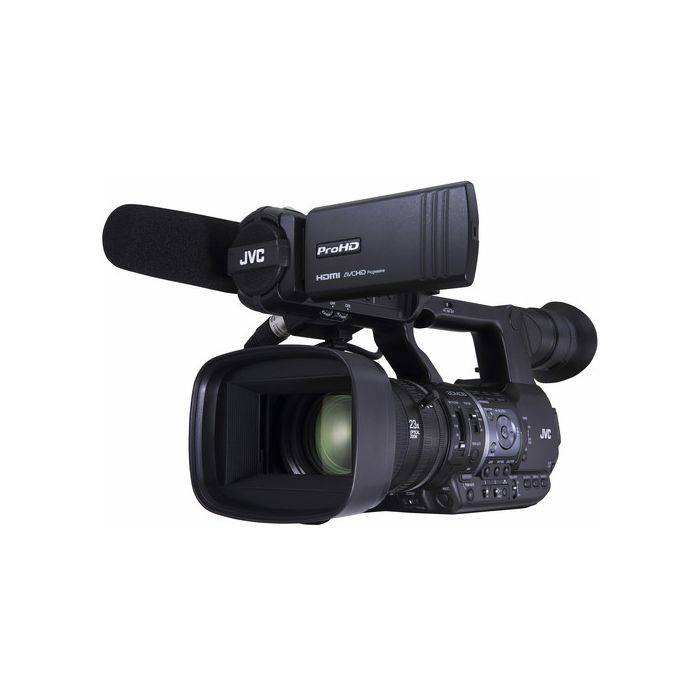

JVC GY-HM660RE HD ENG live streaming camcorder


Product Highlights:

  • Three 1/3" 12-Bit CMOS Sensors
  • Full HD Up to 59.94p/ Records SD Video
  • Integrated Fujinon 23x Optical Zoom Lens
  • Supports .MOV, .MP4, and AVCHD 2.0

The JVC GY-HM660 ProHD Mobile News Streaming Camera features a lightweight-user-friendly design providing capacity for fast, efficient mobile newsgathering. The GY-HM660 offers built-in GPS, Wi-Fi connectivity allowing FTP file uploads, and remote control and remote viewing Apps for both iOS and Android. Also, a dual codec recording capacity allows for simultaneous HD + SD or HD + ¼ HD capture for web delivery. The built-in streaming functionality enables you to record internally, while simultaneously streaming. Please note that streaming from the camera requires that you source a Wi-Fi adapter, 4G LTE modem, or a LAN connector that connects to the camera's USB port.

GY-HM660RE - Specification

Camera Front-End Specifications
Image Sensor (inch):1/3 CMOS
Mega Pixels:2,2
Sensitivity in F at 2000 Lux:F 13
White Balance modes:FAW, AWA, 3200K, 5600K, Manual
Wide Dynamic Range Mode (WDR):Yes
User Customizes Menu:Yes
Optical Specifications
Lens mount:Internal
Lens F Number:1.6 to 3
Lens ratio equivalent to 35mm:29mm to 667mm
Special Auto Focus Features:Area Focus, Near/Far Modes, Face
Filter Diameter in mm:72mm
Memory for Zoom Position:Yes, In and end points, with acceleration set up
Recording Formats
Recording slots:2
File Format MOV:Yes
File Format AVCHD:Yes
Video Codec MPEG2 Long GOP:Yes
Video Codec H264 (SD):Yes
Recording Resolution Formats:
Resolution 1440 x 1080:Yes, 60i/50i
Resolution 720 x 576:Yes, 50i
Resolution 480 x 270:Yes, 30p/25p/24p
Recording Data rate 2:5,9,18,24,28Mbps (AVCHD)
Recording Data rate 4:50Mbps (XHQ)
Recording Data rate 6:5, 3, 0.8 (WEB)
Over / Under Crank:Yes
Clip Trimming:Yes
Audio Recording modes:LPCM 2ch, 48 kHz/16 bit (MPEG-2 Long GOP/H.264), AC3(AVCHD)
Audio Equalizer:Yes, Graphical
IP Section of the Product
IP Main Connection:USB A Host
IP Features Live-Streaming:Yes
IP Features FTP:Yes
IP Features IFB (Audio-Return via IP):Yes, With external encoder device
Live-Streaming Protocols:RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIXI
Live-Streaming Multicast:Yes
Live-Streaming and simultaneous REC:Yes
FTP Protocol formats:FTP / SFTP / FTPS
FTP servers presets:4
Note for all kind of USB Adapters:The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder). Please select the device which you are going to use: WIFI dongle / 3G/4G dongle or a CAT Network adapter.The Adapter you going to be use must be a registered Adapter (see attached compatible list), cause all of these Adapter needs dedicate drivers, which to be implemented into the camcorder.In the case for LTE adapters, there must be done a pre-set of these dongles in your local PC first!
WIFI Dongle 1:Sitecom WLA.1001
WIFI Dongle 3:ASUS USB1200AC /Realtek RTL8812AU
WIFI Dongle 5:EDIMAX EW-781UTC /Realtek RTL8811AU
WIFI Dongle 7:TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!!
Recommendation for Ethernet adapters:
Ethernet Dongle 2:Sitecom LN-030 V2 not Sitecom LN-030 V3
Ethernet Dongle 4:D-LINK DUB-E100 (rev C1)
LTE Specials 1:Universal LTE dongle Huawei E8372LTE Wingle so far works with Telekom/O2/Vodafon , others not tested yet.
IN-OUT´s Connections
OUT HDSDI:Yes, 1080i 1,5 GBit
OUT AV:Yes, 3.5mm mini jack
OUT Audio Headphone:Yes, 2.5 mm mini jack
IN Audio AUX:Yes, 3.5 mm mini jack
Time code IN/OUT:Yes
Operation Panel Type:LCD
Operation Panel Size diagonal in inch:3.5
Electronic Viewfinder (EVF) Resolution:1,22 Mp
Power and Enviroment Spec´s
Power AC:Yes, AC/DC Adapter
Battery types:SSL-JVC50 / SSL-JVC75 IDX
Operation Temperature in Celsius degrees:0 to 40
Operation Humidity in %:30 to 80
Mechanical Informations
Weight in kg:2.4 include battery
Measurements (WxHxD) in mm:W 178 x H 198 x D 416
Include Package
Battery:Yes, 1 x SSL-JVC50
AC/DC adapter:Yes, AC Adapter
Cable 1:Yes, Power cord
Additional s:Yes, eye cap
Software:Yes, Clip Manager
    • JVC GY-HM660RE ProHD Mobile News Streaming Camera
      • AC Adapter
        • Battery Pack
          • AV Cable
            • Limited 3-Year Warranty
