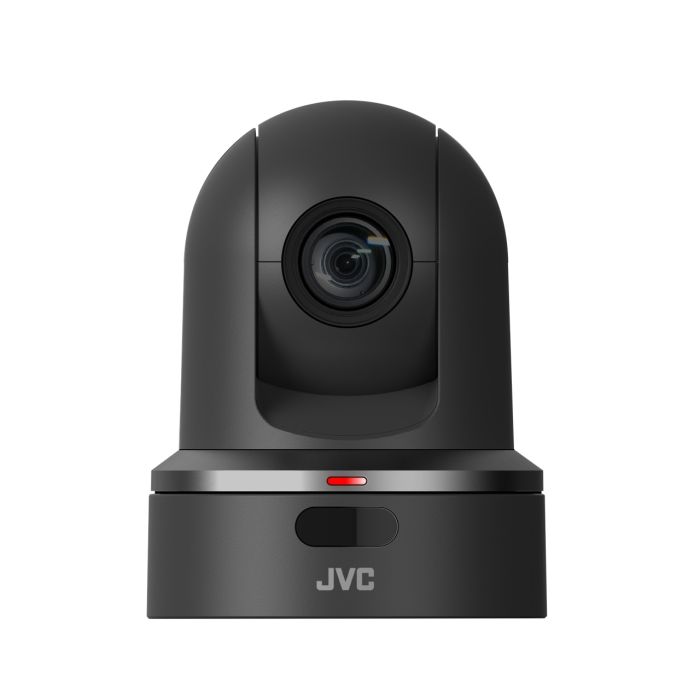

JVC KY-PZ100BE Robotic PTZ IP production camera (black)

Details

JVC’s first robotic pan, tilt and zoom video production camera, the KY-PZ100, features JVC’s unique IP communications engine, providing network connection via Wi-Fi, 4G/LTE or LAN. Ideal for studio or field use, the PTZ camera offers all the IP connectivity from JVC’s range of live streaming camcorders.

Features

4K UHD 60p/50p ProRes 4:2:2 10-bit recording to SSD*
4K UHD 30p/25p/24p 4:2:0 8-bit recording to SDHC/SDXC card
NEW HD Recording to SSD*
1" (effective) CMOS sensor with high picture quality
F12 Sensitivity
Newly-developed 4K lens with 20x zoom
HDR recording, HLG or J-Log1 (10-bit)
4K Rec + HD streaming + 4K HDMI output
Broadcast overlay on video and streaming
High performance 1080 60p/50p live streaming
NEW SRT Live Streaming Protocol (optional selection ZIXI or SRT) also RTMPS Protocol available
Low latency and high-quality streaming up to 20Mbps
LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
Return over IP (Return video and IFB)
Auto FTP to upload native video clips automatically
NEW Progressive Auto FTP File transfer
NTP Time server supported
Built-in wireless LAN (2.4GHz/5GHz) MIMO with external antenna
Backup to SSD*
40x lossless dynamic zoom
4-inch high resolution LCD monitor
XLR audio connectors

Specs

KY-PZ100BE - Specification

Specs

Camera Front-End Specifications
Image Sensor (inch):	1/2.8 Inch CMOS
Number of Sensors:	1
Mega Pixels:	13
Gain in dB:	0 to 48
Shutter speed:	1/8 to 1/10000
White Balance modes:	FAW, AWA, 3200K, 5600K, Manual
Optical Specifications
Lens mount:	Internal
Optical Zoom X times:	30
Dynamic Zoom x times:	12
Lens F Number:	1.6 to 4.7
Lens ratio from / to:	4.3mm to 129mm
Lens ratio equivalent to 35mm:	31mm to 915mm
Auto Focus:	Yes
Optical Image stabilization:	Yes
Build in ND Filters:	PTZ Head Features
PTZ Head Features
PAN Angle in degree +/-:	175
PAN Speed with AC Adapter max degree/sec.:	480
PAN Speed with POE+ max degree/sec.:	400
TILT Angle in degree:	-30 to 90
TILT Speed with AC Adapter max degree/sec.:	300
TILT Speed with POE+ max degree/sec.:	200
Preset Positions:	100
Recording Formats
Media:	mircoSDHC/microSDXC
Media Class:	Class 10
Recording slots:	1
Encoder:	H.264
Recording Resolution Formats:	Resolution 1920 x 1080
Resolution 1280 x720:	Yes, 60p/50p/30p/25p
Recording Data rate 1:	5, 18, 28Mbps
Recording Data rate 2:	35Mbps (UHQ)
Recording Data rate 3:	50Mbps (XHq/YUV422)
Audio Channels:	2
Audio Recording modes:	LPCM 2ch, 48 kHz/16 bit (HD MOV), AC3 2ch (AVCHD), μlow 2ch (Proxy)
Audio Filters:	Yes, Wind Cut, Gains
IP Section of the Product
IP Main Connection:	USB A Host, Ethernet LAN RJ45 1000Base-T with POE+
IP Connection supports:	Ethernet, WIFI - and LTE USB Adapters
IP Features Live-Streaming:	Yes
IP Features Remote:	Yes, via RM-LP100 or Web-Browser no apps needed
IP Features FTP:	Yes
Live-Streaming Bitrates:	0.3,0.8,1.5, 2.5, 3,5,8,12,16, 20Mbps
Live-Streaming Protocols:	RTMPS,RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIXI
Live-Streaming Single cast:	Yes
Live-Streaming Multicast:	Yes
Live-Streaming reconnect:	Yes
Live-Streaming and simultaneous REC:	Yes
Live-Streaming Pre-sets of destinations:	4
FTP Protocol formats:	FTP / SFTP / FTPS
FTP / SFTP / FTPS:	FTP servers presets
FTP servers presets:	4
Note for all kind of USB Adapters:	The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder). Please select the device which you are going to use: WIFI dongle / 3G/4G dongle or a CAT Network adapter.The Adapter you going to be use must be a registered Adapter (see attached compatible list), cause all of these Adapter needs dedicate drivers, which to be implemented into the camcorder.In the case for LTE adapters, there must be done a pre-set of these dongles in your local PC first!
Recommendation for WIFI USB Adapters (EU only):
WIFI Dongle 1:	Sitecom WLA.1001
WIFI Dongle 2:	EnGenius EUB1200AC /Realtek RTL8812AU
WIFI Dongle 3:	ASUS USB1200AC /Realtek RTL8812AU
WIFI Dongle 4:	D-LINK DWA-172 (revA1) /Realtek RTL8811AU
WIFI Dongle 5:	EDIMAX EW-781UTC /Realtek RTL8811AU
WIFI Dongle 6:	D-LINK DWA-171(revA1) /Realtek 8811AU
WIFI Dongle 7:	TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!!
WIFI Dongle 8:	Wideland (over Amazon) ACWIFI DEWIFIC001A
IN-OUT´s Connections
OUT HDSDI:	Yes, 3G
OUT HDMI:	Yes
IN Audio AUX:	Yes, 3.5mm mini jack x1 (MIC balanced mono/ unbalanced Stereo with Power or LINE Balanced Mono/ Unbalanced Stereo
Wired remote IN:	Yes, RS232C IN/OUT 8 PIN Mini DIN
PTZ Serial Interface RS-422:	Yes, Serial over RJ-45 connector
PTZ Supported Protocols:	Serial, PelcoD, IP JVC, IP others
Power and Enviroment Spec´s
Power AC:	Yes, via AC/DC Adapter
Operation Temperature in Celsius degrees:	0 to 40
Operation Humidity in %:	30 to 80
Mechanical Informations
Weight in kg:	2
Measurements (WxHxD) in mm:	W 154 x H 200.7 x D 191
Include Package
AC/DC adapter:	Yes
Cable 1:	Yes, Power cord
Instructions:	Yes
Remote Control unit:	Yes, IR controller
Fall Prevention wire:	Yes
Ceiling mount bracket:	Yes
Additional s:	Yes, Mounting screws, for Fall Prevention´s

items Included

Items Included:

JVC KY-PZ100BE Robotic PTZ Camera (Black)
AC/DC adapter
Power cord
Mounting screws
IR controller
Ceiling mount bracket
Fall Prevention wire
Template.
