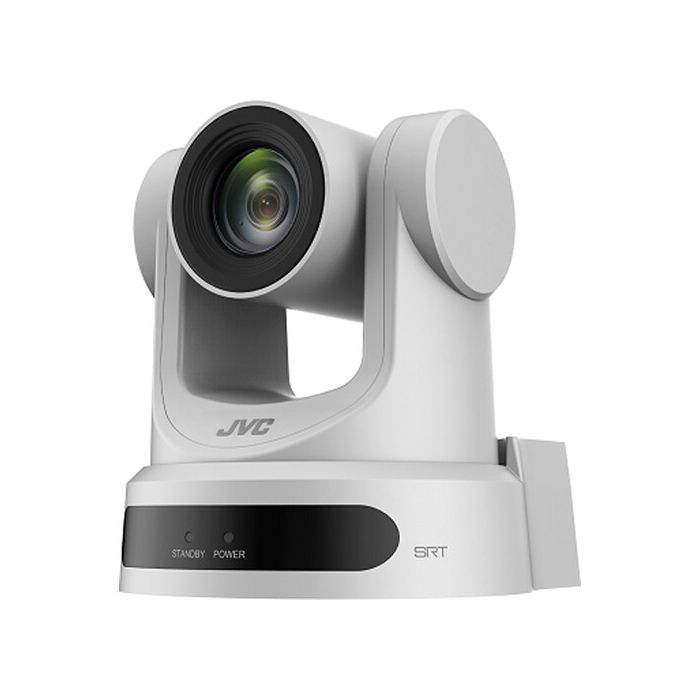

JVC KY-PZ200 HD PTZ Remote Camera with 20x Optical Zoom (White)

SKU
KY-PZ200WE
Request for Price

Product Highlights:

  • 1/2.8" HD CMOS Sensor, 20x Optical Zoom
  • Resolution Capture up to 1920 x 1080p60
  • HDMI/3G-SDI/USB Video Output, PoE Power
  • 255 Presets, 3.5mm Stereo Audio In/Out
  • RS-232/RS-485 Serial Control, Cascading
  • Supports H.264/H.265/MJPEG Compression
  • Supports RTSP, RTMP, SRT, HTTP Protocols
  • Embedded AAC and G712 Audio Encoding
  • VITC and NTP Sync Support
  • Camera Comes in White Color

Add a remotely controllable camera to your video production with this white KY-PZ200 HD PTZ Remote Camera with 20x Optical Zoom from JVC. The PTZ camera features resolutions up to 1080p60, a 1/2.8" HD CMOS sensor, and an integrated 20x optical zoom lens to capture crisp imagery for your event production, house of worship, classroom, meeting room, or web conference. The camera offers multiple video output options including HDMI, 3G-SDI, USB Type-B, and IP streaming.

In addition to HDMI, 3G-SDI, and USB output up to 1080p60, the camera supports H.264/H.265 compression and it transmits IP video streams using SRT, RTSP, RTMP, and HTTP protocols. You can set the camera to rapidly move between positions using IP RS-485, or RS-232 control with separately available serial controllers, or you can utilize the included IR remote control. It also supports UVC communication over USB for video control using a computer. The camera features 3.5mm analog line audio input and output. Also supported for multi-camera productions are VITC and NTP synchronization for event production support that requires timecode and real-time clock sync.

The camera can be powered using the included power adapter, or it can be powered using PoE (Power-over-Ethernet) on a supported network. A ceiling bracket is included, and you can flip the camera image when it is mounted upside-down.

Key Features:

  • PTZ camera with 1/2.8" CMOS 2.07 MP sensor that captures up to 1080p60 video
  • 20x optical zoom, 8x digital zoom lens
  • Multi-camera VITC (Vertical Interval Timecode) and NTP (Network Time Protocol) synchronization
  • HDMI, 3G-SDI, and USB video outputs as well as IP streaming via SRT, RTMP, RTSP, and HTTP
  • Serial control over RS-232, RS-485 as well as IR remote control and IP control/config
  • PoE (Power-over-Ethernet) support
  • UVC support over USB on macOS, Windows, Linux, and Android
  • H.264/H.265/MJPEG video compression
  • 3.5mm analog audio input and output
Write Your Own Review
You're reviewing:JVC KY-PZ200 HD PTZ Remote Camera with 20x Optical Zoom (White)
Your Rating

Items Included:

  • JVC KY-PZ200 HD PTZ Remote Camera with 20x Optical Zoom (White)
  • Power Adapter
  • Power Cable
  • RS-232 Cable
  • IR Remote Control
  • Ceiling Bracket
  • Limited 1-Year Warranty
More Information
SPECS
Imaging Sensor Type 1/2.8"-Type CMOS Sensor
  Sensor Resolution Effective: 2.07 Megapixel
  IR Cut Filter No
  Built-In ND Filter None
  Focus Control Autofocus
Manual Focus
Exposure Control Shutter Type Electronic Rolling Shutter
  Shutter Speed 1/10000 to 1/30 Second
  Minimum Illumination 0.5 Lux
Lens Focal Length 4.4 to 88.5mm
  Optical Zoom Ratio 20x
  Max Digital Zoom 8x
  Field of View Horizontal: 3.36 to 60.7°
Vertical: 1.89 to 34.1°
  Maximum Aperture f/1.8 to 2.8
Video Capture External Recording Modes SDI/BNC / HDMI / RJ45 / USB
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 25/50/59.94 fps
  Audio Recording AAC Audio
  Broadcast Output NTSC
  IP Streaming H.264, H.265, MJPEG, RTMP, RTSP
1920 x 1080 at 25p, 29.97p, 50p, 59.94p
1280 x 720 at 25p, 29.97p, 50p, 59.94p
1024 x 576 at 25p, 29.97p, 50p, 59.94p
720 x 480 at 25p, 29.97p, 50p, 59.94p
720 x 408 at 25p, 29.97p, 50p, 59.94p
640 x 480 at 25p, 29.97p, 50p, 59.94p
640 x 360 at 25p, 29.97p, 50p, 59.94p
480 x 320 at 25p, 29.97p, 50p, 59.94p
320 x 240 at 25p, 29.97p, 50p, 59.94p
Control Presets 255
  Move Speed Pan: 1.7 to 100°/sec
Tilt: 1.7 to 69.9°/sec
  Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
  Supported Control Protocols IP
Pelco-D
Pelco-P
RS-232
RS-422
RS-485
  Max Cable Length 3937' / 1200 m (RS-485)
98.4' / 30 m (RS-232)
Interface Video I/O 1 x BNC (3G-SDI) Output
1 x HDMI 1.4 Output
1 x RJ45 Output
1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output
  Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Line Input
1 x 1/8" / 3.5 mm TRS Stereo Line Output
  Other I/O 1 x Block 2-Pin (RS-485) Input/Output
1 x USB-A Input
1 x Mini-DIN 8-Pin (RS-232) Input
1 x Mini-DIN 8-Pin (RS-232) Output
1 x RJ45 (LAN, VISCA) Control Input
  Built-In Speaker No
Power PoE Support PoE 802.3af
  Power I/O 1 x Barrel (12VDC at 1.5 A) Input
  Power Consumption Device: 12 VDC 12 W
Environmental Operating Temperature 32 to 104°F / 0 to 40°C
  Storage Temperature -40 to 140°F / -40 to 60°C
  Operating Humidity 30 to 80%
General OS Compatibility Windows 10
macOS 10.12.6
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
  App Compatible No
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
  Certifications FCC Part 15 Class A
*as per Manufacturer
  Dimensions (W x H x D) 5.6 x 6.5 x 6.7" / 14.2 x 16.5 x 17 cm
  Weight 3.7 lb / 1.7 kg
Packaging Info Package Weight 6.51 lb
  Box Dimensions (LxWxH) 11.7 x 9.7 x 9.7"
