Kiloview Cradle Series 16-Channel Redundant Power Rackmount Frame (3 RU)

Kiloview
SKU
KVW-RU03
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • Holds up to 16 Encoding/Decoding Modules
  • Redundant Power Modules
  • Automatic Heat Dissipation
  • 24-Hour Continuous Operation

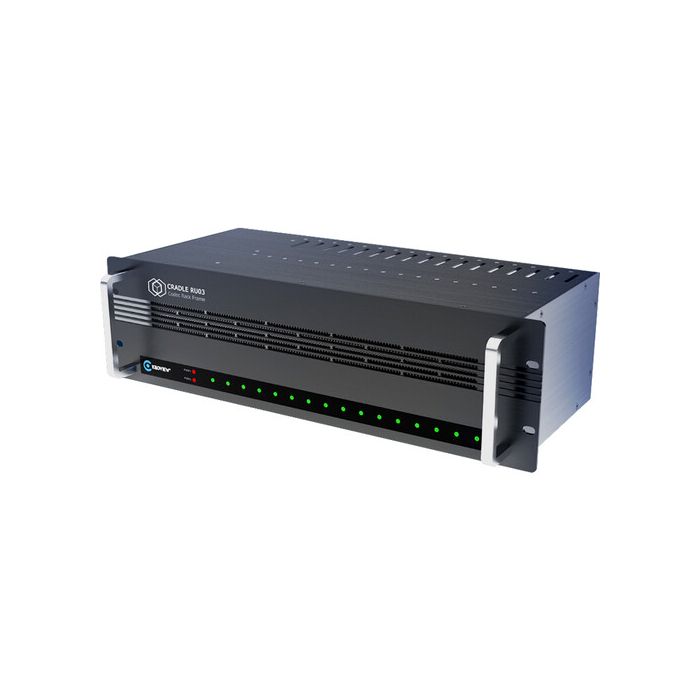

main product photo

The 3 RU Kiloview Cradle Series 16-Channel Redundant Power Rackmount Frame benefits your IP video deployments of virtually any size and complexity. It supports up to 16 optional Cradle series encoding/decoding modules, which can be set up to support up to 32 channels. The frame features integrated redundant power modules and dual cooling fans that ensure automatic heat dissipation and stable 24-hour continuous operation.

Write Your Own Review
You're reviewing:Kiloview Cradle Series 16-Channel Redundant Power Rackmount Frame (3 RU)
Your Rating

Items Included:

  • Kiloview Cradle Series 16-Channel Redundant Power Rackmount Frame (3 RU)
  • Limited 1-Year Manufacturer Warranty

KVW-RU03 - Specification

More Information
General
Network:2*100M/1000M RJ45 adaptive Ethernets
Decoding output:1*SD/HD/3G-SDI, up to 1080P 60Hz
1*HDMI, up to 3840*2160@60Hz
Analog audio output:1*3.5mm Line out
Analog audio input:1*3.5mm Line in
USB:1*USB 3.0 Type-A
Access protocol:NDI-HX/SRT/RTSP/RTMP/TS-UDP/HTTP, (NDI|HX means NDI|HX Version 2.0, SIP/ONVIF (customize)
Output protocol:NDI|HX 2.0/SRT/RTSP/RTMP/TS-UDP
Protocol conversion:9 channels1080P video conversion
Streaming distribution:50 channels of RTSP, 36 channels of RTMP/SRT
(Not more than 800Mbps)
Live streaming:9 channels*4 channel 1080P
Number of decoding:4K 30Hz H.264/H.265: up to 4 simultaneous channels
1080P 50Hz/60Hz H.264/H.265: up to 8 simultaneous channels
1080P 30, 1080i 50/60Hz, 720P and below H.264/H.265：up to 9 channels simultaneous
Video decoding standard:H.264, H.265
SDI output format:1080P60/59.94/50,1080P30/29.97/25/24/23.98,1080i60/59.94/50.720P60/ 59.94/50, 576i50, 480i60
HDMI output format:4K 3840x2160@60/30, 1080p60/50, 1080p24/25/30, 1080i60/50, 720p60/50
Compatible with VESA standard format
Video rate range:128Kbps ~ 40Mbps
Audio decoding:AAC G.711 (aLaw/uLaw)
Audio rate range:AAC: 8Kbps ~ 320Kbps G.711: 64Kbps
Decoding delay:d200ms
Split display style:Support 1/2/3/4/5/6/7/8/9 splitting;
Support re-encoding the splitted and recombined video for live streaming/ transmission. The image supports up to 1080P60 H.264 encoding.
Management interface:Web
Remote management:Support
Remote firmware upgrade:Support
Operating temperature:-25 ~ 60°
Dimension & weight:140*105*28mm (5.5”*4.1”*1.1”/380g/1
Power consumption:d6W
Power supply:12V/1A
