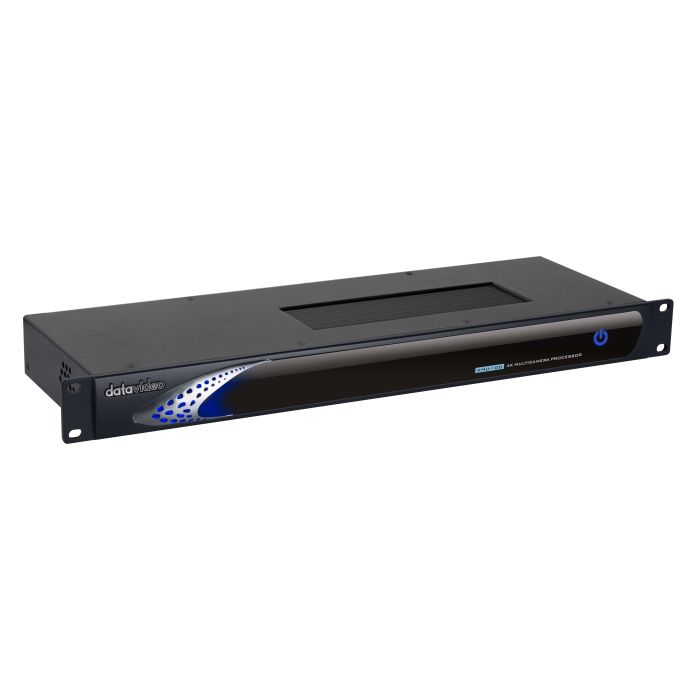

Datavideo KMU-100 4K Multicamera Processor

Datavideo KMU-100 is a unique 4K multi-camera production solution that delivers multiple virtual full HD (up to 1080p) scaled camera angles with minimal installation cost and simple operation. The basic concept is straightforward: The output of a single 4K/UHD camera is connected to KMU-100, which then displays up to four 16x9 user-defined cropped windows that are sent out as four separate HD signals through HD-SDI.

These user defined windows can be scaled to zoom in on a particular subject that you would like to highlight on the 4K signal. As an option, the Datavideo RMC-185 controller can be added to easily pan, tilt, and zoom to create the user defined windows on the 4K signal. You can set up these shots in advance and save them as presets, or you can do it in real-time.

Generates up to eight cutouts out of one or two 4K inputs

Supports conversion from two 4K SDI or HDMI inputs to eight 3G-SDI video outputs, giving
users more live video switching choices.

8 channel switcher to switch between cutouts

Can view two 4K video channels at the same time on the multiview monitor as well as other cropped 4K video images in smaller windows for easier video switching.

Create speed sensitive motion paths

Real-time lens movement can be simulated by the cutouts selected from the 4K camera, thus adding more varieties of motions to your video.

Control through RMC-185 hardware controller

Allows user to easily pan, tilt, and zoom to create the user-defined windows on the 4K signal.
