SWIT M-1093F Dual 9" FHD Waveform Rack LCD Monitor

SWIT
SKU
M-1093F
image-icon
$3,350.00
Add to Wish List Add to Compare
Email

Product Highlights:

  • Dual 9" IPS LCD panel
  • 1920 x 1200 resolution, 800:1 contrast
  • 19" 4U rack mounting, ±30° rotatable
  • 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
  • 16-channel embedded audio meters with alert
  • Select any 2 audio channels to output

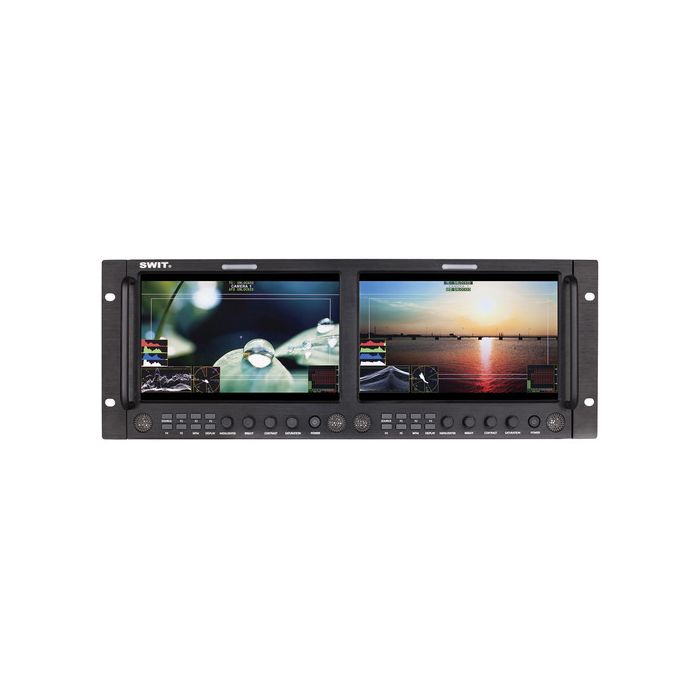

main product photo

The M-1093F Dual 9" FHD Waveform Rack LCD Monitor from SWIT features two 9" IPS (In-Plane Switching) LCD panels, with Full HD 1920 x 1200 resolution, LED backlight, 800:1 contrast, and the viewing angle is 170°/170°. The monitor supports built-in HDMI to SDI conversion and also features an SDI loop output port. It supports 6.5 to 24 VDC input.

  • Dual 9" IPS LCD panel
  • 1920 x 1200 resolution, 800:1 contrast
  • 19" 4U rack mounting, ±30° rotatable
  • 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
  • 16-channel embedded audio meters with alert
  • Select any 2 audio channels to output
  • Waveform Y/Cb/Cr/R/G/B and single line
  • Vectorscope, histogram R/G/B/Y
  • AFD, H/V delay, R/G/B/Mono, false color
  • TSL UMD and text Tally display
  • Zebra stripes and peaking focus assist
  • SDI timecode display
  • Marker 4:3, 13:9, 15:9, 1.85:1, 2.35:1
  • Tally light and GPI control
  • USB firmware upgrade
Write Your Own Review
You're reviewing:SWIT M-1093F Dual 9" FHD Waveform Rack LCD Monitor
Your Rating

Items Included:

  • SWIT M-1093F Dual 9" FHD Waveform Rack LCD Monitor
  • LCD Protective Film
  • Power Cable
  • Limited 2-Year Warranty

M-1093F - Specification

More Information
General
Size:2 x 9" / 22.9 cm
Display Area:191.52 x 119.70 mm
Resolution:1920 x 1200
Aspect Ratio:16:9 (4:3 adjustable)
Brightness:450 cd/m2
Contrast:800:01:00
Color:16.77 million colors
Viewing Angle:Horizontal: 170°
Vertical: 170
Input:2 x BNC: 2K/3G/HD/SD-SDI input
BNC: Composite input
HDMI: HDMI input
1 x 3.5 mm: Analog audio input
Output:2 x BNC: 2K/3G/HD/SD-SDI loop output
1 x BNC: Composite loop output
1 x HDMI: HDMI loop output
1 x 3.5 mm: SDI, HDMI, Analog audio output
Video Format:CVBS:
Converted NTSC/PAL

SDI:
SMPTE 2048-2: 2048 x 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60, 2048 x 1080i: 50 / 59.94 / 60
SMPTE-425M: 1080p: 60 / 59.94 / 50
SMPTE-274M: 1080i: 60 / 59.94 / 50, 1080p: 30 / 29.97 / 25 / 24 / 23.98
SMPTE-RP211: 1080psf: 30 / 29.97 / 25 / 24 / 23.98
SMPTE-296M: 720p: 60 / 59.94 / 50
SMPTE-125M: 480i59.94
ITU-R BT.656: 576i50

HDMI:
1080p: 60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
1080psf: (30 / 29.97 / 25 / 24 / 23.98
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50
480i / 576i / 480p / 576p
Power Consumption:d36 W
Working Voltage:DC/Battery 6.5 to 24 V
Working Environment:Temperature: 32 to 104°F(0 to 40°C)
Humidity: 10 to 9
Dimensions:19.1 x 6.9 x 4.4" / 484 x 177 x 113 mm
Weight:4.4 lb / 2.8 kg
Packaging Info
Package Weight:8.05 lb
Box Dimensions (LxWxH):22.2 x 9.4 x 5.7"
