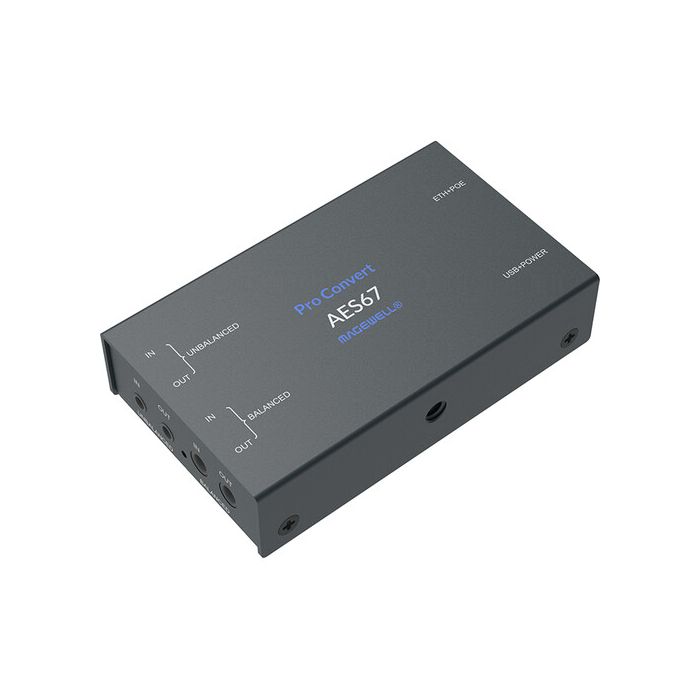

Magewell Pro Convert AES67 Multi-Format Bidirectional Analog/IP Audio Converter

SKU
64240
Request for Price

Product Highlights:

  • Transcode Analog to IP Audio
  • Balanced and Unbalanced Audio In/Out
  • Supports AE67, ND, SRT and More
  • 3.5 and 4.4mm I/O with XLR Cables
  • UAC Support via USB-B

Encode or decode analog audio between a 3.5mm or XLR input and AES67 multicast streams with this Pro Convert AES67 Multi-Format Bidirectional Analog/IP Audio Converter from Magewell. The converter features 2-channel 3.5mm unbalanced input and output, and 2-channel 4.4mm balanced input and output. An RJ45 Ethernet port transmits or receives up to 8-channel AES67 encoded multicast and unicast encoded streams and 4-channel 24-bit streams for use with Icecast, SRT, or NDI streaming.

The converter can also output UAC audio via the USB-B port for use with applications that support UAC. The included XLR cable adapters plug into the 4.4mm ports to connect a variety of XLR sources and destinations. You can configure and control the converter using an easy-to-use WebUI or by using Magewell Cloud.

Key Features
  • Offers a seamless bridge between analog audio, software, and IP standards, including AES67, NDI, SRT, and more
  • Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
  • Enables mixed-technology local and remote production workflows and ProAV installations
More Information
SPECS
General Audio Inputs 1 x 4.4mm TRRRS Stereo Analog Female
1 x 1/8" / 3.5 mm TRS Stereo Analog Female
  Input Audio Format Analog
  Audio Outputs 1 x 1/8" / 3.5 mm TRS Stereo Analog
1 x 4.4mm TRRRS Stereo Analog
  Output Audio Format Analog
  Latency 0 to 10,000 ms
  Other I/O 1 x RJ45 LAN Input/Output
Hardware Wi-Fi None
Power Power I/O 1 x USB-B (5 VDC up to 1 A) Input
  PoE Support PoE 802.3af
  Power Consumption Device: 5 W
Environmental Operating Temperature 32 to 104°F / 0 to 40°C
  Storage Temperature -4 to 158°F / -20 to 70°C
  Operating Humidity 5 to 90%
General Dimensions 4 x 2.4 x 0.9" / 100.9 x 60.2 x 23.3 mm
Packaging Info Package Weight 1.605 lb
  Box Dimensions (LxWxH) 10.8 x 6.1 x 2.5"

Items Included:

  • Magewell Pro Convert AES67 Multi-Format Bidirectional Analog/IP Audio Converter
  • 4.4mm to Dual XLR Male Cable
  • 4.4mm to Dual XLR Female Cable
  • USB-A to USB-B 2.0 Cable
  • Universal Power Adapter
  • L Bracket
  • Limited 2-Year Manufacturer Warranty (on Converter)
  • Limited 1-Year Manufacturer Warranty (on Accessories)
