Magewell Pro Convert for NDI to SDI

SKU
641500000
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • Connects baseband presentation or distribution equipment into IP-based media networks
  • Supports NDI technology including full-bandwidth NDI and high-efficiency NDI|HX mode
  • Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP

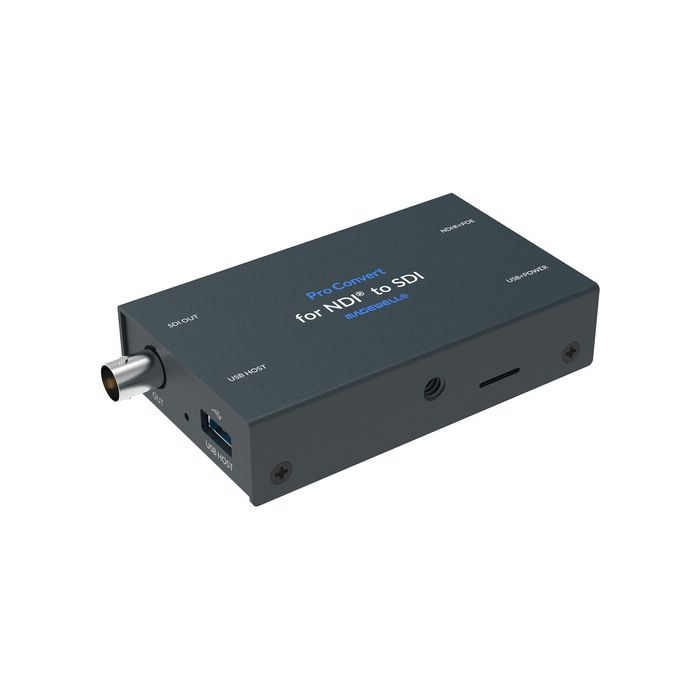

main product photo

Use the Pro Convert for NDI to SDI Decoder from Magewell to convert an NDI stream with embedded audio to an SDI output signal. This converter supports resolutions up to 2K60 via NDI input and decodes at resolutions up to 1080p60 for 3G-SDI output. Designed to link baseband equipment to IP-based media networks, this component supports full-bandwidth NDI and high-efficiency NDI HX modes. Supported streaming protocols include SRT, RTSP, RTMP, UDP, RTP, HLS, and HTTP.

The Pro Convert Web UI is compatible with a wide variety of web browsers and enables web configuration for settings such as the device name, source name, NDI and EDID identifiers, and other settings. The Pro Convert NDI to SDI features a 1/4"-20 mounting thread and can be powered via the included USB power adapter or over PoE using the RJ45 port.

Decoding Features
  • Decodes NDI streams up to 2K60 including NDI, NDI HX, and NDI 4.5
  • Up to 1080p60 3G-SDI output signals
  • Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP
  • Supports YUV BT.601 and YUV BT.709 color
  • 16-bit, 8-channel audio streams
  • Supports AAC/MP3 audio decoders
Web GUI
  • Provides comprehensive, real-time device and signal information
  • Enables input signal processing and decoding configuration
  • OSD setting, de-interlacing, resolution, frame rate, and AR conversion
  • Audio gain, sample rate, and audio-channel mapping
  • Network connection configuration and firmware updates
  • USB RNDIS/ECM control
  • Provides HTTP APIs
Supported Web Browsers
  • Microsoft Internet Explorer 11
  • Microsoft Edge
  • Mozilla Firefox version 61 and above
  • Google Chrome version 49 and above
  • Apple Safari 11.1 and above
  • Opera 55.0.2994.44 and above
Onboard Controls
  • Menu and Select buttons
  • 16-position rotary DIP switch: set board index from 0 to F
Network Interfaces
  • 10/100/1000 Mb/s Ethernet
  • IEEE  802.3af PoE
Write Your Own Review
You're reviewing:Magewell Pro Convert for NDI to SDI
Your Rating

Items Included:

  • Magewell Pro Convert for NDI to SDI
  • USB Type-A to USB Type-B Cable
  • 5V, 2.1A Power Adapter
  • L-Bracket
  • Limited 2-Year Warranty
Magewell Pro Convert for NDI to SDI - User Manual (Size: 7.6 MB)
More Information
SPECS
General Video Inputs 1 x RJ45 (NDI) Female
  Audio Inputs None
  Video Outputs 1 x BNC (3G-SDI)
  Audio Outputs None
  Other I/O 1 x USB-B Control Input (Shared Power)
1 x USB-A Control Input
  Expansion Slots None
  Input Video Format RJ45
DCI 2K at 60 fps
  Output Video Format SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 50 fps
  Embedded Audio LAN (RJ45)/SDI: 8-Channel
IP Streaming Video IP Decoding RTMP, RTP, RTSP, UDP, H.264, H.265: 720 x 480 to 1920 x 1080 at 60p
  Audio IP Decoding AAC
Hardware Tally Light Yes
  Wi-Fi None
Power Power I/O 1 x USB-B (5 VDC at 2.1 A) Input
  PoE Support PoE 802.3af
  Power Consumption Device: 1.05 A5.5 W
Environmental Operating Temperature 32 to 104°F / 0 to 40°C
  Storage Temperature -4 to 158°F / -20 to 70°C
  Operating Humidity 5 to 90%
General Dimensions 4 x 2.4 x 0.9" / 100.9 x 60.2 x 23.3 mm
Packaging Info Package Weight 1.3 lb
  Box Dimensions (LxWxH) 8.3 x 4.2 x 2.6"
