Magewell Ultra Encode AIO

SKU
531300000
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • Up to 4096 x 2160p60 Input & Loop Output
  • H.264/265 Encoding with 8-Ch AAC Audio
  • Mix HDMI & SDI in PIP or Side by Side
  • Up to 6 x Simultaneous Streams, 32 Mb/s
  • Supports High-Efficiency NDI|HX3
  • 3.5mm Audio Line In & Line Out
  • Wide Streaming Protocol Support
  • 1 RU Rack-Mountable Form
  • SD Card & USB External Storage
  • Native Facebook, YouTube, Twitch Support

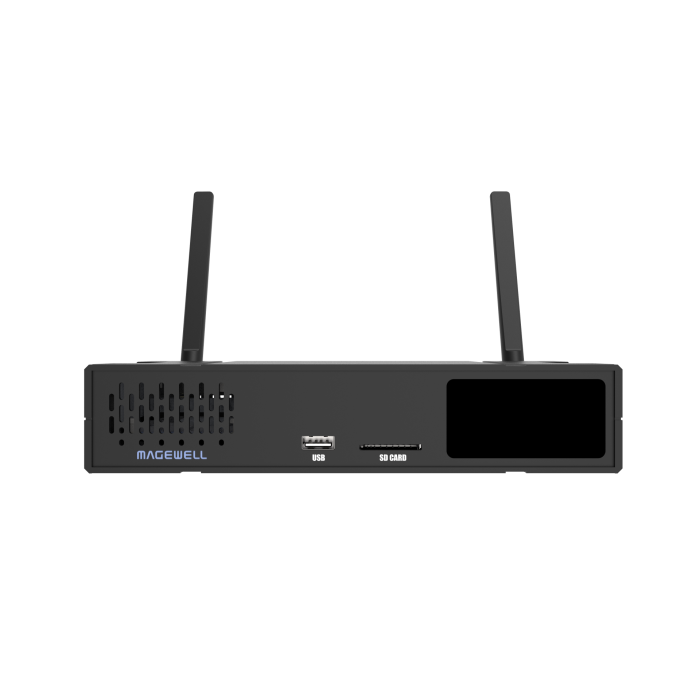

main product photo

The Ultra Encode AIO live media encoder from Magewell upgrades the capabilities of the original Ultra Encode models for advanced use cases. Expanded features include HDMI and SDI input connectivity in a single unit, 4K encoding and streaming from the HDMI input, simultaneous multi-protocol streaming, higher streaming bitrates, and both SD card and external USB recording. This encoder is ideal for high-quality live streaming of content like sports, education, and live events as well as IP-based production and AV-over-IP.

Mixes HDMI & SDI Inputs
Mixes video from the HDMI and SDI inputs in picture-in-picture (PiP) or side-by-side forms into a combined output

Multiple Streaming Outputs
Outputs up to six simultaneous sessions over multiple streaming protocols at 32Mb/s per session

NDI Protocols
Supports multiple NDI standards, including the high-efficiency, low-bandwidth NDI|HX 3

Scheduling
Supports streaming and recording scheduling

Video Encoding
Supports H.264 and efficient H.265 (HEVC) video encoding

Audio Encoding
8-channel AAC audio encoding with 16-256 Kb/s

Streaming Platforms
Native Facebook, Twitch, and YouTube support
Write Your Own Review
You're reviewing:Magewell Ultra Encode AIO
Your Rating

Items Included:

  • Magewell Ultra Encode AIO
  • Locking Power Adapter with Plug Adapters
  • HDMI Cable
  • 2 x Wi-Fi Antenna
  • 7 x M2.5 Screw
  • Retainer Plate
  • 1 RU Short Rack Ear
  • 2 x 1 RU Long Rack Ear
  • Limited 2-Year Manufacturer Warranty
More Information
SPECS
IP Encoding/Decoding IP Video H.264/H.265:
2560 x 1440 to 4096 x 2160 at 30p Encoding
H.264/H.265:
1280 x 720 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
H.264/H.265:
720 x 576 at 25p Encoding
H.264/H.265:
720 x 480 at 30p Encoding
  IP Audio AAC: 16 to 256 Kb/s Encoding
  Transport Protocols HLS, NDI/HX, NDI/HX2, NDI/HX3, RTMP, RTMPS, RTP, RTSP, SRT
  Simultaneous Streams 6 Streams
  Compatible Services Facebook Live, Twitch, YouTube Live
Wireless Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
  Bluetooth Yes
Interfaces Video I/O 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Input
1 x BNC (3G-SDI / HD-SDI / SD-SDI) Loop Output
1 x HDMI Input
1 x HDMI Loop Output
  Audio I/O 1 x 1/8" / 3.5 mm TRS Input
1 x 1/8" / 3.5 mm TRS Output
  Other I/O 2 x USB-A
1 x USB-C
  HDCP Support Yes
  Embedded Audio HDMI/SDI
Internal Recording Recording Media 1 x SD (Unspecified Type)
  Recording Modes 4096 x 2160p at 30/60 fps
2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60 fps
2048 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/48/50/59.94/60 fps
1920 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps
1280 x 720p at 25/29.97/30/50/59.94/60 fps
720 x 576p at 25 fps
720 x 576i at 50 fps
720 x 480p at 29.97 fps
720 x 480i at 59.94 fps
Power Power Connector 1 x Barrel (9 to 18 VDC) Input
Environmental Operating Temperature 32 to 72°F / 0 to 40°C
  Operating Humidity 5 to 90%
  Storage Temperature -4 to 158°F / -20 to 70°C
General Display LCD
  Rackmount Size 1 RU (with Included Hardware)
  Dimensions 8.5 x 5 x 1.75" / 214.9 x 128.2 x 44.55 mm
Packaging Info Package Weight 3.515 lb
  Box Dimensions (LxWxH) 11.1 x 6.8 x 4.1"
