Magewell Ultra Encode HDMI

SKU
530400000
image-icon
Request for Price
Add to Compare
Email

Product Highlights:

  • Up to DCI 4K60 Input/Loop Out
  • Dual Stream H.264/265 Encoding with AAC
  • 16 Mb/s Main & 2 Mb/s Sub Stream
  • 16-Channel HDMI Embedded Audio
  • 3.5mm Audio Line In & Line Out
  • Native Facebook, YouTube, Twitch Support
  • Wide Streaming Protocol Support
  • Control via Web UI or HTTP APIs

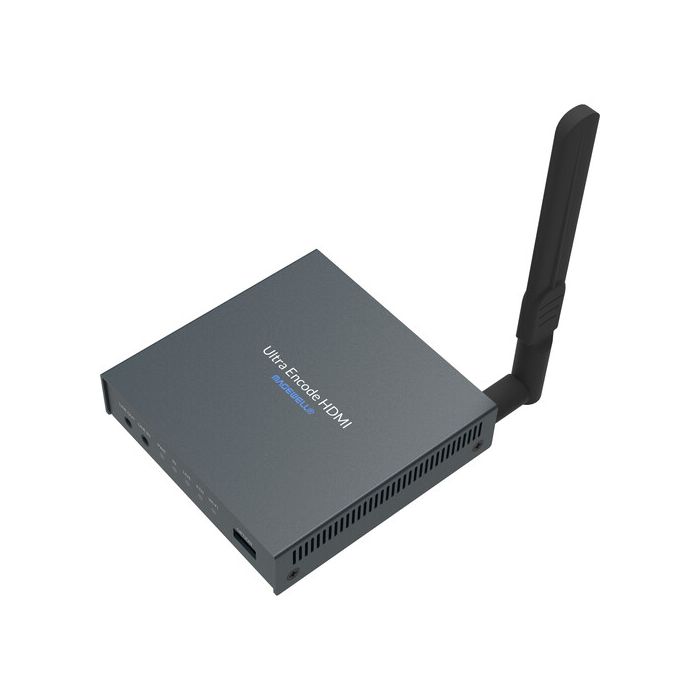

main product photo

Stream your video content to multiple platforms simultaneously, using the Magewell Ultra Encode HDMI. This encoder has both an Ethernet port and Wi-Fi and features HDMI 1.4a input and loop output, 16-channel embedded audio support, and 3.5mm audio input and output. It supports up to DCI 4K60 input and encodes up to 1080p60 in H.264/265 with 2-channel AAC audio. The dual streaming function provides both a 16 Mb/s main stream and a 2 Mb/s sub stream. Audio can be embedded into the encoding stream or extracted via the 3.5mm line out.

The Ultra Encode HDMI can stream to two destinations at the same time (limited to select protocols) and provides native support for popular platforms like Facebook, YouTube, and Twitch. Supported streaming protocols include RTSP, RTMP, RTMPS, SRT Caller, SRT Listener, NDI|HX2, HLS, TS over UDP, and TS over RTP. The Ultra Encode SDI can be controlled via a Web UI or HTTP APIs. Use this encoder on your desktop or mount it using the included T-Bracket with a 1/4"-20 thread.

Encoding
  • Dual-stream encoding with main stream and sub stream
  • Max bit rate: main stream: 16 Mb/s, sub stream: 2 Mb/s
  • H.264/H.265 (HEVC) video encoding
  • 2-channel AAC audio encoding at 48 kHz, 16-bit
  • 3.5mm Line In audio input
Streaming
  • Native Facebook, Twitch, and YouTube support
  • Multiple streaming protocols including RTSP, RTMP/S, and NDI|HX2
  • Simultaneous streaming to various platforms
Web UI
  • Dashboard provides real-time performance monitoring
  • Live streaming configuration
  • General settings
  • Encoding wizards for configuring profiles
  • Network management and configuration
  • Firmware updates
  • User admin management
System Requirements
  • 10/100/1000Mb/s Ethernet
  • Wi-Fi 802.11 a/b/g/n/ac
  • USB 3G/4G mobile broadband modem (not included)
Web UI Supported Browsers
  • Apple Safari 11.1 and above
  • Google Chrome version 49 and above
  • Microsoft Edge
  • Microsoft Internet Explorer 11
  • Mozilla Firefox version 61 and above
  • Opera 55.0.2994.44 and above
LED Indicators
  • LED status indicators for:
    • power, input signal, streaming, Ethernet, and Wi-Fi
Write Your Own Review
You're reviewing:Magewell Ultra Encode HDMI
Your Rating

Items Included:

  • Magewell Ultra Encode HDMI
  • USB AC Power Adapter with US/EU/UK/AU/JP Plugs
  • USB Type-B 2.0 Cable
  • HDMI Cable
  • Wi-Fi Antenna
  • T-Bracket
  • Limited 2-Year Manufacturer Warranty (Encoder)
  • Limited 1-Year Manufacturer Warranty (Accessory)
More Information
SPECS
General Video Inputs 1 x HDMI (HDMI 1.4a)
  Audio Inputs 1 x 1/8" / 3.5 mm TRS
  Video Outputs 1 x HDMI (HDMI 1.4a) (Loop Output)
  Audio Outputs 1 x 1/8" / 3.5 mm TRS
  Other I/O 1 x RJ45 LAN
  Expansion Slots None
  Input Video Format SDI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K at 23.98/24/25/29.97/30/59.94/60 fps
DCI 4KPsF 23.98/24/25/29.97/30/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/50/59.94/60 fps
1080p 23.98/25/29.97/30/50/59.94/60/100/119.88/120 fps
1080i 23.98/24/25/29.97/30/50/59.94/60 fps
720p 25/29.97/30/50/59.94/60/144 fps
576p 50/100/144 fps
576i / 625 lines 25/50 fps
480p 59.94/60/144 fps
480i / 525 lines 29.97/30 fps
  Output Video Format HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K at 23.98/24/25/29.97/30/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 23.98/24/25/29.97/30/50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60/144 fps
576i / 625 lines 25/50 fps
480p 59.94/60/144 fps
480i / 525 lines 29.97/30 fps
  Embedded Audio SDI
Standards HDR Compatibility None
IP Streaming Video IP Encoding H.264, H.265, HLS, NDI, RTMP, RTSP, SRT, TS, UDP: 480 x 270 to 1920 x 1080 at 5, 10, 15, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p
  Audio IP Encoding AAC: 16-Bit / 48 kHz (16.00 to 256.00 Kb/s)
  Wi-Fi Yes
Power Power I/O 1 x USB-B (5 VDC at 2 A) Input
  Power Consumption 9.5 W
Environmental Operating Temperature 32 to 72°F / 0 to 40°C
  Storage Temperature -4 to 158°F / -20 to 70°C
  Operating Humidity 5 to 90% (Non-Condensing)
General Dimensions 4.2 x 4.2 x 1" / 106.6 x 106.2 x 25 mm
Packaging Info Package Weight 1.375 lb
  Box Dimensions (LxWxH) 9.4 x 6.1 x 2.6"
