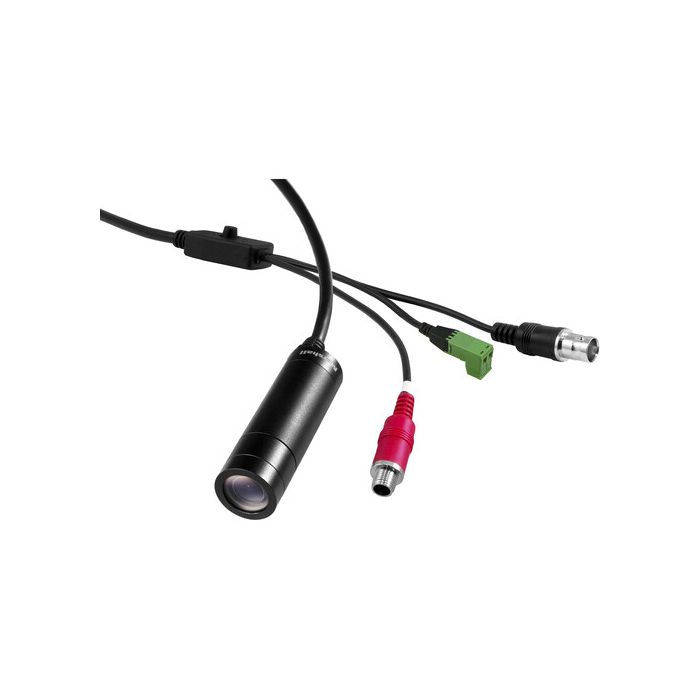

Marshall Electronics CV228 All-Weather 3G/HD-SDI HD Lipstick Camera
- IP67 Rated, 1/2.8" CMOS Sensor
- Up to 1080p60 Video Output
- Full-Sized 3G/HD-SDI Output Port
- Includes 4mm Lens with 85° FOV
- 10' Breakout Cable
- Integrated OSD Joystick
The upgraded Marshall Electronics CV228 All-Weather 3G/HD-SDI HD Lipstick Camera features an IP67 rating for dust and water protection and a 1/2.8" CMOS sensor in a compact form factor. The CV228 can capture up to 1080p video at 60 fps and output said video via the full-size BNC connector on its breakout cable. An included M12 4mm lens is interchangeable and provides an 85° horizontal field of view.
The 10' breakout cable not only has a 3G/HD-SDI connection, but also an RS-485 and locking DC connector to facilitate power and control. A built-in joystick offers OSD control, while the RS-485 connection operates via VISCA protocol to control image parameters. Mount the camera virtually anywhere thanks to its ultracompact form factor and 1/4"-20 mounting thread to attach it to tripods or stands.
Features at a Glance
- Full-sized 3G/HD-SDI BNC output
- 2.5MP, 1/2.8" CMOS sensor
- 10' breakout cable with BNC, RS-484 remote adjustment, and locking 12V power connector
- Interchangeable 4.0mm 85&Deg; lens with IP67 cap
- IPIP67 weatherproof housing, submerge in up to 10' of water
- Full HD video resolutions
- Remote adjustable via RS-485 with VISCA protocol or OSD menu joystick
- Compatible with optional CV-RCP-V2 touchscreen with RCP protocol and free camera control software
- Wide range of image adjustment settings, including white balance, color, gain control, pedestal, white clip, exposure, gamma, and more
- Marshall Electronics CV228 All-Weather 3G/HD-SDI HD Lipstick Camera
- Breakout Cable (10')
- 12V Power Supply
