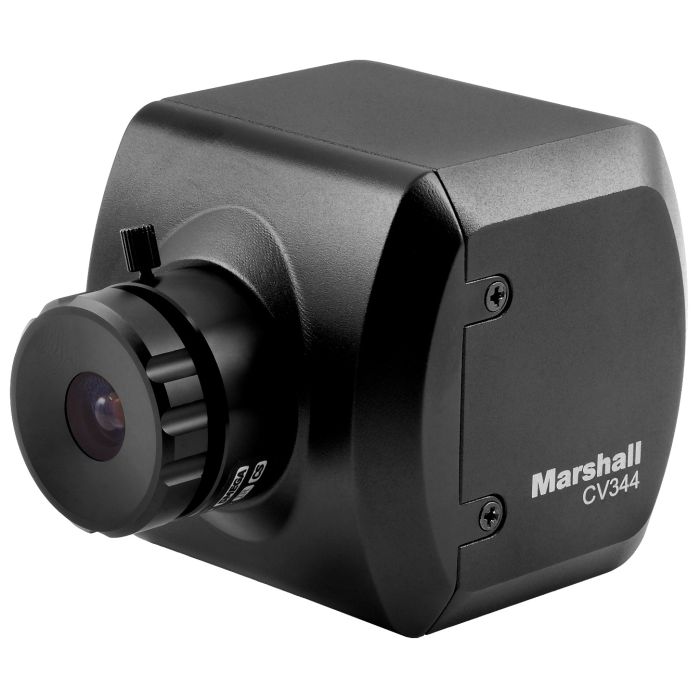

Marshall Electronics CV344 Compact Full-HD Camera (3G/HDSDI)

SKU
CV344
Request for Price
Product Highlights:
  • 3G/HDSDI output
  • 2.5 Megapixel (1/2.8") sensor (4:2:2 color)
  • Interchangeable CS/C lens mount (sold separately)
  • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • Remote adjust through RS485 (Visca) or OSD menu joystick
  • Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), white clip, exposure, gamma, and more.
The Marshall CV344 Full-HD Miniature Camera offers performance, flexibility, and value in a compact form factor. Built around a next-generation 2.5-Megapixel, 1/2.8-inch sensor, the CV344 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 60/59/50fps. The CV344 utilizes a full-sized BNC (3G/HDSDI) output on the rear panel and locking I/O connection for power, control, and stereo audio input (embedded on 3G/HDSDI output). The CV344's CS lens mount offers a wide range of prime and varifocal lens options from ultra-wide to telephoto. The CV344 can capture detailed shots while maintaining an ultra-discreet compact point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.
Write Your Own Review
You're reviewing:Marshall Electronics CV344 Compact Full-HD Camera (3G/HDSDI)
Your Rating
    • Marshall Electronics CV344 Compact HD Camera (3G/HD-SDI)
      • Camera Breakout Cable
        • C-Mount Lens Adapter
          • 12 VDC Power Supply

          CV344 - Specification

          More Information
          General
          Sensor:1/2.8", 2.5 MP
          Supported Frame Rates:1080p: 60/59.94/50/30/29.97/25/24/23.98
          1080i: 60/59.94/50
          720p: 60/59.94/50
          Lens Mount:C/CS
          Connectors:3G/HD-SDI: 1 x BNC
          Audio, Power, and Control: 1 x 12-Pin Hirose
          Iris: 1 x 4-Pin
          Sensor:1/2.8", 2.5 MP
          Supported Frame Rates:1080p: 60/59.94/50/30/29.97/25/24/23.98
          1080i: 60/59.94/50
          720p: 60/59.94/50
          Lens Mount:C/CS
          Connectors:3G/HD-SDI: 1 x BNC
          Audio, Power, and Control: 1 x 12-Pin Hirose
          Iris: 1 x 4-Pin
          Packaging Info
          Package Weight:1.46 lb
          Box Dimensions (LxWxH):9.4 x 5.1 x 4.2"
          Package Weight:1.46 lb
          Box Dimensions (LxWxH):9.4 x 5.1 x 4.2"
