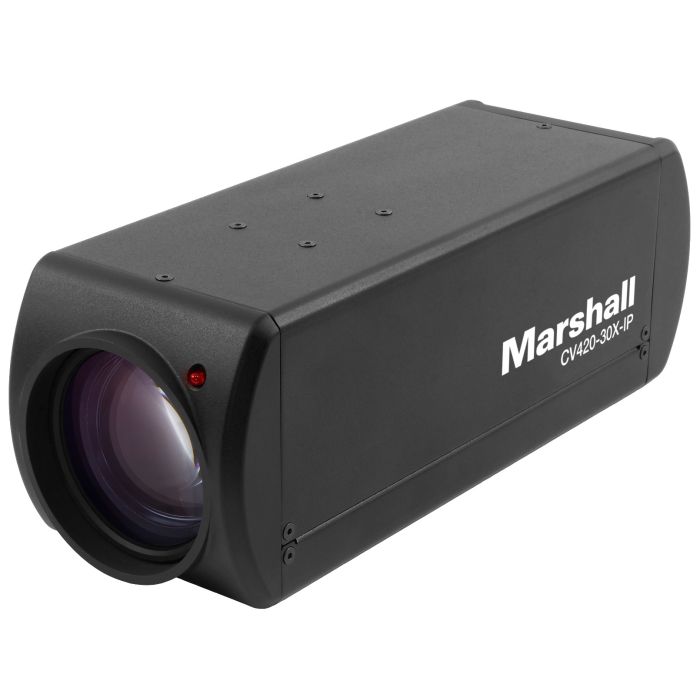

Marshall Electronics CV420-30X-IP 30X Zoom IP Camera

SKU
CV420-30X-IP
Request for Price

Product Highlights :

  • 8.5 Megapixel (1/2.5") 4K (UHD) sensor
  • 30X Optical Zoom (4.6~135mm) - 68° AOV
  • Up to 3840x2160, 1920x1080, and 1280x720p
  • Frame-rates: 59.94/50/29.97/25fps
  • Triple-stream IP (H.265/H.264/MJPEG) and HDMI 2.0 outputs
  • Ethernet I/O supports video, control, and PoE over a single cable
  • RS232 and 3.5mm audio input with passthrough
  • Visca over IP, Onvif, SRT compliant


Marshall Electronics

The CV420-30X-IP 30X Zoom IP Camera utilizes a professional 8.5MP sensor to capture brilliant 4K (UHD) with true colors up to 3840x2160p at 60fps with support for all HD formats.

The 30X optical zoom block offers a flexible zoom range of 4.6 to 135mm starting at 68° through 3° horizontal angle-of-view for maintaining image crispness in both wide and tight shots.

Exceptional low-light sensitivity ensures the CV420-30X-IP will maintain a clear picture in variable lighting conditions for live events, houses of worship, indoor/outdoor sporting events, and other dynamic lighting environments.

Ideal for use in networked A/V installations, the CV420-30X-IP offers the convenience of triple-stream (H.264/H.265/MJPEG) and HDMI outputs with audio embedding.

Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.

CV420-30X-IP Applications:

The CV420-30X-IP is suitable for use in networked HD and 4K (UHD) workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, concerts, house of worship and many more.

CV420-30X-IP - Specification

More Information
Imaging
Image Sensor:1/2.5" 8 MP CMOS
Supported Video Resolutions:UHD 4K: 59.94/50/29.97/25
1080p: 59.94/50/29.97/25
720p: 59.94/50/29.97/25
Zoom Ratio:Optical: 30x
Focal Length:4.6 to 135mm
Horizontal Angle of View:68-3.5°
Aperture Range:f/1.5 to f/3.4
Shutter Speed:1 to 1/10,000 Second
Minimum Object Distance:Wide/Telephoto: 4.9' / 1.5 m
Video S/N Ratio:> 50 dB
Minimum Illumination:Color: 0.1 Lux, f/1.6, 50 IRE, AGC On
Night Mode: BW: 0.02 Lux, f/1.6, 50 IRE, AGC On
Filter Design:Day, Night Modes: Mechanical IR Cut Filter
Presets:128
View Patrol:Groups: 4
Iris Control:Auto, Manual (Remote Control)
Autofocus:Auto, One-Push fast AF, Interval AF
Zoom Trigger AF, Zoom Tracking, ICR Compensation AF
Exposure Control:Auto Mode: WDR (Wide Dynamic Range)
Mode Shutter Speeds:
Manual: 1 to 1/10,000 Sec
Shutter Priority: 1 to 1/10,000 Sec
Flickerless: NTSC: 1/60 Sec, PAL: 1/50 Sec
Gain Control:Auto, Manual
White Balance:Auto: 2500K to 7500K
ATW: 2000K to 10,000K
Manual: R/B Gain, One-Push WB
Indoor: 3200K
Outdoor: 5800K
Backlight Compensation:On, Off
Defog:Yes
Exposure Compensation:Auto/Flickerless/Shutter-Priority Mode: -7 to +7
Gamma Correction:Yes
Sharpness:Configurable
Noise Reduction:2D/3D Noise Reduction
Dynamic Range:Wide Dynamic Range, 120 dB
Privacy Mask Type:Spherical Zone Mask
Orientation:Off, Flip, Mirror, Both
Electronic Image Stabilization:Yes
Encoder Video Profile:Multiple Profiles
Video Standard:H.265, H.264, MJPEG, Haivision SRT
Video Streaming
Output Modes:HDMI or Single Stream Output:
UHD 4K: 59.94/50
Simultaneous HDMI & Streaming Outputs:
UHD 4K: 29.97/25
1080p: 59.94/50/29.97/25
720p: 59.94/50/29.97/25
Multiple Streaming:Triple Streaming Structure:
H.265 8M 60 fps, H.264 2M 60 fps, H.264 D1 30 fps
HDMI
Data Rate:CBR: 64 to 20000, Default: 8000
CVBR: 64 to 20000, Default Max: 8000
VBR: 1 to 10
MJPEG: High, Mid, Low
System Compatibility:ONVIF Profile S
Protocols:ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP
IGMP, IPv4/6, NTP, RTSP/RTCP/RTP, QoS
SMTP, SNMP, TCP, TLS/TTLS, UDP, UPnP
802.1X, SRT, MPEG-TS
Internet Security:IEEE 802.1X
HTTPS
Audio
Audio Compression Format:G.711
Audio In:Line In, 3.5 mm (Stereo/Mono)
Audio Out:Line Out, 3.5 mm (Stereo/Mono)
Interface
HDMI Out:1 x HDMI Type A, HDMI 2.0
Ethernet:1 x RJ45
Control Interface:RS-232, IP
RS-232:In: 1 x 8-Pin Mini DIN
Power
DC In:12 V +/- 20%
PoE:802.3 af
Power Consumption:< 12 W
Physical & Environmental
Tripod Mount Thread:1/4"-20
Operating Temperature:32 to 104°F / 0 to 40°C
Storage Temperature:-4 to 140°F / -20 to 60°C
Dimensions (WxDxH):7.4 x 2.6 x 2.6" / 188.4 x 67 x 67 mm
Weight:2.2 lb / 1 kg
Packaging Info
Package Weight:3.73 lb
Box Dimensions (LxWxH):10.9 x 6.7 x 3.5"
    • Marshall Electronics CV420-30X-IP Zoom Block UHD 4K IP Camera with HDMI 2.0 & PoE
      • Power Adapter
        • Power Cord
