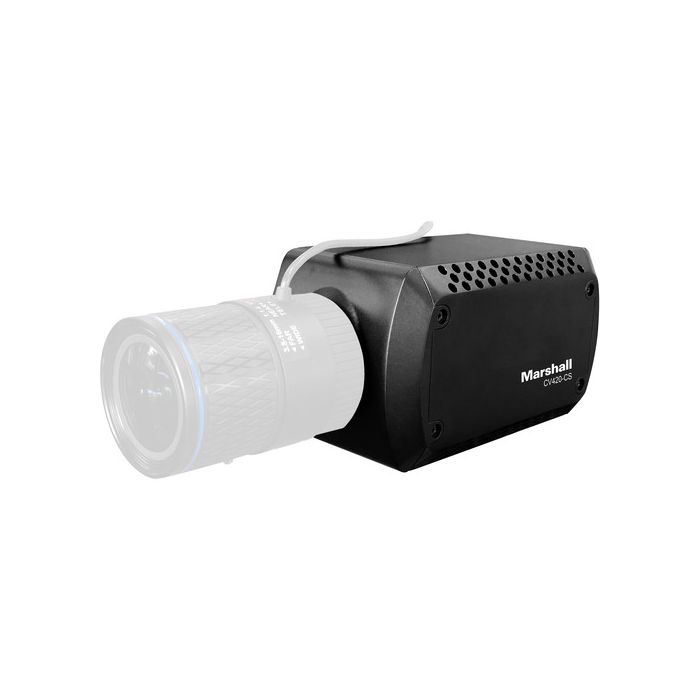

Marshall Electronics CV420-CS 12.4MP Compact 4K60 Camera with 12G-SDI and HDMI Output (No Lens)


Product Highlights :

  • Supports DCI 4K, UHD, and HD up to 60p
  • Supports PLQ and HLQ HDR
  • 12.4 MP 1/1.7" Sony Sensor
  • CS/C Lens Mount
  • Day/Night Vision
  • 12G-SDI BNC & HDMI 2.0 Outputs
  • Breakout Cable

The Marshall Electronics CV420-CS 12.4MP Compact 4K60 Camera with 12G-SDI and HDMI Output is a 12.4 MP 1/1.7" Sony sensor camera that supports a resolution of up to 4096 x 2160p at 60 fps. It is suitable for use for cinema as well as broadcast applications, supporting DCI 4K, UHD 4K, 1080i/p, and 720p capture, as well as PLQ and HLQ HDR capture. It feature both 12G-SDI and an HDMI 2.0 output connectors. This item is for the camera body alone, and does not include a lens.

It has a flexible CS/C lens mount and is compatible with the CS-0734-12MP, CS-3.2-12MP, CS-5.0-12MP, and CS-1040-8MP lenses (available separately). This camera includes a breakout cable, which features microphone and line-level TRS stereo audio inputs and allows the camera to be remotely adjusted through RS-485 (Visca) or OSD menu joystick.

  • Wide range of picture-adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), exposure, and gamma
  • For broadcast, sports, television, news, house of worship, courtroom, government assembly, live music and events, studio production, remote learning, provideo, and cinematic production applications
  • The CV420-CS can be used as a fixed 4K wide shot where select HD windows can be captured and used within the frame in post
  • The camera shoots in color when set to Day mode, and and can see into the IR spectrum when set to Night mode
  • TRS stereo audio inputs (mic & line level)
  • Remote adjust through RS485 (Visca) or OSD menu joystick

CV420-CS - Specification

More Information
Image Sensor:1/2.5" 8 MP CMOS
Supported Video Resolutions:UHD 4K: 59.94/50/29.97/25
1080p: 59.94/50/29.97/25
720p: 59.94/50/29.97/25
Zoom Ratio:Optical: 30x
Focal Length:4.6 to 135mm
Horizontal Angle of View:68-3.5°
Aperture Range:f/1.5 to f/3.4
Shutter Speed:1 to 1/10,000 Second
Minimum Object Distance:Wide/Telephoto: 4.9' / 1.5 m
Video S/N Ratio:> 50 dB
Minimum Illumination:Color: 0.1 Lux, f/1.6, 50 IRE, AGC On
Night Mode: BW: 0.02 Lux, f/1.6, 50 IRE, AGC On
Filter Design:Day, Night Modes: Mechanical IR Cut Filter
View Patrol:Groups: 4
Iris Control:Auto, Manual (Remote Control)
Autofocus:Auto, One-Push fast AF, Interval AF
Zoom Trigger AF, Zoom Tracking, ICR Compensation AF
Exposure Control:Auto Mode: WDR (Wide Dynamic Range)
Mode Shutter Speeds:
Manual: 1 to 1/10,000 Sec
Shutter Priority: 1 to 1/10,000 Sec
Flickerless: NTSC: 1/60 Sec, PAL: 1/50 Sec
Gain Control:Auto, Manual
White Balance:Auto: 2500K to 7500K
ATW: 2000K to 10,000K
Manual: R/B Gain, One-Push WB
Indoor: 3200K
Outdoor: 5800K
Backlight Compensation:On, Off
Exposure Compensation:Auto/Flickerless/Shutter-Priority Mode: -7 to +7
Gamma Correction:Yes
Noise Reduction:2D/3D Noise Reduction
Dynamic Range:Wide Dynamic Range, 120 dB
Privacy Mask Type:Spherical Zone Mask
Orientation:Off, Flip, Mirror, Both
Electronic Image Stabilization:Yes
Encoder Video Profile:Multiple Profiles
Video Standard:H.265, H.264, MJPEG, Haivision SRT
Zoom Ratio::
Video Streaming
Output Modes:HDMI or Single Stream Output:
UHD 4K: 59.94/50
Simultaneous HDMI & Streaming Outputs:
UHD 4K: 29.97/25
1080p: 59.94/50/29.97/25
720p: 59.94/50/29.97/25
Multiple Streaming:Triple Streaming Structure:
H.265 8M 60 fps, H.264 2M 60 fps, H.264 D1 30 fps
Data Rate:CBR: 64 to 20000, Default: 8000
CVBR: 64 to 20000, Default Max: 8000
VBR: 1 to 10
MJPEG: High, Mid, Low
System Compatibility:ONVIF Profile S
802.1X, SRT, MPEG-TS
Internet Security:IEEE 802.1X
Audio Compression Format:G.711
Audio In:Line In, 3.5 mm (Stereo/Mono)
Audio Out:Line Out, 3.5 mm (Stereo/Mono)
HDMI Out:1 x HDMI Type A, HDMI 2.0
Ethernet:1 x RJ45
Control Interface:RS-232, IP
RS-232:In: 1 x 8-Pin Mini DIN
DC In:12 V +/- 20%
PoE:802.3 af
Power Consumption:< 12 W
Physical & Environmental
Tripod Mount Thread:1/4"-20
Operating Temperature:32 to 104°F / 0 to 40°C
Storage Temperature:-4 to 140°F / -20 to 60°C
Dimensions (WxDxH):7.4 x 2.6 x 2.6" / 188.4 x 67 x 67 mm
Weight:2.2 lb / 1 kg
Packaging Info
Package Weight:3.73 lb
Box Dimensions (LxWxH):10.9 x 6.7 x 3.5"
Package Weight:2.805 lb
Box Dimensions (LxWxH):13.05 x 5.45 x 4.15"
Sensor:12.4 MP, 1/1.7" Sony
Lens Mount:CS/C
Resolution:4096 x 2160p: 60/59.94/50/30/29.97/25/24/23.98
:3840 x 2160p: 60/59.94/50/30/29.97/25/24/23.98
:1080p: 60/59.94/50/30/29.97/25/24/23.98
:1080i: 60/59.94/50
:720p: 60/59.94/50/30/29.97/25/24/23.98
Mount:2 x 1/4"-20 Universal Mounting Screws
Connectors:1 x 12G-SDI BNC: Video Output
:1 x HDMI 2.0: Video Output
:2 x Micro-USB: Firmware Update Ports
:1 x DC-Auto Iris Control Port
:1 x Breakout Port: Power/Control/Audio
Indicator:1 x Power Indicator
Breakout Cable Connectors:Connector 1:
:1 x Breakout Port
:Connector 2:
:1 x 12 VDC Power Input
:1 x RS-485 Control Port
:1 x TRS Stereo Audio Line Input
:1 x Audio Microphone Input
Compatible Lenses:CS-0734-12MP, CS-3.2-12MP, CS-5.0-12MP, and CS-1040-8MP
Items Included:
  • Marshall Electronics CV420-CS 12.4MP Compact 4K60 Camera with 12G-SDI and HDMI Output (No Lens)
  • Breakout Cable
  • Locking Universal Power Supply
  • Limited 2-Year Warranty
