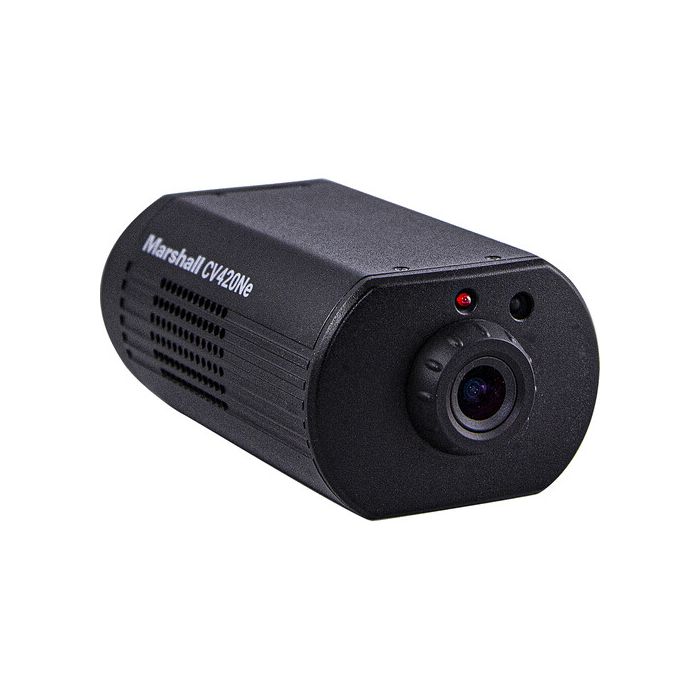

Marshall Electronics CV420Ne 4K60 HDMI, USB 3.0, and NDI|HX3 Streaming Camera

SKU
CV420Ne
$1,199.00



Key Features
  • For Live Events, Podcasts, and Broadcast
  • 4K60 Video Output
  • Sony 1/1.8" 4K CMOS Sensor
  • ePTZ with 16:9 HD Images
  • HDMI, USB 3.0 & NDI|HX3 Connectivity
  • 1/4"-20 Female Thread

Broadcast video in crisp UHD with the CV420Ne 4K60 HDMI, USB 3.0, and NDI|HX3 Streaming Camera from Marshall. Capture the scene, presentation, or podcast with a versatile 4K Sony CMOS sensor and wide viewing angle. Multiple video output options and flexibility-focused settings enhance the utility of this compact camera.

Powerful UHD Sensor

A Sony 9.2MP 1/1/8" 4K CMOS sensor delivers crystal-clear video and color rendering in an impressively small package. Video is recorded at up to 4K60 with 12x digital zoom, and the built-in 4.5mm lens features a 100° horizontal viewing angle. The camera also offers digital pan-tilt-zoom capability, allowing a 16:9 HD frame to be maneuvered across the 4K sensor.


Versatile Video

The CV420Ne provides its 4K60 video over two output options. Video streams over the HDMI output utilized in combination with either USB-B 3.0 or a lossless NDI|HX3 connection via IP. This flexibility lets the compact camera to be integrated into pre-existing ecosystems, especially in conjunction with optional splitter and control equipment from Marshall (available separately). An included IR controls the unit locally, and remote command is achieved via VMS, GUI, or Visca over IP connected devices as well as UVC commands over USB.


Small-Scale Design

Weighing in at less than a pound in a palm-sized housing, Marshall's compact 4K streaming camera has an extremely small footprint in your video streaming setup. Power-over-Ethernet support reduces cable clutter, though a 12 VDC input is available as well. The built-in 1/4"-20 female thread on the bottom of the unit accepts any number of industry-standard mounts; a CVM-5 monitor mount is included while Marshall offers additional options available separately.
Write Your Own Review
You're reviewing:Marshall Electronics CV420Ne 4K60 HDMI, USB 3.0, and NDI|HX3 Streaming Camera
Your Rating

Marshall Electronics CV420Ne 4K60 HDMI, USB 3.0, and NDI|HX3 Streaming Camera
Marshall Electronics Universal 1/4"-20 Camera Clip Mount
IR Remote

More Information
SPECS
Sensor
Sony IMX334LQR-C 1/1.8" 9.2 Megapixel CMOS
Video Resolution
4K60/1080p60/720p60
Lens
4.5mm
F16
102° Horizontal Viewing Angle
0.98' / 30 cm Minimum Object Distance
12x Digital Zoom
Electronic Shutter Speed
1 ~ 1/10,000 sec
PTZ Control
ePTZ (HD 16:9 Image within 4K Sensor)
USB I/O
1 x USB-B 3.0 / 3.1/3.2 Gen 1 Integrated Male Input/Output
Video I/O
1x HDMI 2.0 Output
1x RJ45 Output
Audio I/O
1x 1/8" / 3.5 mm Line/Mic Input
Wireless
IR
*Built-In
Power Source
Plug-In Power, PoE
Power Consumption
11 W via PoE
10W via 12 VDC
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Mounting
Bottom: 1 x 1/4"-20 Female Thread
Cable Length
Not Specified by Manufacturer
Dimensions
4.4 x 2.8 x 2" / 113 x 70 x 51 mm
Weight
0.8 lb / 350 g
