Marshall Electronics CV605BK 5x PTZ Camera IP/3GSDI (Black)

SKU
CV605BK
$699.00

Key Features
  • Capture and Stream up to 1080p60 Video
  • 5x Optical Zoom, 10x Digital Zoom
  • 85° Angle of View
  • 3G/HD-SDI and IP Video Output
  • RS-232/VISCA Serial Control
  • Camera Comes in Black Color

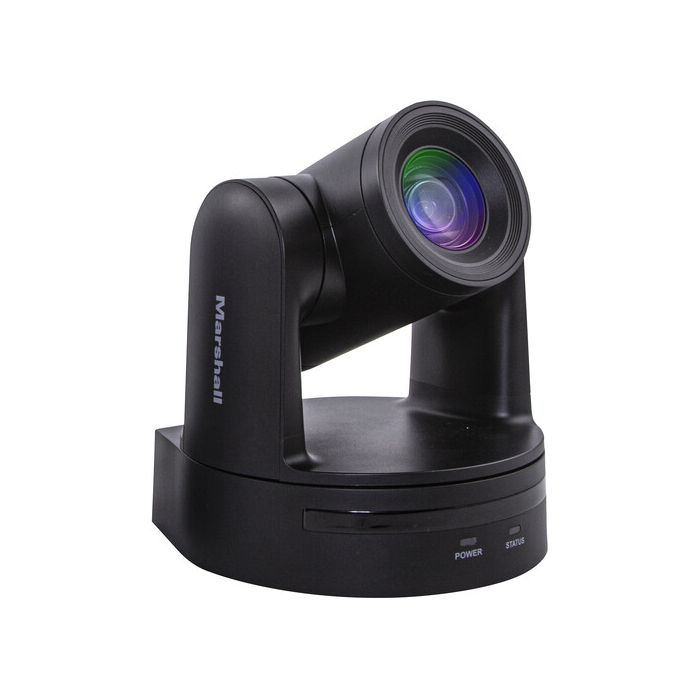

Tailored for professional conferencing applications, the Marshall Electronics CV605 Compact 3G-SDI/IP PTZ Camera in sleek black is a versatile solution for meeting rooms, classrooms, houses of worship, and live events. With its impressive 1080p60 resolution, it offers impeccable video quality, complemented by flexible output options through its 3G-SDI port or IP streaming via LAN. Its 85° wide-angle view, coupled with 5x optical and 10x digital zoom capabilities, ensures comprehensive room coverage with exceptional detail.

Controlled effortlessly through its RS-232 RJ45 input supporting VISCA, Pelco-P, or Pelco-D serial protocols, the CV605 offers convenience and precision. It can be powered either through the included adapter or PoE, catering to various setups. Compatible with the Marshall VS-PTC-IP camera controller, it offers seamless integration and operation.

Enjoy true high-definition imagery, precise autofocus, low noise, and high SNR for crystal-clear visuals. Its quiet PTZ movement, support for multiple network protocols, audio input interface, low-power sleep function, and versatile control protocols make it an indispensable tool for professional environments. With up to 255 presets available for effortless operation, the CV605 ensures unparalleled performance and flexibility in every application.

Write Your Own Review
You're reviewing:Marshall Electronics CV605BK 5x PTZ Camera IP/3GSDI (Black)
Your Rating
  • Marshall Electronics CV605 Compact 3G-SDI/IP PTZ Camera with 5x Optical Zoom (Black)
  • Power Adapter
  • Remote Control
More Information
SPECS
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2 Megapixel
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1/25 Second
Optical Zoom Ratio
5x
Max Digital Zoom
10x
External Recording Modes
SDI/BNC / RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps

Broadcast Output
NTSC
IP Streaming
H.264, H.265, ONVIF, RTMP, RTSP
1920 x 1080
1280 x 720
640 x 480
640 x 360
320 x 240
320 x 180
Supported Control Protocols
RS-232
VISCA
PoE Support
PoE 802.3af
Mounting
1x 1/4"-20 Female
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2 Megapixel
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2 Megapixel
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Focal Length
3 to 15.5mm
Optical Zoom Ratio
5x
Max Digital Zoom
10x
Field of View
85 to 16°
Maximum Aperture
f/1.8 to 11
PoE Support
PoE 802.3af
Power I/O
1x Barrel (12VDC at 1 A) Input
Power Consumption
Device: 110 to 220 VAC at 1.5 A (12 W)
