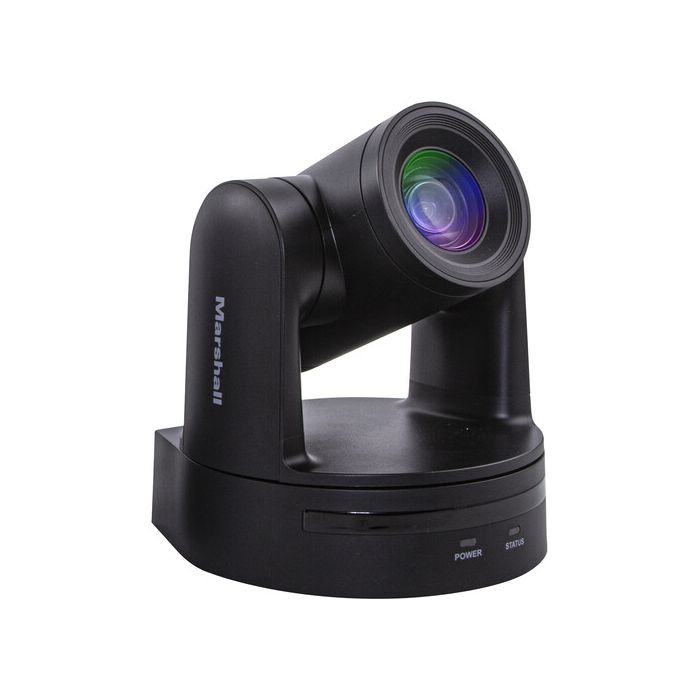

Marshall Electronics CV605U3 5x PTZ Camera USB/IP/HDI (Black)

SKU
CV605U3
$699.00



Key Features
  • 1/2.8" 2.07MP HD CMOS Sensor
  • 5x Optical Zoom, 10x Digital Zoom
  • Up to 1920 x 1080p60 Video Output
  • USB 3.1 Type-C, HDMI, LAN Output
  • 255 Preset Positions, 10 by IR Remote
  • ±135° Pan, ±30° Tilt Ranges
  • IP/IR Remote/RS-232 Control
  • Zoom Conference Software Certified

Elevate your conferencing experience with the sophisticated CV605-U3 Compact PTZ USB/HDMI Camera from Marshall Electronics. This sleek black camera is engineered to deliver exceptional performance in a variety of settings, including corporate boardrooms, educational facilities, places of worship, live events, courtrooms, healthcare environments, and broadcast studios. Its user-friendly design ensures effortless setup and compatibility with leading conferencing platforms, making it an ideal choice for professional communication needs.

Equipped with a wide-angle 5x optical zoom lens and a 1/2.8" 2.07MP CMOS sensor, the CV605-U3 captures stunning HD video with remarkable clarity and detail, even in challenging lighting conditions. With its versatile ±135° pan and ±30° tilt capabilities, controlled via IP or RS-232, you can precisely frame your shots and store up to 255 preset positions for streamlined operation. Whether you're conducting virtual meetings, live streaming events, or recording presentations, this camera delivers professional-grade results.

The CV605-U3 offers flexible connectivity options, including USB Type-C, HDMI, and RJ45 outputs, enabling seamless integration into your existing setup. Its support for RTSP/RTMP streaming and Power-over-Ethernet (PoE) simplifies cable management, allowing for a clean and efficient installation. Additionally, the camera features a 3.5mm analog audio input for embedding audio, enhancing the overall audiovisual experience.

Zoom-certified and featuring an ultra-wide 85° horizontal angle of view, the CV605-U3 ensures compatibility and reliability within the Zoom Room infrastructure, guaranteeing a high-quality video source for all your Zoom conferences. Moreover, its exceptional low-light sensitivity and privacy standby mode provide added versatility and security, making it a valuable asset for any professional conferencing environment.

Whether you're conducting remote meetings, hosting virtual events, or collaborating with colleagues across the globe, the Marshall Electronics CV605-U3 PTZ Camera empowers you to communicate effectively and confidently, delivering superior video quality and performance every time.

Write Your Own Review
You're reviewing:Marshall Electronics CV605U3 5x PTZ Camera USB/IP/HDI (Black)
Your Rating
  • Marshall Electronics CV605-U3 Compact PTZ USB/HDMI Camera (Black)
  • IR Remote Control
  • Power Adapter
  • USB Type-C Cable
More Information
SPECS
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1/25 Second
Signal-to-Noise Ratio
55 dB
Minimum Illumination
0.5 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
2400 to 7100K
Presets: Auto, Manual, One Push
Focal Length
3.1 to 15.5mm
Optical Zoom Ratio
5x
Max Digital Zoom
10x
Field of View
84 to 20°
Maximum Aperture
f/1.8 to 11
Presets
255 via IP, RS-232, VISCA
10 via IR
Move Speed
Pan: 0.1 to 60°/sec
Tilt: 0.1 to 30°/sec
Movement Range
Pan: 270° (-135 to 135°)
Tilt: 60° (-30 to 30°)
Tally Light
No
Supported Control Protocols
IP
IR
Pelco-D
Pelco-P
RS-232
VISCA
Video I/O
1x HDMI 1.0 Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
1x RJ45 Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O
1x RJ45 (RS-232) Input
1x RJ45 (LAN) Control Input
1x USB-C (USB 3.2 / 3.1 Gen 1) Video Input
Built-In Speaker
No
Power I/O
1x Barrel (12VDC at 1 A) Input
Power Consumption
Power Supply: 110 to 220 VAC at 1.5 A (12 W)
Operating Temperature
14 to 122°F / -10 to 50°C
Storage Temperature
14 to 140°F / -10 to 60°C
Operating Humidity
20 to 80%
Storage Humidity
20 to 95%
Mounting
1x 1/4"-20 Female
Dimensions (W x H x D)
5.7 x 6.1 x 5.8" / 145.5 x 154 x 147 mm
Weight
2.84 lb / 1.29 kg
