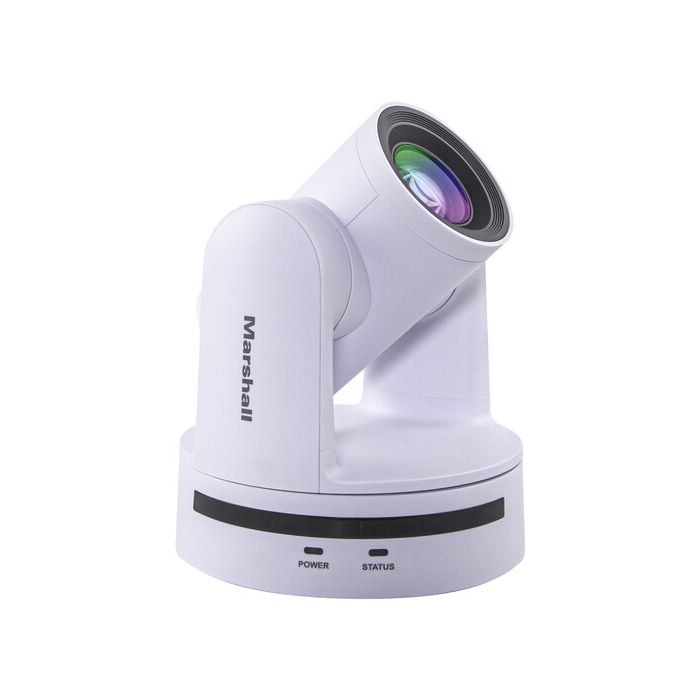

Marshall Electronics CV605WH 5x PTZ Camera IP/3GSDI (White)

SKU
CV605WH
د.إ.‏2٬568٫83



Key Features
  • Capture and Stream up to 1080p60 Video
  • 5x Optical Zoom, 10x Digital Zoom
  • 85° Angle of View
  • 3G/HD-SDI and IP Video Output
  • RS-232/VISCA Serial Control
  • Camera Comes in White Color

Introducing the Marshall Electronics CV605 Compact PTZ Camera in sleek white, meticulously crafted for professional conferencing applications across diverse environments. From bustling meeting rooms to dynamic classrooms, sacred places of worship, live streaming platforms, and vibrant event productions, this camera is your go-to solution for capturing every moment with clarity and precision.

Featuring a state-of-the-art 1/2.8" high-quality CMOS sensor, the CV605 delivers stunning video resolutions of up to 1920x1080p60, ensuring every detail is captured with impeccable clarity. Its advanced optical zoom lens offers a wide 85° angle of view with minimal distortion, supported by a powerful 5x optical zoom and an additional 10x digital zoom, allowing you to effortlessly cover the entire expanse of any room or space.

Experience unparalleled control and management with the CV605's versatile connectivity options. Whether utilizing its RS-232 RJ45 input with VISCA, Pelco-P, or Pelco-D serial protocols or leveraging its compatibility with separately available camera controllers like the Marshall VS-PTC-IP, you'll have the flexibility and precision needed to capture the perfect shot every time.

Designed for seamless integration into your existing setup, the CV605 can be powered using the included adapter or via Power-over-Ethernet (PoE) on a supported network, ensuring hassle-free operation in any environment. Plus, with its support for multiple network protocols, including ONVIF, RTSP, and RTMP IP streaming, you'll enjoy effortless connectivity and compatibility with a wide range of systems and platforms.

Experience whisper-quiet PTZ movement thanks to high-accuracy step motor technology, ensuring smooth, precise maneuvers and fast, accurate positioning, even when utilizing presets. With up to 255 presets available via serial and 10 presets accessible on the included IR remote controller, you'll have unparalleled flexibility and convenience at your fingertips.

But the CV605 isn't just about exceptional performance—it's also designed with efficiency and sustainability in mind. With its low-power sleep function, the camera consumes ultra-low power while in sleep mode, helping to reduce energy consumption and lower operating costs without compromising on performance.

In addition to its outstanding video capabilities, the CV605 also boasts advanced audio input interface, supporting multiple sampling frequencies and audio encoding formats, ensuring crystal-clear sound to accompany your high-definition visuals.

Whether you're hosting virtual meetings, broadcasting live events, or capturing educational lectures, the Marshall Electronics CV605 Compact PTZ Camera is your trusted companion, delivering uncompromising performance, unmatched versatility, and unparalleled reliability in every scenario.

Write Your Own Review
You're reviewing:Marshall Electronics CV605WH 5x PTZ Camera IP/3GSDI (White)
  • Marshall Electronics CV605 Compact 3G-SDI/IP PTZ Camera with 5x Optical Zoom (White)
  • Power Adapter
  • Remote Control
More Information
SPECS
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2 Megapixel
Built-In ND Filter
No
Focus Control
Autofocus
Manual Focus
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1/25 Second
Signal-to-Noise Ratio
55 dB
Minimum Illumination
0.5 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: Auto, Manual, One Push
Focal Length
3 to 15.5mm
Optical Zoom Ratio
5x
Max Digital Zoom
10x
Field of View
85 to 16°
Maximum Aperture
f/1.8 to 11
External Recording Modes
SDI/BNC / RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps
Audio Recording
AAC Audio
G.711 Audio
Broadcast Output
NTSC
IP Streaming
H.264, H.265, ONVIF, RTMP, RTSP
1920 x 1080
1280 x 720
640 x 480
640 x 360
320 x 240
320 x 180
Presets
255 via RS-232
10 via IR
Move Speed
Pan: 1 to 60°/sec
Tilt: 1 to 30°/sec
Movement Range
Pan: 270° (-135 to 135°)
Tilt: 60° (-30 to 30°)
Tally Light
No
Supported Control Protocols
RS-232
VISCA
Video I/O
1x BNC (3G-SDI) Output
1x RJ45 Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O
1x RJ45 (RS-232) Input
Built-In Speaker
No
PoE Support
PoE 802.3af
Power I/O
1x Barrel (12VDC at 1 A) Input
Power Consumption
Device: 110 to 220 VAC at 1.5 A (12 W)
Operating Temperature
14 to 122°F / -10 to 50°C
Storage Temperature
14 to 140°F / -10 to 60°C
Operating Humidity
20 to 80%
Storage Humidity
20 to 95%
Mounting
1x 1/4"-20 Female
Certifications
FCC Part 15 Class A
Dimensions (W x H x D)
5.7 x 6.1 x 5.8" / 145.4 x 154 x 147 mm
Weight
2.8 lb / 1.27 kg
