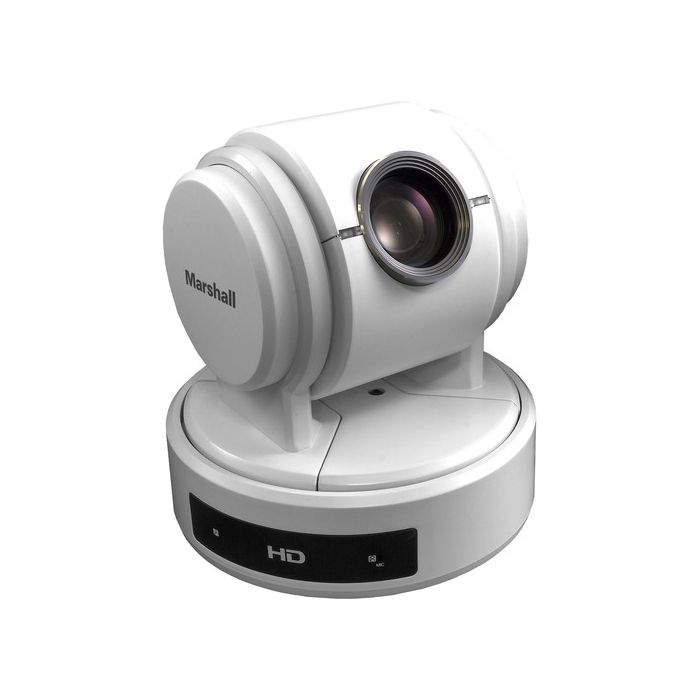

Marshall Electronics CV610-U3-V2 Compact PTZ USB/HDMI Camera (White)

SKU
CV610-U3W-V2
$999.00

Product Highlights:

  • 1/2.8" 2MP CMOS Sensor
  • 10x Optical/12x Digital Zoom
  • Up to 1920 x 1080p60 Video Output
  • 128 Preset Positions
  • Concurrent USB 3.1/HDMI Output
  • 350° Pan, 120° Tilt
  • PC-GUI/IR Remote/RS-232/RS-422/RS-485
  • USB 3.1 Gen 1 & Breakout Cables Included
  • Image Flip

The white Marshall Electronics CV610-U3-V2 Compact PTZ USB/HDMI Camera is well suited for use as a remotely controlled video conference camera in various environments such as corporate and government meeting rooms, education, houses of worship, live events, courtrooms, healthcare, and broadcast media.

The CV610-U3-V2 features a wide-angle 10x optical zoom lens with 12x digital zoom, and it incorporates a 1/2.8" 2MP CMOS sensor for clear HD output up to 1080p60. The camera utilizes a DC motor servo controller to achieve high speed and quiet positioning, and you can program up to 128 preset positions which can also incorporate preset exposure, white balance, and picture style. It features 350° of pan and 120° of tilt.

The camera simultaneously outputs via the built-in USB 3.1 Gen 1 port and via the HDMI port by using the included breakout cable that connects to the built-in extension port; the USB port is also backward compatible with USB 2.0. Camera control is achieved via the USB port for use with a Windows or Mac computer, with the included IR remote control, or you can use the breakout cable which provides an RS-232 connector and an RS-422/RS-485 connector to interface with the camera using UVC1.5, UAC2.0, VISCA, or Pelco P/D protocols. The breakout cable also incorporates a 3.5mm audio line input jack.

  • You can store up to six presets of camera direction and camera parameters into the camera, up to six presets on the remote controller, or 128 presets via protocol programming
  • Full HD up to 1080p60 via USB and HDMI
  • Automatic and manual white balance for complex lighting environments
  • 350° pan range
  • 120° tilt range
  • Breakout cable with HDMI, RS-232, RS-422/485, CVBS, and audio is included
  • The camera supports USB 3.1 Gen 1/2.0 video output and control with UVC1.5 compliant software, as well as UAC2.0, VISCA, and Pelco P/D protocols
  • Virtual COM port built in for camera movement control capability
  • Built-in microphone
  • USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s; USB 3.1 Gen 1 and USB 3.0 are synonymous
Write Your Own Review
You're reviewing:Marshall Electronics CV610-U3-V2 Compact PTZ USB/HDMI Camera (White)
Your Rating

Items Included:

  • Marshall Electronics CV610-U3-V2 Compact PTZ USB/HDMI Camera (White)
  • IR Remote Control (Requires 1 x 3V CR2032 Battery - Not Included)
  • Power Adapter
  • Power Cord
  • USB 3.1 Gen 1 Cable
  • Camera Breakout Cable
  • Limited 1-Year Warranty

CV610-U3W-V2 - Specification

More Information
Image Sensor
Image Sensor:1-Chip 1/2.8" CMOS Sensor
Sensor Resolution:2.0 MP
Gain:-3 to 28 dB
Signal-to-Noise Ratio:50 dB
Image Sensor:1-Chip 1/2.8" CMOS Sensor
Sensor Resolution:2.0 MP
Gain:-3 to 28 dB
Signal-to-Noise Ratio:50 dB
Camera
Shutter Speed:1/1 to 1/10,000 sec
Max Digital Zoom:12x
Built-In Microphone Type:Mono
Built-In Speaker:No
IR Cut Filter:No
Flip / Mirror Support:Image Flip, Mirror (Vertical)
Shutter Speed:1/1 to 1/10,000 sec
Max Digital Zoom:12x
Built-In Microphone Type:Mono
Built-In Speaker:No
IR Cut Filter:No
Flip / Mirror Support:Image Flip, Mirror (Vertical)
Lens
Optical Zoom Ratio:10x
Focal Length:3.8 to 38mm
Field of View:Horizontal: 6.4 to 62.5°
Maximum Aperture:f/1.8 to 3.4
Focus Control:Autofocus
Manual Focus
Optical Zoom Ratio:10x
Focal Length:3.8 to 38mm
Field of View:Horizontal: 6.4 to 62.5°
Maximum Aperture:f/1.8 to 3.4
Focus Control:Autofocus
Manual Focus
Video Output
Output Formats:HDMI, USB: 1920 x 1080p at 25, 30, 50, 60 fps1280 x 720p at 25, 30, 50, 60 fps USB: 1024 x 768p at 25, 30, 50, 60 fps 960 x 540p at 25, 30, 50, 60 fps
850 x 480p at 25, 30, 50, 60  fps800 x 600p at 25, 30, 50, 60 fps 768 x 448p at 25, 30, 50, 60 fps 720 x 576p at 25, 30, 50, 60 fps 720 x 540p at 25, 30, 50, 60 fps 720 x 480p at 25, 30, 50, 60 fps 640 x 480p at 25, 30, 50, 60 fps 640 x 360p at 25, 30, 50, 60 fps 352 x 288p at 25, 30, 50, 60 fps
Output Formats:HDMI, USB: 1920 x 1080p at 25, 30, 50, 60 fps1280 x 720p at 25, 30, 50, 60 fps USB: 1024 x 768p at 25, 30, 50, 60 fps 960 x 540p at 25, 30, 50, 60 fps
850 x 480p at 25, 30, 50, 60  fps800 x 600p at 25, 30, 50, 60 fps 768 x 448p at 25, 30, 50, 60 fps 720 x 576p at 25, 30, 50, 60 fps 720 x 540p at 25, 30, 50, 60 fps 720 x 480p at 25, 30, 50, 60 fps 640 x 480p at 25, 30, 50, 60 fps 640 x 360p at 25, 30, 50, 60 fps 352 x 288p at 25, 30, 50, 60 fps
Control
Presets:128 via IR, RS-232
Movement Range:Pan: 350° Tilt: 120°
Tally Light:No
Supported Control Protocols:IR RS-232 RS-422 RS-485 VISCA
Presets:128 via IR, RS-232
Movement Range:Pan: 350° Tilt: 120°
Tally Light:No
Supported Control Protocols:IR RS-232 RS-422 RS-485 VISCA
Interfaces
Video Output Connectors:1 x HDMI Type A (HDMI 1.0) Female 1 x USB 3.0 Type-B (USB Video) Female
Audio I/O:1 x 1/8" / 3.5 mm Stereo Mic Level Input
Video Output Connectors:1 x HDMI Type A (HDMI 1.0) Female 1 x USB 3.0 Type-B (USB Video) Female
Audio I/O:1 x 1/8" / 3.5 mm Stereo Mic Level Input
Power
Power Connectors:1 x JEITA (12 VDC)
Power Connectors:1 x JEITA (12 VDC)
General
Tripod Mounting Thread:1 x 1/4"-20 Female
Certifications:CE, FCC, WEEE, as per Manufacturer
Dimensions:6.1 x 5.71 x 4.41" / 15.5 x 14.5 x 11.2 cm
Weight:6 lb / 2.72 kg
Tripod Mounting Thread:1 x 1/4"-20 Female
Certifications:CE, FCC, WEEE, as per Manufacturer
Dimensions:6.1 x 5.71 x 4.41" / 15.5 x 14.5 x 11.2 cm
Weight:6 lb / 2.72 kg
Packaging Info
Package Weight:4.68 lb
Box Dimensions (LxWxH):11.1 x 9.7 x 7.8"
Package Weight:4.68 lb
Box Dimensions (LxWxH):11.1 x 9.7 x 7.8"
