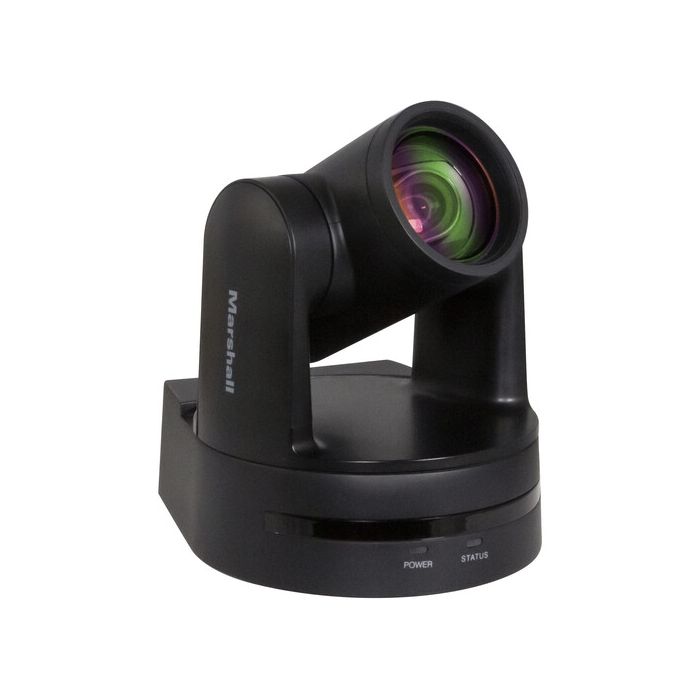

Marshall Electronics CV612-TBI Compact PTZ Camera with AI Auto-Framing (Black)

SKU
CV612-TBI
$899.99

Product Highlights:

  • AI-Powered Auto-Track, Follow, and Frame
  • 1080p60 Resolution
  • 12x Optical Zoom | 8x Digital Zoom
  • 3G-SDI, HDMI, USB-C, and IP Outputs
  • 1/2.8", 2.07MP HD CMOS Sensor
  • 70.3 to 6.6° Horizontal AOV
  • ±170° Pan | ±90° Tilt
  • AI Facial Recognition Technology
  • Dante-Ready AV-H with 2 Audio Channels
  • Includes IR Remote Control

The Marshall Electronics CV612-TBI is a compact, AI-powered PTZ camera designed for live streaming, broadcasting, and professional A/V applications. Featuring a 1/2.8", 2.07MP HD CMOS sensor, it delivers crisp 1080p60 video with accurate color reproduction and advanced image processing for vivid visuals. With a 12x optical zoom lens and an 8x digital zoom, it provides a flexible horizontal angle of view ranging from 70.3 to 6.6°. Its AI-powered facial recognition and auto-tracking ensure smooth framing and accurate presenter tracking, making it ideal for dynamic environments. The camera supports multiple simultaneous video outputs, including 3G-SDI, HDMI, USB-C, and IP, and offers advanced H.265 and H.264 encoding for smooth streaming, even under challenging bandwidth conditions.

Engineered for convenience and compatibility, the CV612-TBI features ±170° pan and ±90° tilt for flexible positioning and includes an IR remote control for quick setup and adjustments. It supports Dante AV-H with two audio channels and includes a stereo audio input with embedded audio on all video outputs. With support for a wide range of control protocols, including VISCA, Pelco-D, ONVIF, and VISCA-over-IP, the camera is adaptable to different workflows. Its compact size and quiet operation make it suitable for boardrooms, classrooms, houses of worship, and more, while its robust performance and AI-driven features make it an exceptional choice for professional use.

Advanced Image Capturing
  • AI-powered auto-track, follow, and frame with facial recognition technology
  • 1/2.8”, 2.07MP HD CMOS sensor
  • 1080p60 full HD resolution with vivid color depth
  • 12x optical zoom and 8x digital zoom
  • Advanced noise-reduction technology for sharp, low-noise images
  • Supports H.265 and H.264 compression
  • ±170° pan and ±90° tilt, 6.6 to 70.3° horizontal angle of view
Connectivity and Compatibility
  • 3G-SDI, HDMI, USB-C, and IP outputs
  • Supports Dante AV-H with two audio channels
  • Audio input via stereo 3.5mm jack with 48 kHz / 16-bit sampling
  • Compatible with VISCA, Pelco-D, ONVIF, and VISCA-over-IP control protocols
  • Includes IR remote and supports up to 255 presets with IP control
  • Simultaneous multi-output support when USB and SDI are set to the same frame rate
Write Your Own Review
You're reviewing:Marshall Electronics CV612-TBI Compact PTZ Camera with AI Auto-Framing (Black)
Your Rating

Items Included:

  • Marshall Electronics CV612-TBI Compact PTZ Camera with AI Auto-Framing (Black)
  • 12V Power Adapter
  • IR Remote Control
  • USB-C Cable
  • Limited 2-Year Manufacturer Warranty
More Information
SPECS
Key Specs
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Shutter Speed
1/10000 to 1/60 Second
Optical Zoom Ratio
12x
Max Digital Zoom
8x
External Recording Modes
SDI/BNC / HDMI
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
USB
1920 x 1080p at 25/30.00/50/60.00 fps
1280 x 720 at 25/30.00/50/60.00 fps
800 x 600 at 30.00 fps
720 x 576 at 30.00 fps
960 x 540 at 30.00 fps
720 x 480 at 30.00 fps
640 x 480 at 30.00 fps
Broadcast Output
NTSC/PAL
Imaging
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2.07 Megapixel
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/10000 to 1/60 Second
Signal-to-Noise Ratio
50 dB
Minimum Illumination
0.5 Lux
Flip / Mirror Support
Image Flip
White Balance
Presets: Auto, Manual, One Push, VAR
Range: 2400 to 7100K
Lens
Focal Length
4.13 to 49.2mm
Optical Zoom Ratio
12x
Max Digital Zoom
8x
Field of View
70.3 to 6.6°
Video Capture
External Recording Modes
SDI/BNC / HDMI
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
USB
1920 x 1080p at 25/30.00/50/60.00 fps
1280 x 720 at 25/30.00/50/60.00 fps
800 x 600 at 30.00 fps
720 x 576 at 30.00 fps
960 x 540 at 30.00 fps
720 x 480 at 30.00 fps
640 x 480 at 30.00 fps
Embedded Audio
HDMI/SDI/USB
Audio Recording
16-Bit 48 kHz AAC Audio
Broadcast Output
NTSC/PAL
Packaging Info
Package Weight
5.55 lb
Box Dimensions (LxWxH)
13.9 x 10.4 x 9"
