Marshall Electronics CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (White)

SKU
CV620-WH4
image-icon
$1,799.00
Add to Wish List Add to Compare
Email

Product Highlights:

  • Capture up to 1080p60 Video
  • 2MP 1/2.8" Sensor, 5.3 to 110mm Lens
  • 20x Optical Zoom, 12x Digital Zoom
  • 3G/HD-SDI and HDMI Outputs
  • IR, RS-232, and RS-422 Serial Control
  • 340° Pan, 120° Tilt

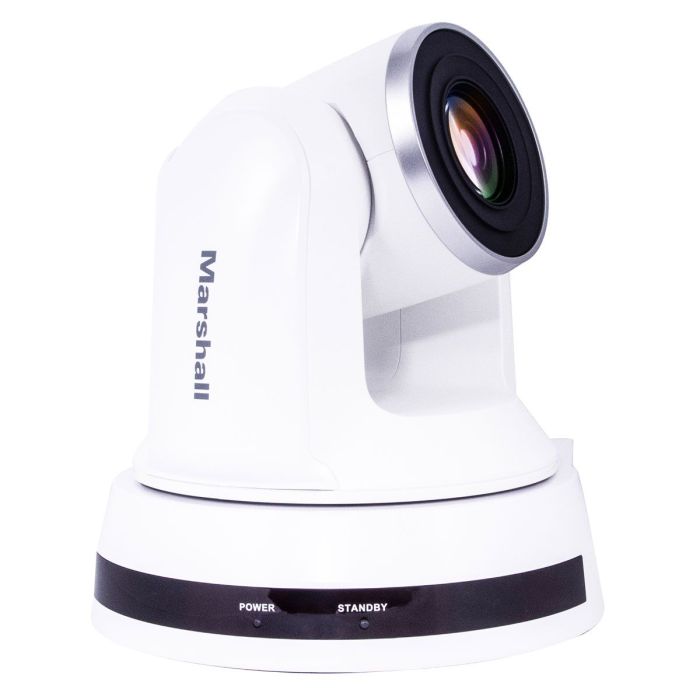

main product photo

The white CV620 3G-SDI/HDMI PTZ Camera from Marshall Electronics is designed for professional conferencing applications. It captures video at up to 1080p resolution and is equipped with a 5.3 to 110mm lens for up to 20x optical zoom, and it also features a 12x digital zoom.

The CV620 features 3G/HD-SDI and HDMI outputs that support up to 1920 x 1080p60 resolution video. You can control and manage the camera using an IR remote or its RS-232 and RS-422 inputs with Pelco and VISCA serial protocols. It's compatible with separately available camera controllers such as the Marshall VS-PTC-IP. The camera is built with a smooth and quiet synchronous PTZ motor that pans 340° and tilts 120°.

Write Your Own Review
You're reviewing:Marshall Electronics CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (White)
Your Rating

Items Included:

  • Marshall Electronics CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (White)
  • Remote Control
  • Power Adapter with Power Cord
  • RS-422 Connector
  • Ceiling Mount Kit
  • Limited 1-Year Warranty

CV620-WH4 - Specification

More Information
Image Sensor
Image Sensor:1-Chip 1/2.8" CMOS Sensor
Sensor Resolution:2.0 MP
Camera
Max Digital Zoom:12x
Flip / Mirror Support:Image Flip
Lens
Optical Zoom Ratio:20x
Focal Length:5.3 to 110mm
Maximum Aperture:f/1.6 to 3.8
Focus Control:Autofocus
Manual Focus
Video Output
Output Formats:SDI, HDMI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i at 25, 29.97, 30, 50, 59.94, 60 fps
1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps
Control
Move Speed:Pan: 5 to 300°/se
Movement Range:Pan: 340°
Tilt: 120
Supported Control Protocols:Pelco-D
Pelco-P
RS-232
RS-422
VISCA
Interfaces
Video Output Connectors:1 x BNC (3G-SDI / HD-SDI) Female
1 x HDMI Type A Female
Control Interface:1 x 8-Pin Mini-DIN (RS-232) Input
1 x 8-Pin Mini-DIN (RS-232) Output
1 x 9-Pin Terminal Block (RS-422) Input
Power
PoE Support:None
Power Connectors:1 x Barrel / Coaxia
General
Dimensions:7.33 x 7.3 x 6.85" / 186.2 x 185.5 x 174 m
Weight:4.41 lb / 2
Packaging Info
Package Weight:8.765 lb
Box Dimensions (LxWxH):12.5 x 10.5 x 10.5"
